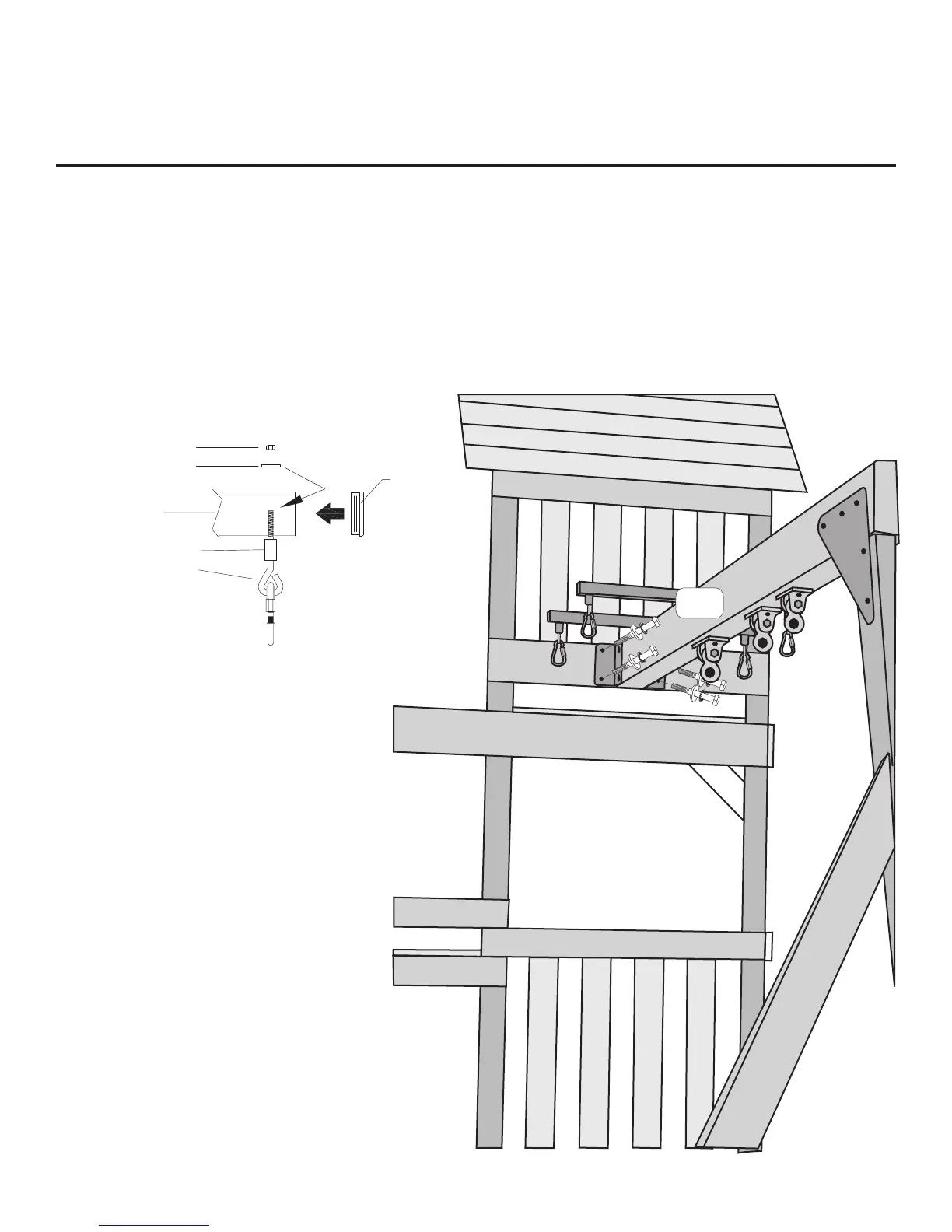

STEP 30
Attach Swing Beam assembly to G8 Swing Beam Mount using 5/16”x 1-1/4” Hex Bolt, 5/16” Lock Washers and Fender
Washers into Spike T-Nuts installed in earlier step.
Insert four swing hangers Z1(1 5/8”) bolts through Bushing then each hole at the end of each glider support. Secure each
swing hanger with a Fender Washer and 5/16” Lock Nut. Then install Glider Support Caps.
PAGE 49
A1
Hardware
Illustration:
Swing Hanger
Glider
Support
5/16” Lock Nut
Fender Washer
Glider
Caps
Swing Bushing
Swing Hanger
Note: Circular bend on swing
hanger must run parallel
with board.
ITEMS NEEDED
(4) Glider Caps X14
(4) Bushings Y28-G4
(4) Swing Hangers Z1
HARDWARE NEEDED
(4) 5/16” Lock Nuts
(4) 5/16” x 1 ¼” Hex Bolts
(8) Fender Washer
(4) 5/16” Lock Washer
To Next Page
