Backyard Discovery HILLCREST - Rock Wall Assembly

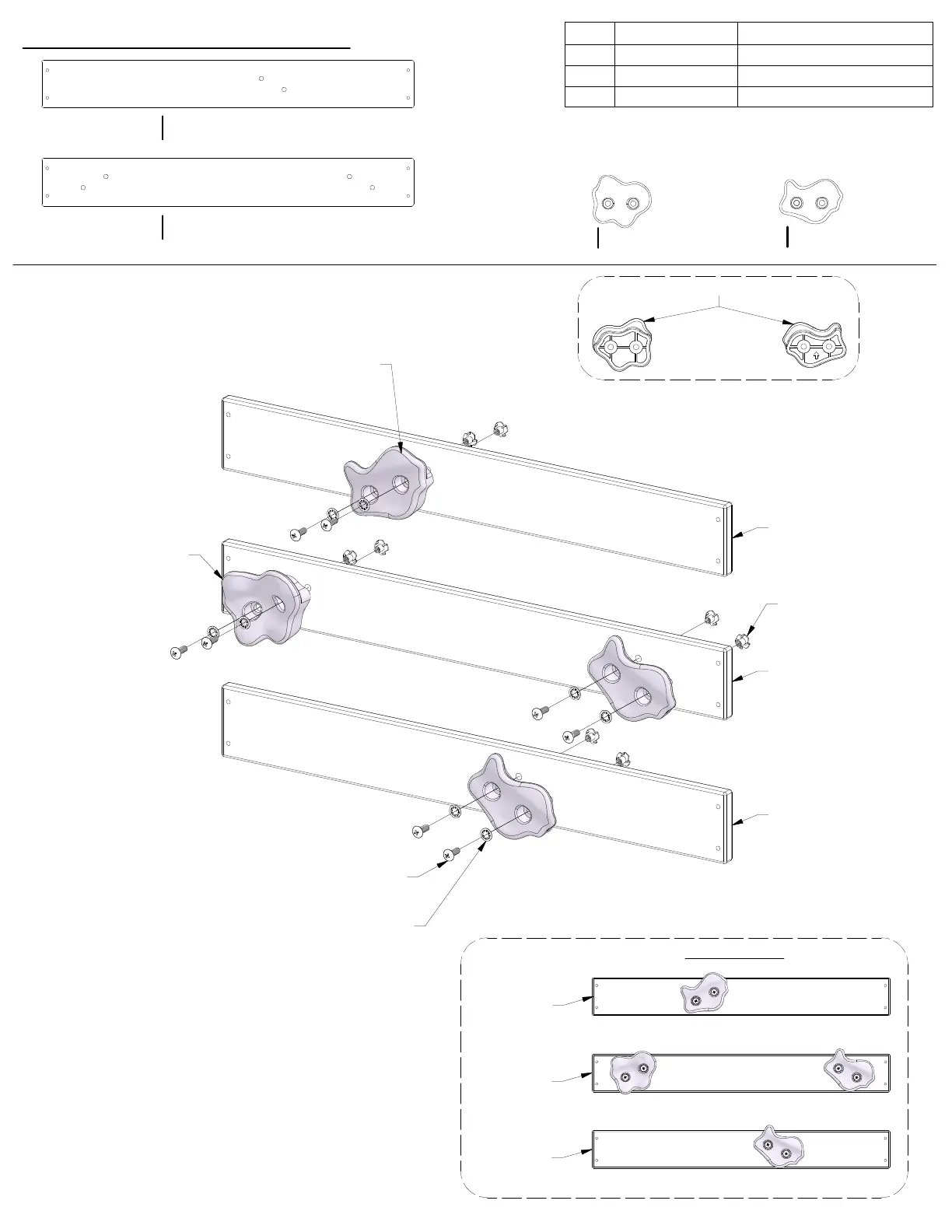

STEP 1 - ROCK WALL
QTY
PART NUMBER
DESCRIPTION
24
H100063
BOLT PTH 1/4x3/4
24 H100072 T-NUT 1/4
24
H100108
WASHER LOCK INT 8x15
072 (x24)
T-NUT - 1/4"
108 (x24)
WASHER - 8x15
063 (x24)
BOLT - 3/4"
M75 (x2)
M76 (x4)
M75 (x2)
TIP:
INSTALL T-NUTS IN WOOD FIRST
037 (x6)
GREEN HC ROCK #2
036 (x6)
GREEN HC ROCK #1
ROCK WALL BOARD - W4L16072
5/8"x3 3/8"x26 5/8" (16x86x675)
M75
(x4)
ROCK WALL BOARD - W4L16073
5/8"x3 3/8"x26 5/8" (16x86x675)
M76
(x4)
GREEN HC ROCK #1
(x6)
A6P00036
GREEN HC ROCK #2
(x6)
A6P00037
FRONT VIEW
M75LA (x2)
M76DA (x4)
M75RA (x2)
FINGER GRIPS UPWARD
20
