Backyard Discovery HILLCREST - Page 21

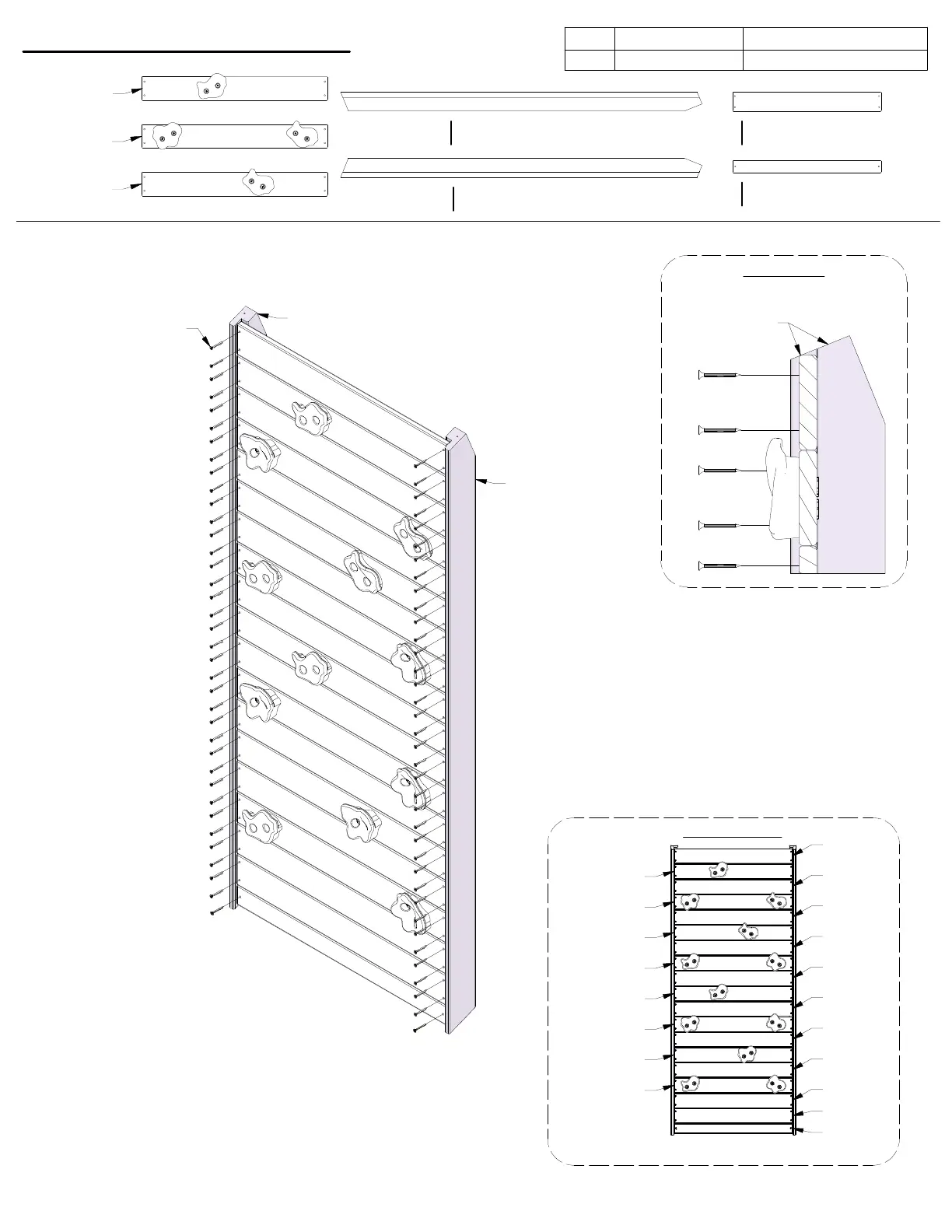

STEP 2 - ROCK WALL
QTY
PART NUMBER DESCRIPTION
74 H100086 SCREW PFH 8x1-1/2"
M75RA (x2)
M76DA (x4)
M75LA (x2)
M75LA (x1)
M75LA (x1)
M75RA (x1)
M75RA (x1)
M76DA (x1)
M76DA (x1)
M76DA (x1)
M76DA (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
M74 (x1)
N06 (x1)
E73 (x1)
E72 (x1)
LEFT RAIL - W4L16007
1 3/8"x3 3/8"x64 1/2" (36x86x1640)
E72
(x1)
RIGHT RAIL - W4L16008
1 3/8"x3 3/8"x64 1/2" (36x86x1640)
E73
(x1)
086 (x74)
SCREW - 1 1/2"
ROCK WALL BOARD - W4L16071
5/8"x3 3/8"x26 5/8" (16x86x675)
M74
(x10)
FILLER BOARD - W4L16089
5/8"x2 1/8"x26 5/8" (16x54x675)
N06
(x1)
FRONT VIEW
BOARD PLACEMENT
START HERE
FLUSH TOPS
SIDE VIEW
21
