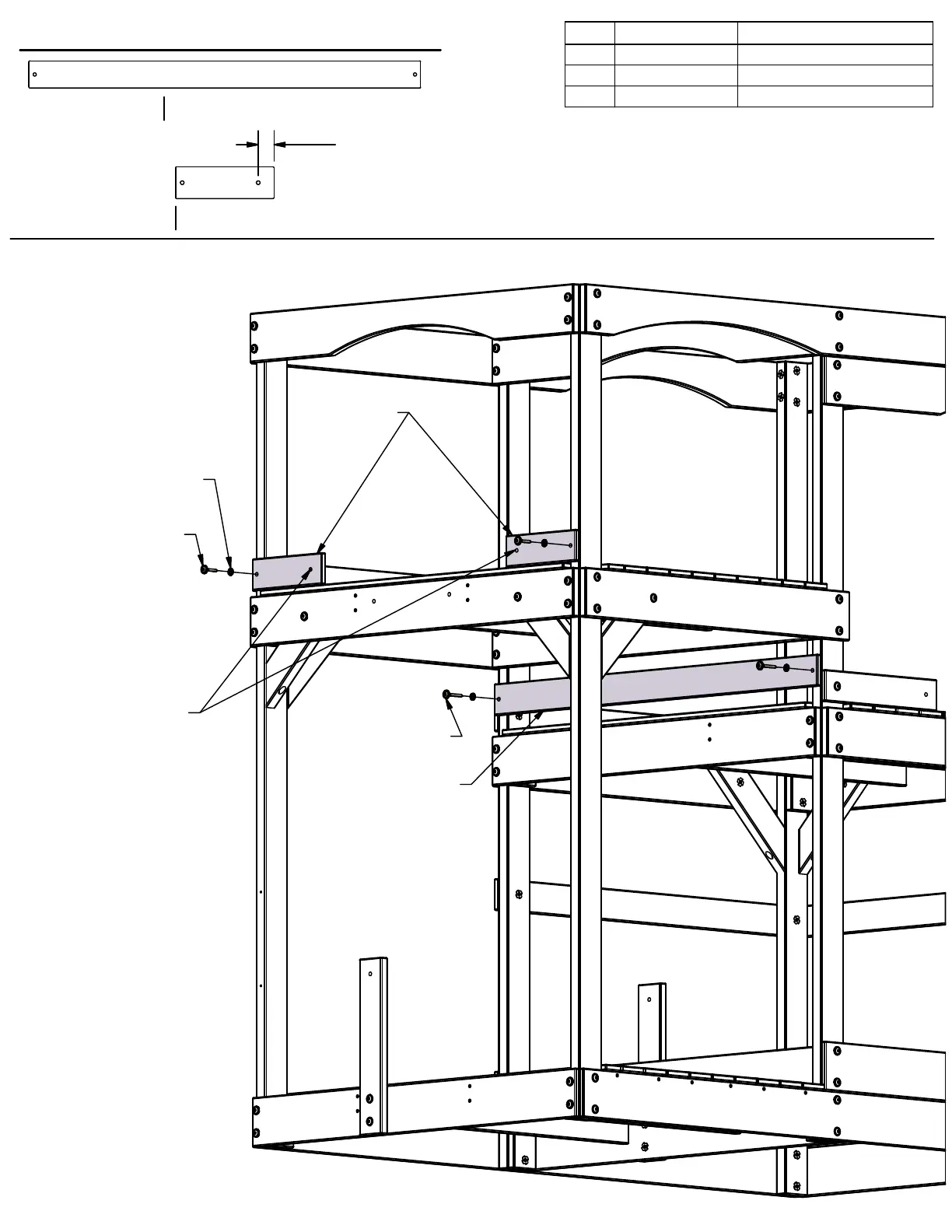

STEP 16 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
2
H100027
LAG SCREW WH 5/16x2
2 H100028 LAG SCREW WH 5/16x2 1/2
4
H100030
WASHER LOCK EXT 8x19
WALL RAIL - W4L16066
5/8"x3 3/8"x49" (16x86x1244)
M05
(x1)
WALL RAIL - W4L16057
5/8"x3 3/8"x10 1/2" (16x86x268)
M21
(x2)
M05 (x1)
M21 (x2)
027 (x2)
LAG SCREW - 2"
030 (x4)
WASHER - 8x19
1 3/4 in
[43
mm]
1 3/4 in
[43mm]
HOLES TO INSIDE
028 (x2)
LAG SCREW - 2 1/2"
45
