Backyard Discovery HILLCREST - Page 5

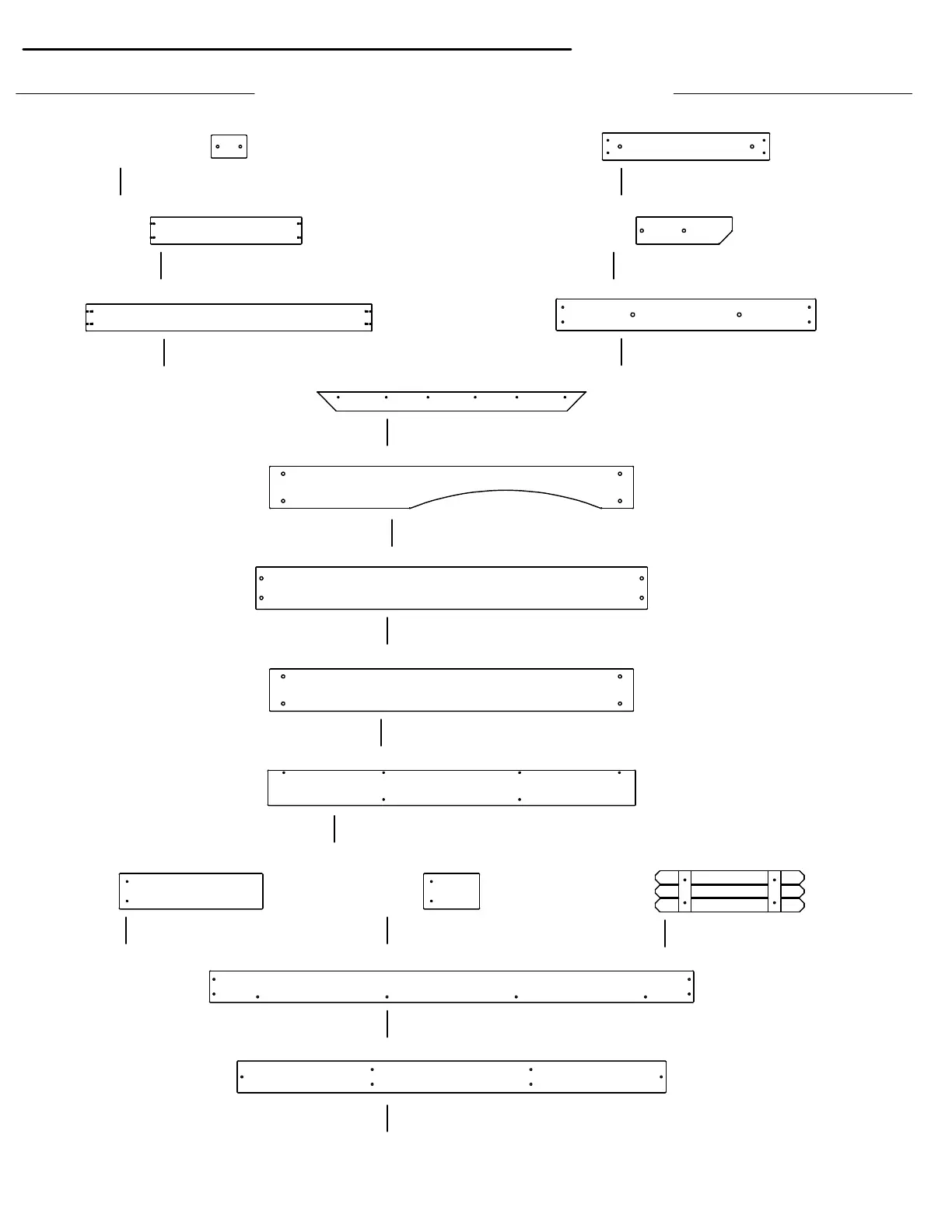

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
BOTTOM FLOOR BOARD SUPPORT - W4L16024
1"x3 3/8"x5 1/4" (24x86x134)
H05
(x10)
LADDER MOUNT - W4L16088
1"x3 3/8"x21" (24x86x532)
H06
(x1)
WALL RAIL - W4L16034
5/8"x5 1/4"x45 1/2" (16x134x1156)
K01
(x1)
TABLE SUPPORT - W4L16031
1"x3 3/8"x12" (24x86x306)
H08
(x2)
GROUND BOARD - W4L16038
5/8"x5 1/4"x45 1/2" (16x134x1156)
K03
(x2)
BASE/SAND BOX BOARD - W4L16035
5/8"x5 1/4"x49" (16x134x1244)
K02
(x3)
OUTSIDE FILLER FLOOR BOARD - W4L16039
5/8"x4 3/8"x46" (16x112x1168)
L01
(x3)
LADDER RUNG - W4L16030
15/16"x3 3/8"x18 7/8" (24x86x480)
H07
(x4)
ROOF RAFTER - W4L16033
1"x2 3/8"x33 5/8" (24x60x854)
J01
(x4)
WALL BOARD - W4L16040
5/8"x4 3/8"x18" (16x112x456)
L02
(x4)
WALL BOARD - W4L16041
5/8"x4 3/8"x7" (16x112x178)
L03
(x4)
WINDOW SHUTTER - W4L16042
5/8"x4 3/8"x16" (16x112x406)
L04
(x3)
FLOOR BOARD - W4L16055
5/8"x3 3/8"x46" (16x86x1168)
M02
(x1)
ROOF CAP - W4L16043
5/8"x3 3/8"x51 7/8" (16x86x1318)
M01
(x2)
ATTACHMENT BOARD - W4L16045
1"x3 3/8"x27 7/8" (24x86x707)
H10
(x1)
FLOOR JOIST - W4L16032
1"x3 3/8"x35 3/4" (24x86x908)
H09
(x2)
5
