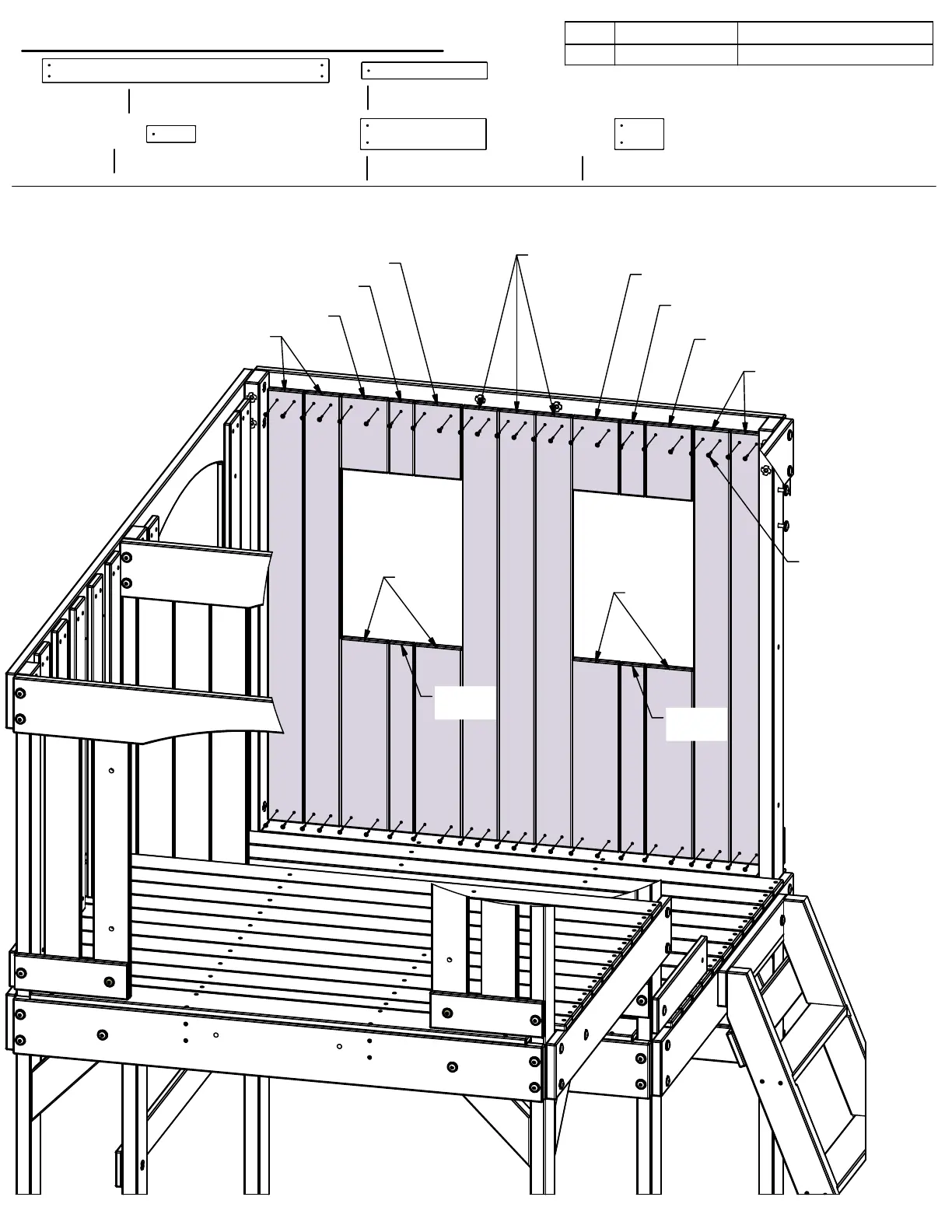

STEP 23 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
48 H100088
SCREW PFH 8x1-1/8"
N05 (x1)
L03 (x1)
M08 (x2)
L03 (x1)
M08 (x3)
L03 (x1)
N05 (x1)
L03 (x1)
M08 (x2)
L02 (x2)
N03 (x1)
L02 (x2)
N03 (x1)
088 (x48)
SCREW - 1 1/8"
FLUSH TOPS OF L03 & N05 BOARDS
WITH T
OP OF M08 BOARDS
WALL BOARD - W4L16041
5/8"x4 3/8"x7" (16x112x178)
L03
(x4)
WALL BOARD - W4L16040
5/8"x4 3/8"x18" (16x112x456)
L02
(x4)
WALL BOARD - W4L16080
5/8"x2 3/8"x7" (16x60x178)
N05
(x2)
WALL BOARD - W4L16078
5/8"x2 3/8"x18" (16x60x456)
N03
(x2)
WALL BOARD - W4L16074
5/8"x3 3/8"x41" (16x86x1040)
M08
(x7)
