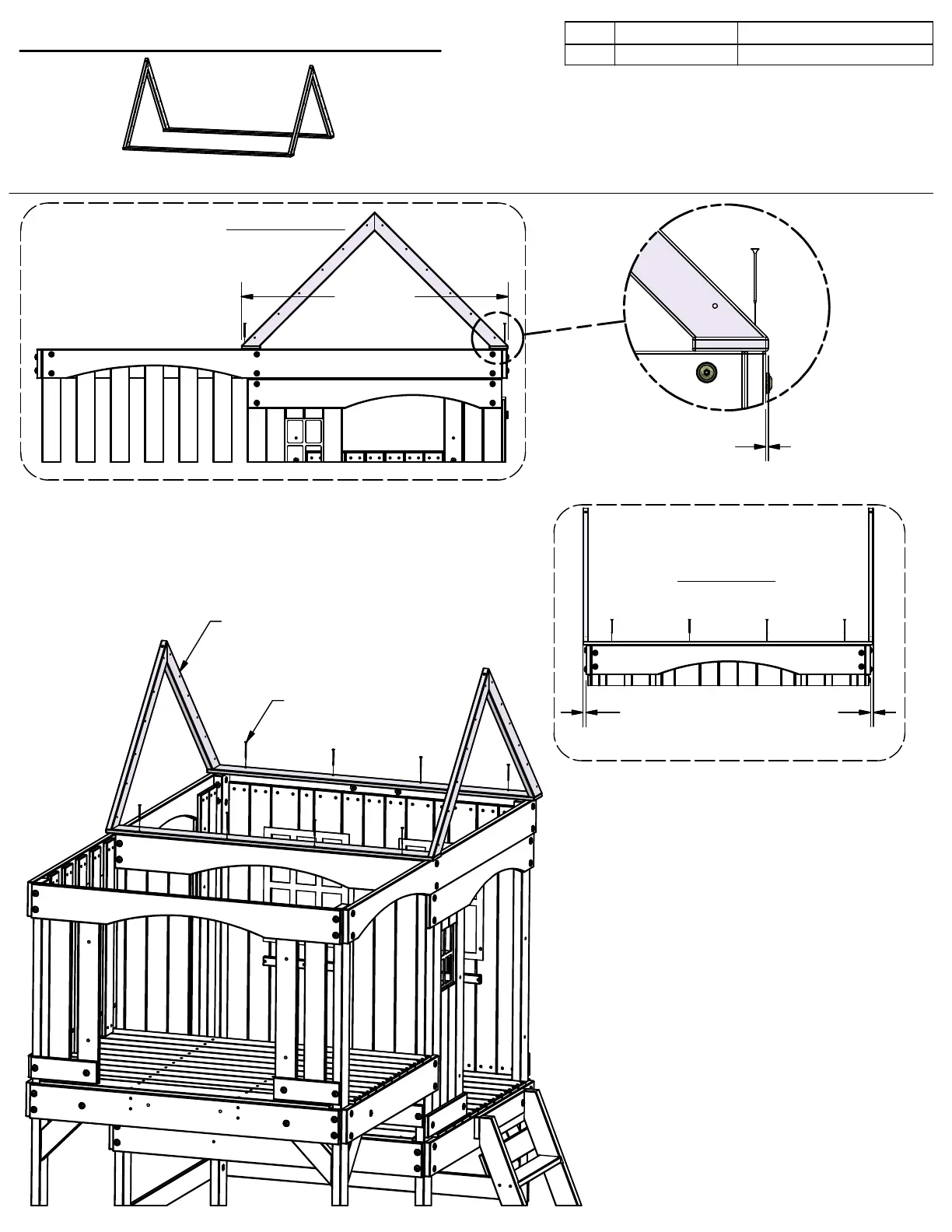

ROOF BASE ASSEMBLY
ROOF BASE ASSEMBLY
47 5/8 in
[1210 mm]
STEP 29 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
8 H100090
SCREW PFH 8x2 1/2
1/8 in
[3 mm]
CORRECT BOARD ASSEMBLY
SIDE VIEW
FRONT VIEW
1/2 in
[13 mm]
1/2 in
[13 mm]
090 (x8)
SCREW - 2 1/2"
CORRECT BOARD ASSEMBLY
58
