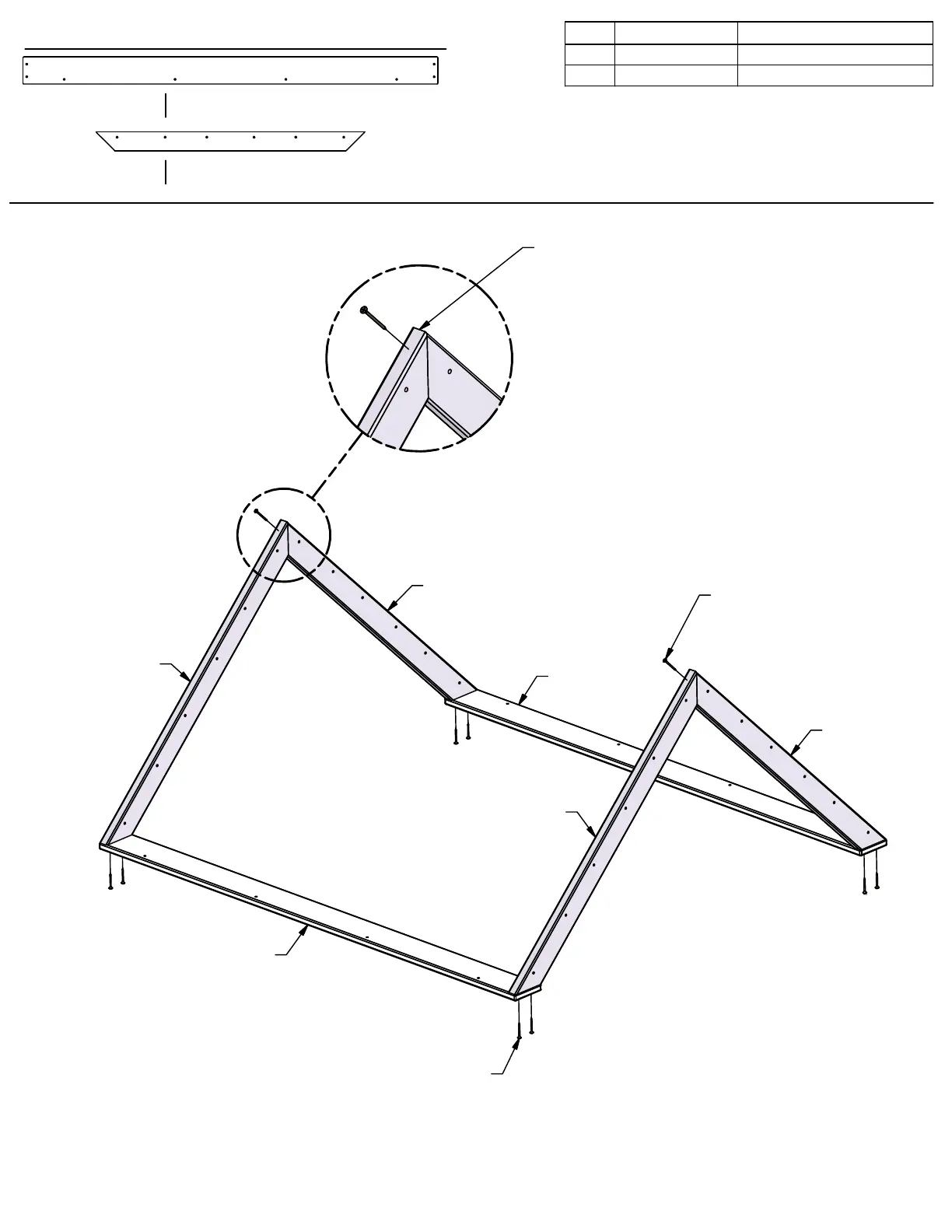

Backyard Discovery HILLCREST - Step 28: Assembling the Roof Structure

LOCATE SCREW
APPROXIMATELY
1" DOWN FROM
ROOF PEAK,
PRE-DRILL
USING 3/16" BIT
STEP 28 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
8 H100086
SCREW PFH 8x1-1/2"
2 H100111 SCREW PFH 8x2
M01 (x1)
J01 (x1)
J01 (x1)
J01 (x1)
J01 (x1)
M01 (x1)
086 (x8)
SCREW - 1 1/2"
111 (x2)
SCREW - 2"
ROOF CAP - W4L16043
5/8"x3 3/8"x51 7/8" (16x86x1318)
M01
(x2)
ROOF RAFTER - W4L16033
1"x2 3/8"x33 5/8" (24x60x854)
J01
(x4)
