Backyard Discovery HILLCREST - Step 31: Attaching Gable Boards

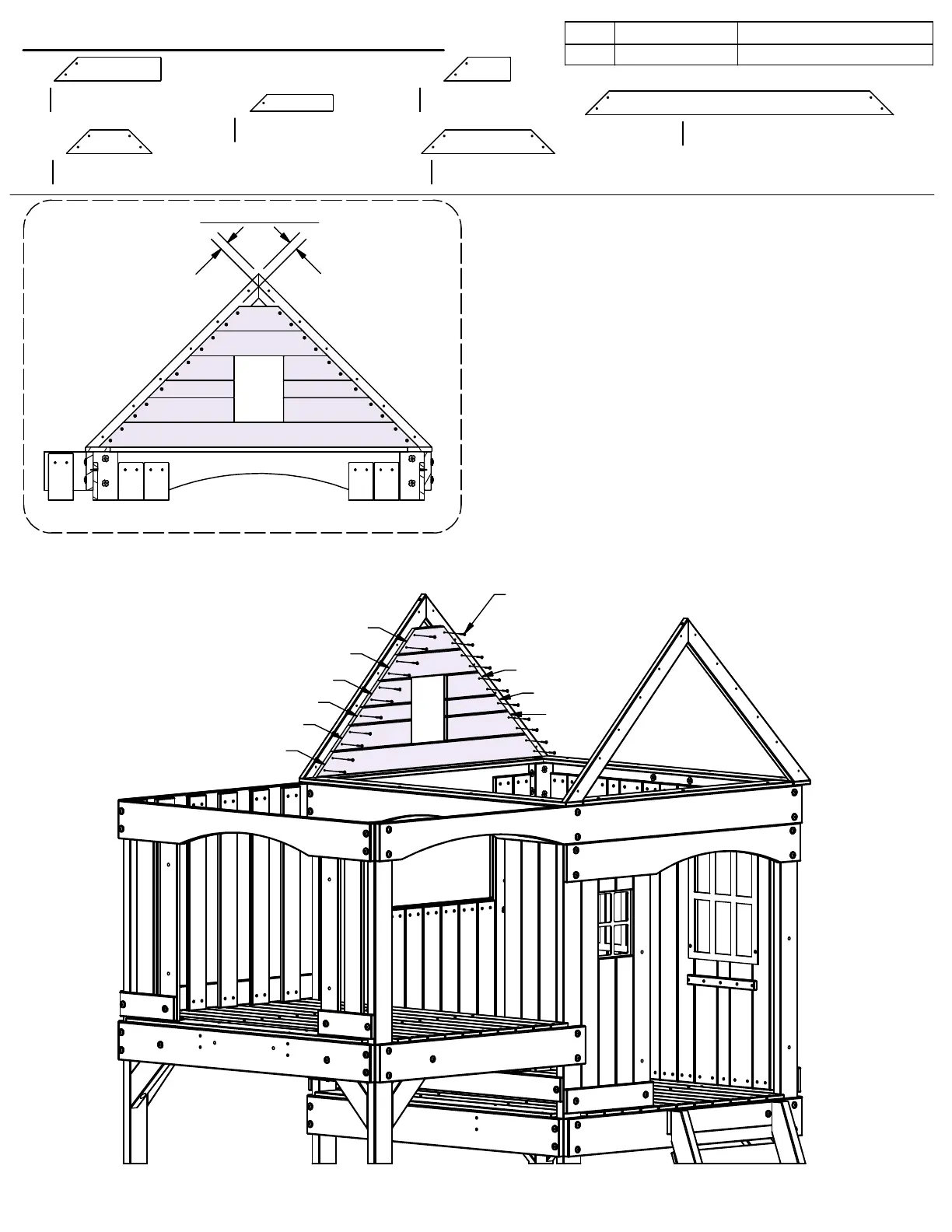

STEP 31 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
44
H100088
SCREW PFH 8x1-1/8"
GABLE BOARD - W4L16058
5/8"x3 3/8"x9 1/2" (16x86x241)
M22
(x4)
GABLE BOARD - W4L16079
5/8"x2 3/8"x11 7/8" (16x60x301)
N04
(x4)
GABLE BOARD - W4L16054
5/8"x3 3/8"x15 1/4" (16x86x387)
M19
(x4)
GABLE BOARD - W4L16065
5/8"x3 3/8"x44" (16x86x1118)
M04
(x2)
GABLE BOARD - W4L16056
5/8"x3 3/8"x12 1/4" (16x86x310)
M20
(x2)
GABLE BOARD - W4L16051
5/8"x3 3/8"x19" (16x86x482)
M15
(x2)
088 (x22)
SCREW - 1 1/8"
CORRECT BOARD ASSEMBLY
FRONT VIEW
1 1/4 in
[32 mm]
1 1/4 in
[32 mm]
M04 (x1)
M19 (x1)
M19 (x1)
N04 (x1)
M22 (x1)
M15 (x1)
M20 (x1)
N04 (x1)
M22 (x1)
60
