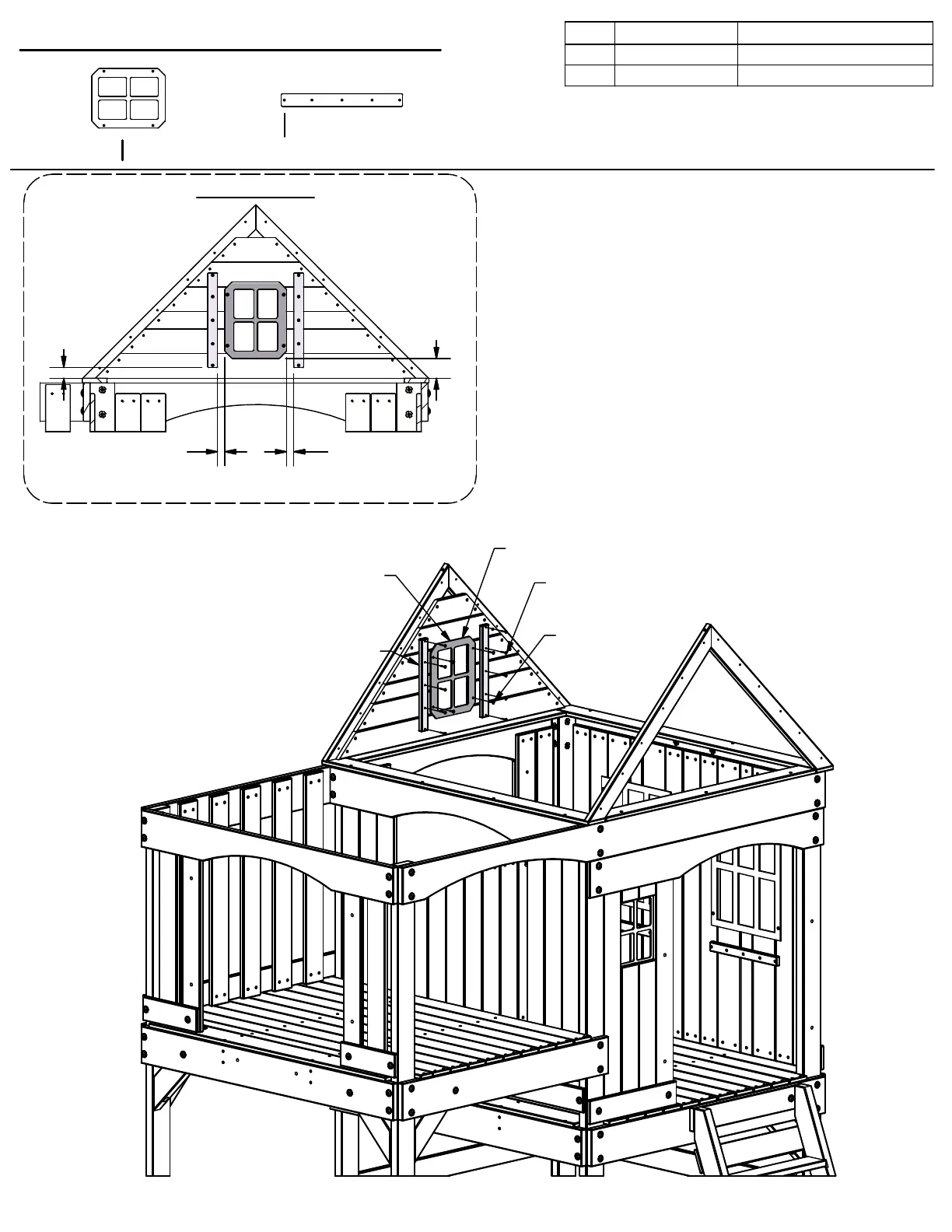

STEP 32 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
8 H100070
SCREW PWH 8x3/4
20 H100088 SCREW PFH 8x1-1/8"
WINDOW
216x267 GREEN
(x2)
A100146
WALL SUPPORT - W4L16081
5/8"x1 3/8"x13" (16x34x330)
O01
(x4)
FRONT VIEW
CORRECT ASSEMBLY
CENTER WINDOW IN OPENING
1 in
[25 mm]
1 in
[25 mm]
2 3/4 in
[69 mm]
1 1/2 in
[37 mm]
O01 (x2)
146 (x1)
WINDOW 216x267 GREEN
088 (x10)
SCREW - 1 1/8"
070 (x4)
SCREW - 8x3/4"
REPEAT STEPS 31 & 32 ON THE
OPPOS
ITE SIDE.
