Backyard Discovery MALIBU - Upper Frame and Rail Assembly

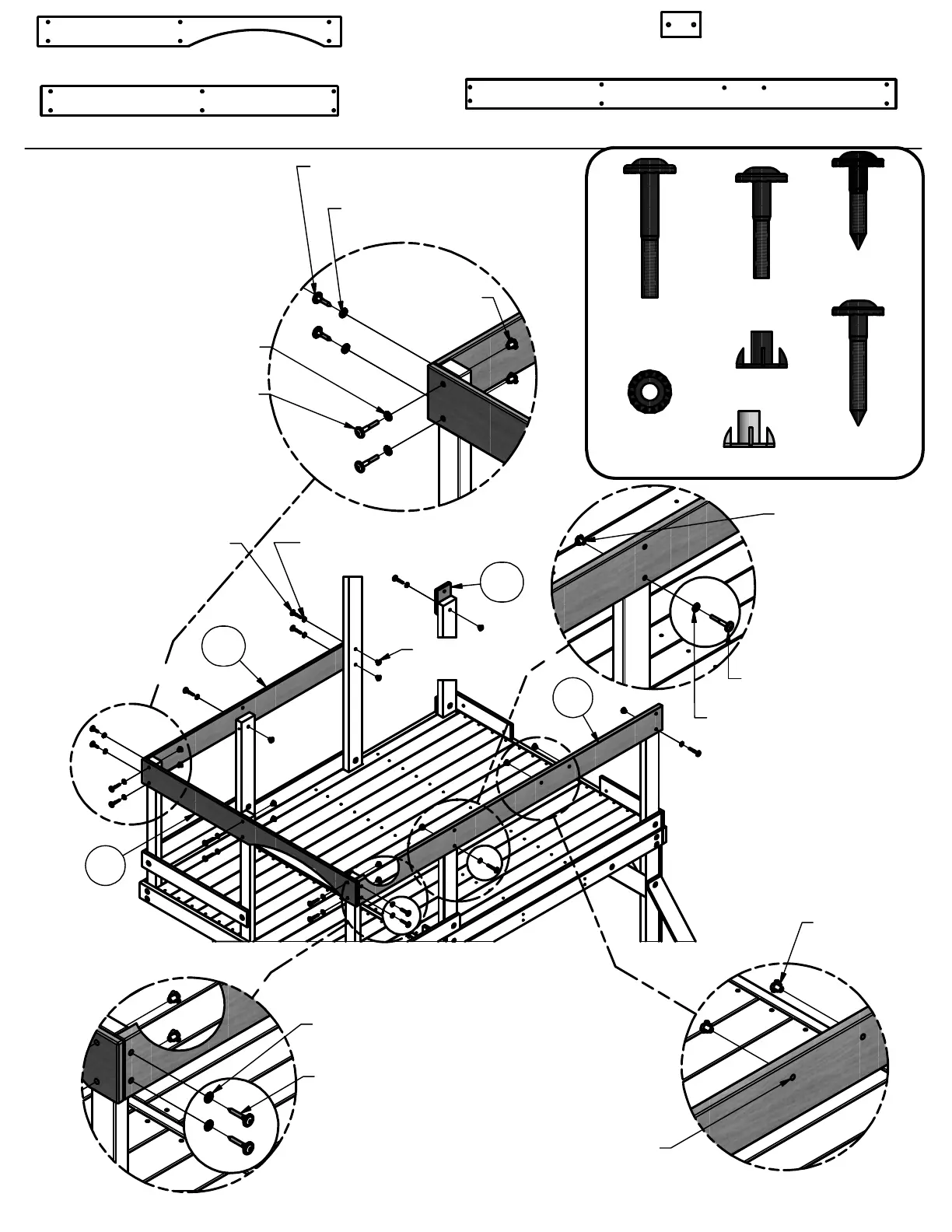

STEP 71
FRONT
WASHER
LOCK EXT
8x19 BLK
(16)
LAG SCREW
WH 5/16x1-1/2
BLK
(2)
BOLT WH
5/16x1 3/4
BLK
(10)
T-NUT 5/16
BLK
(12)
T-NUT 5/16 BLK
(6 PLCS)
BOLT WH 5/16x2 BLK
(6 PLCS)
WASHER LOCK EXT 8x19 BLK
(6 PLCS)
LAG SCREW WH 5/16x1-1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
T-NUT 5/16
(2 PLCS)
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
LAG SCREW WH 5/16x2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
T-NUT 5/16 BLK
(2 PLCS)
LAG SCREW
WH 5/16x2
BLK
(2)
BOLT WH
5/16x2-1/4
BLK
(2)
K11
K10
K8
G1
T-NUT 5/16 (2)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
T-NUT 5/16 BLK
(4 PLCS)
K11 - WALL RAIL - W4L06470
5/8"x5 1/4"x3 3/8" (16x134x86)

K10 - WALL RAIL - W4L06462
5/8"x5 1/4"x53" (16x134x1346)

K8 - ARCHED WALL RAIL - W4L06460
5/8"x5 1/4"x54 1/8" (16x134x1375)

G1 - WALL RAIL - W4L06469
1"x5 1/4"x76 7/8" (24x134x1952)

119
