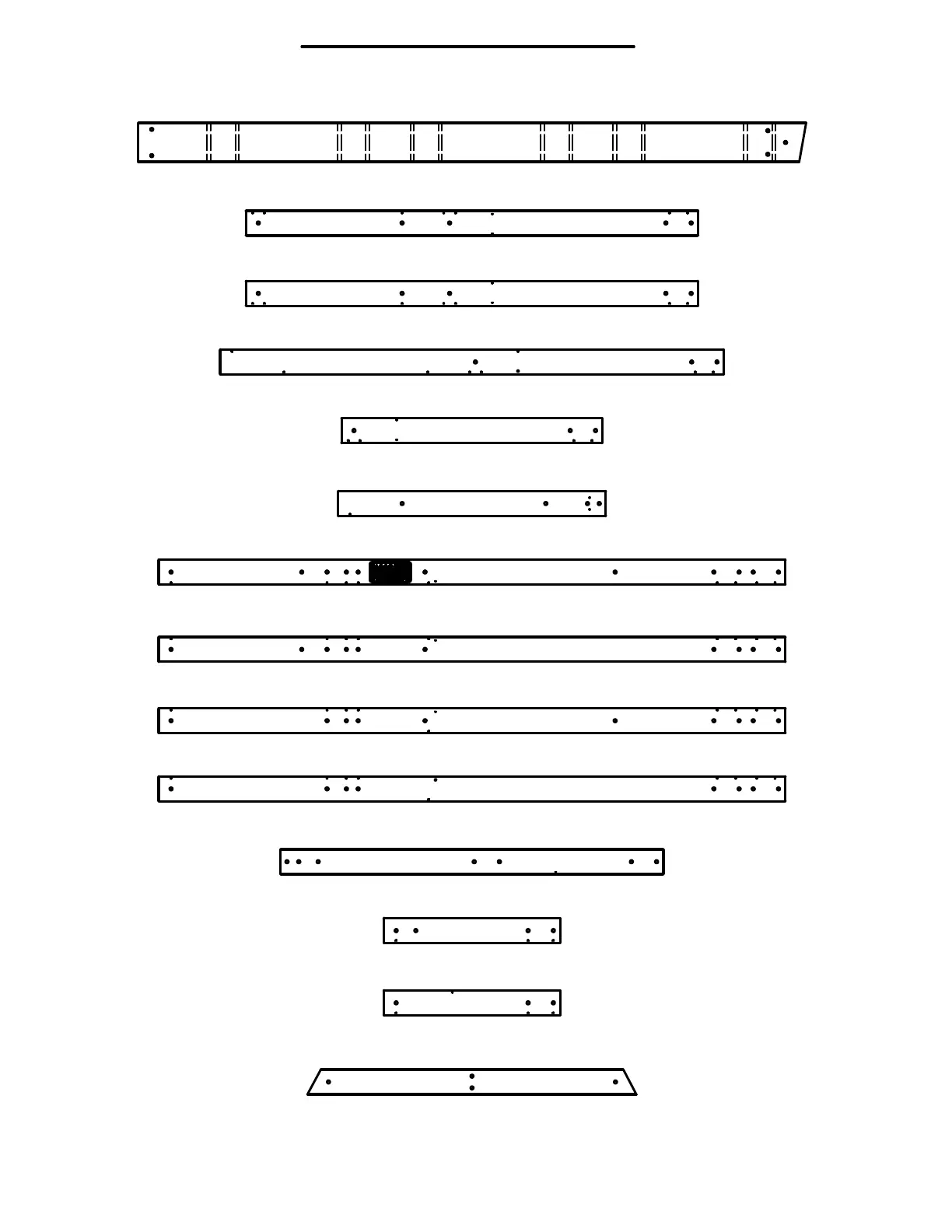

Parts Identification
Wood Components
(NOT TO SCALE)
A50 - SWING BEAM - W4L06616
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
E1 - LEFT FRONT UPRIGHT - W4L06385
1 3/8"x3 3/8"x60 5/8" (36x86x1540)
E2 - RIGHT FRONT UPRIGHT - W4L06386
1 3/8"x3 3/8"x60 5/8" (36x86x1540)
E3 - RIGHT REAR UPRIGHT - W4L06387
1 3/8"x3 3/8"x67 1/2" (36x86x1715)
E4 - LEFT REAR UPRIGHT - W4L06388
1 3/8"x3 3/8"x35" (36x86x889)
E5 - RAIL UPRIGHT - W4L06398
1 3/8"x3 3/8"x35 7/8" (36x86x912)
E6 - FRONT RIGHT UPRIGHT - W2A01933
1 3/8"x3 3/8"x84" (36x86x2135)
E7 - FRONT LEFT UPRIGHT - W4L06425
1 3/8"x3 3/8"x84" (36x86x2135)
E8 - REAR RIGHT UPRIGHT - W4L06426
1 3/8"x3 3/8"x84" (36x86x2135)
E9 - FRONT RIGHT UPRIGHT - W4L06427
1 3/8"x3 3/8"x84" (36x86x2135)
E10 - FORT UPRIGHT - W4L06455
1 3/8"x3 3/8"x51 3/8" (36x86x1305)
E11 - RIGHT FORT UPRIGHT - W4L06475
1 3/8"x3 3/8"x23 3/4" (36x86x602)
E12 - LEFT FORT UPRIGHT - W4L06476
1 3/8"x3 3/8"x23 3/4" (36x86x602)
E50 - END SUPPORT - W4L06615
1 3/8"x3 3/8"x44 1/8" (36x86x1120)
14
