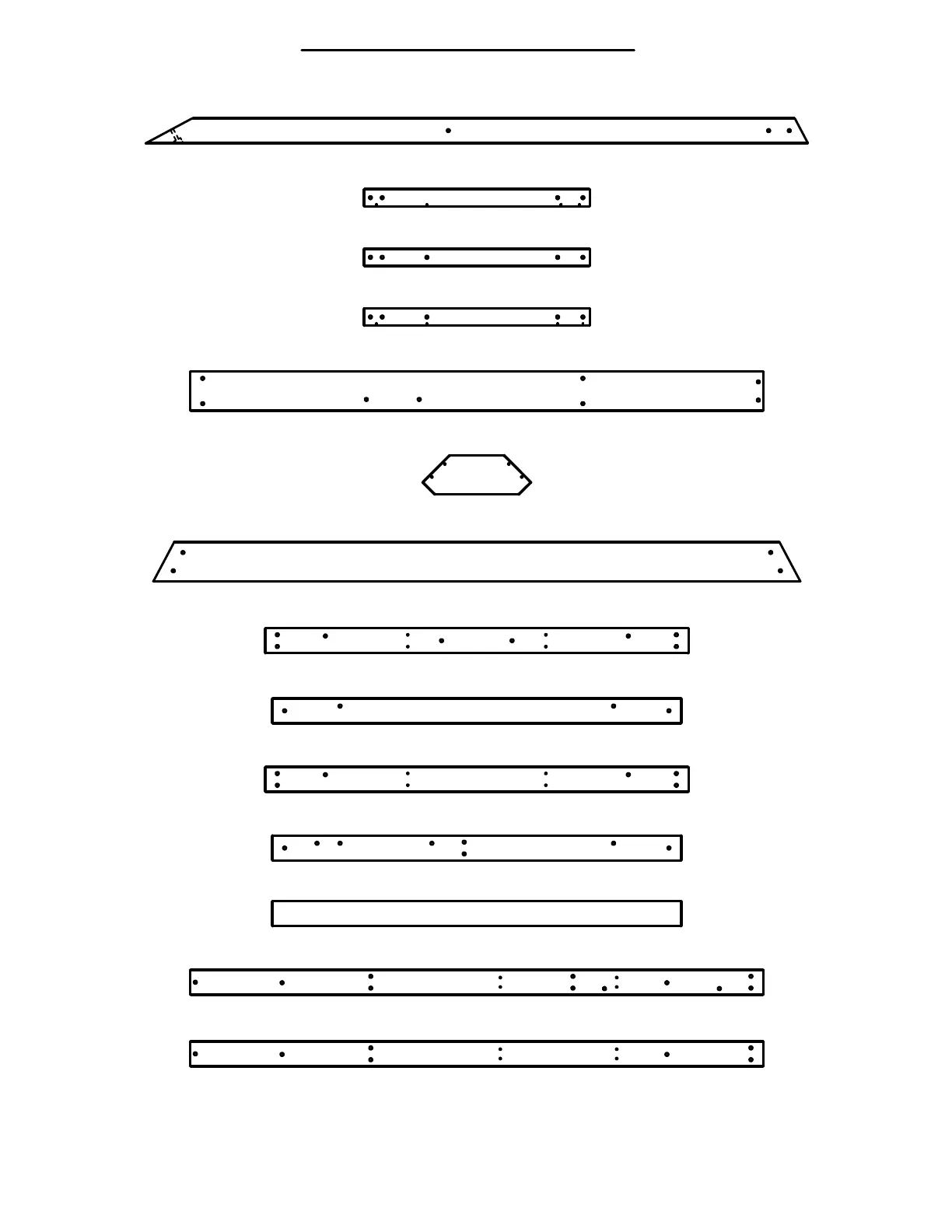

Parts Identification
Wood Components
(NOT TO SCALE)
E51 - ANGLE BRACE - W4L06614
1 3/8"x3 3/8"x88 3/4" (36x86x2254)

F1 - RIGHT DECK UPRIGHT - W4L06440
1 3/8"x2 3/8"x30 3/8" (36x60x770)

F2 - DECK UPRIGHT - W4L06441
1 3/8"x2 3/8"x30 3/8" (36x60x770)

F3 - LEFT DECK UPRIGHT - W4L06445
1 3/8"x2 3/8"x30 3/8" (36x60x770)

G2 - SANDBOX SEAT - W4L06433
1"x5 1/4"x14 5/8" (24x134x370)

G1 - WALL RAIL - W4L06469
1"x5 1/4"x76 7/8" (24x134x1952)

G50 - GROUND BOARD - W4L06613
1"x5 1/4"x86 3/4" (24x134x2202)

H1 - FLOOR RAIL - W4L06391
1"x3 3/8"x56 3/4" (24x86x1442)

H2 - FLOOR RAIL - W4L06392
1"x3 3/8"x54 7/8" (24x86x1394)

H3 - FLOOR RAIL - W4L06395
1"x3 3/8"x56 3/4" (24x86x1442)

H4 - FLOOR RAIL - W4L06396
1"x3 3/8"x54 7/8" (24x86x1394)

H5 - FLOOR SUPPORT - W4L06399
1"x3 3/8"x54 7/8" (24x86x1394)

H6 - FLOOR RAIL - W4L06435
1"x3 3/8"x76 7/8" (24x86x1952)

H7 - FLOOR RAIL - W4L06436
1"x3 3/8"x76 7/8" (24x86x1952)

