Backyard Discovery MALIBU - Page 22

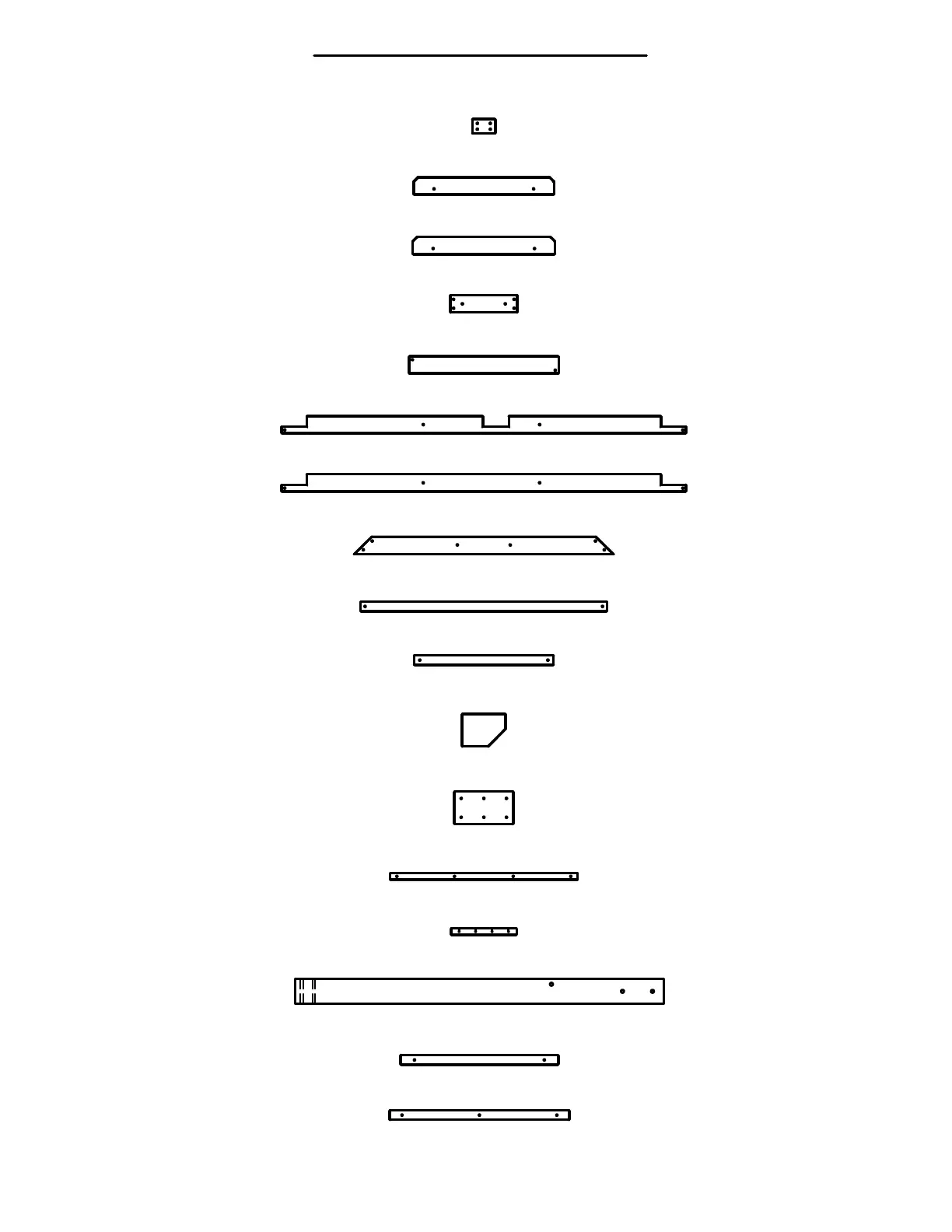

Parts Identification
Wood Components
(NOT TO SCALE)
N1 - TIE STRAP - W4L05043
5/8”x2”x3 1/8” (16x50x80)

N2 - REAR WINDOW SHELF - W4L06414
5/8"x2 3/8"x18 7/8" (16x60x479)

N3 - LEFT WINDOW SHELF - W4L06415
5/8"x2 3/8"x19 1/8" (16x60x485)

N4 - SEAT CLEAT - W4L06419
5/8"x2 3/8"x9" (16x60x230)

N5 - FLOOR BOARD - W4L06451
5/8"x2 3/8"x20 1/8" (16x60x510)

N6 - FLOOR BOARD - W4L06456
5/8"x2 3/8"x54 1/4" (16x60x1379)

N7 - FLOOR BOARD - W4L06457
5/8"x2 3/8"x54 1/4" (16x60x1379)

N8 - GABLE BOARD - W4L06558
5/8"x2 3/8"x34 3/4" (16x60x884)

O1 - PICKET - W4L06623
5/8"x1 3/8"x33 1/8" (16x34x840)

O2 - PICKET - W4L06407
5/8"x1 3/8"x18 3/4" (16x34x476)

Q1 - COUNTER TOP SUPPORT - W4L06416
1"x4 3/8"x5 7/8" (24x112x150)

Q2 - SANDBOX SEAT SUPPORT - W4L06434
1"x4 3/8"x8" (24x112x202)

S1 - RAIL BOARD - W4L06408
1"x1"x25 1/4" (24x24x640)

S2 - CORNER BOARD - W4L06424
1"x1"x8 7/8" (24x24x224)

SP50 - SWING BEAM SUPPORT - W4L06617
3 3/8"x3 3/8"x49 3/8" (86x86x1254)

T1 - SUPPORT BOARD - W4L06442
1"x1 3/8"x21 1/8" (24x34x538)

T2 - SUPPORT BOARD - W4L06443
1"x1 3/8"x24 1/8" (24x34x613)

22
