Backyard Discovery MALIBU - Page 40

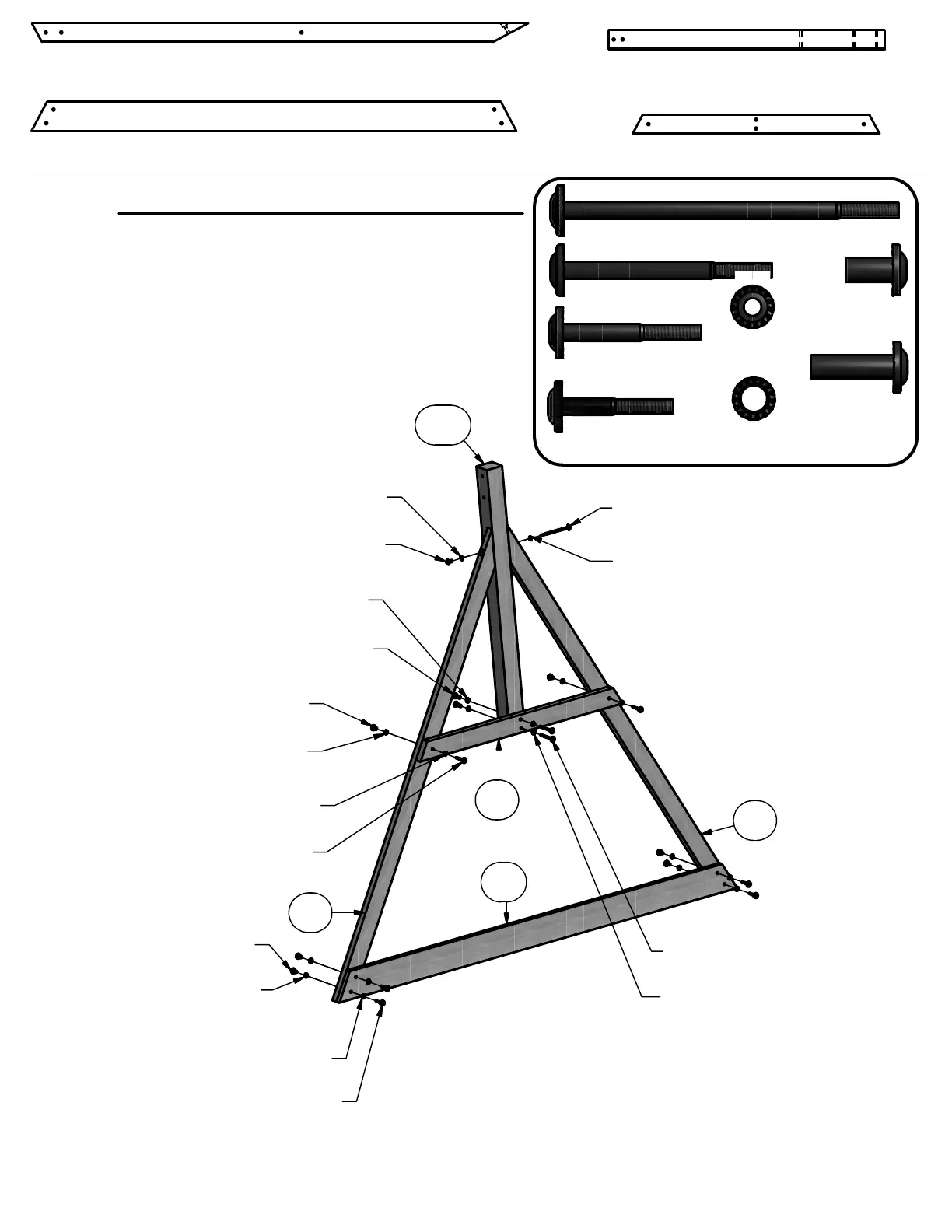

STEP 2
NUT BARREL WH 5/16x7/8 BLK
(1 PLC)
WASHER LOCK EXT 12x19 BLK
(1 PLC)
WASHER LOCK EXT 8x19 BLK
(1 PLC)
BOLT WH 5/16X6 BLK
(1 PLC)
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x2-1/2 BLK
(2 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x3 3/4 BLK
(2 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
SP50
E51
E51
E50
G50
5 FT SWING BEAM ASSEMBLY
E51 - ANGLE BRACE - W4L06614
1 3/8"x3 3/8"x88 3/4" (36x86x2254)

G50 - GROUND BOARD - W4L06613
1"x5 1/4"x86 3/4" (24x134x2202)

SP50 - SWING BEAM SUPPORT - W4L06617
3 3/8"x3 3/8"x49 3/8" (86x86x1254)

E50 - END SUPPORT - W4L06615
1 3/8"x3 3/8"x44 1/8" (36x86x1120)

BOLT WH
5/16X6 BLK
(1)
BOLT WH
5/16x3 3/4
BLK
(2)
BOLT WH
5/16x2-1/2
BLK
(2)
BOLT WH
5/16x2 BLK
(4)
NUT BARREL
WH 5/16x1-1/2
BLK
(2)
NUT BARREL
WH 5/16x7/8
BLK
(7)
WASHER
LOCK EXT
12x19 BLK
(9)
WASHER
LOCK EXT
8x19 BLK
(9)
