SLIDE ASSEMBLY
STEP 3

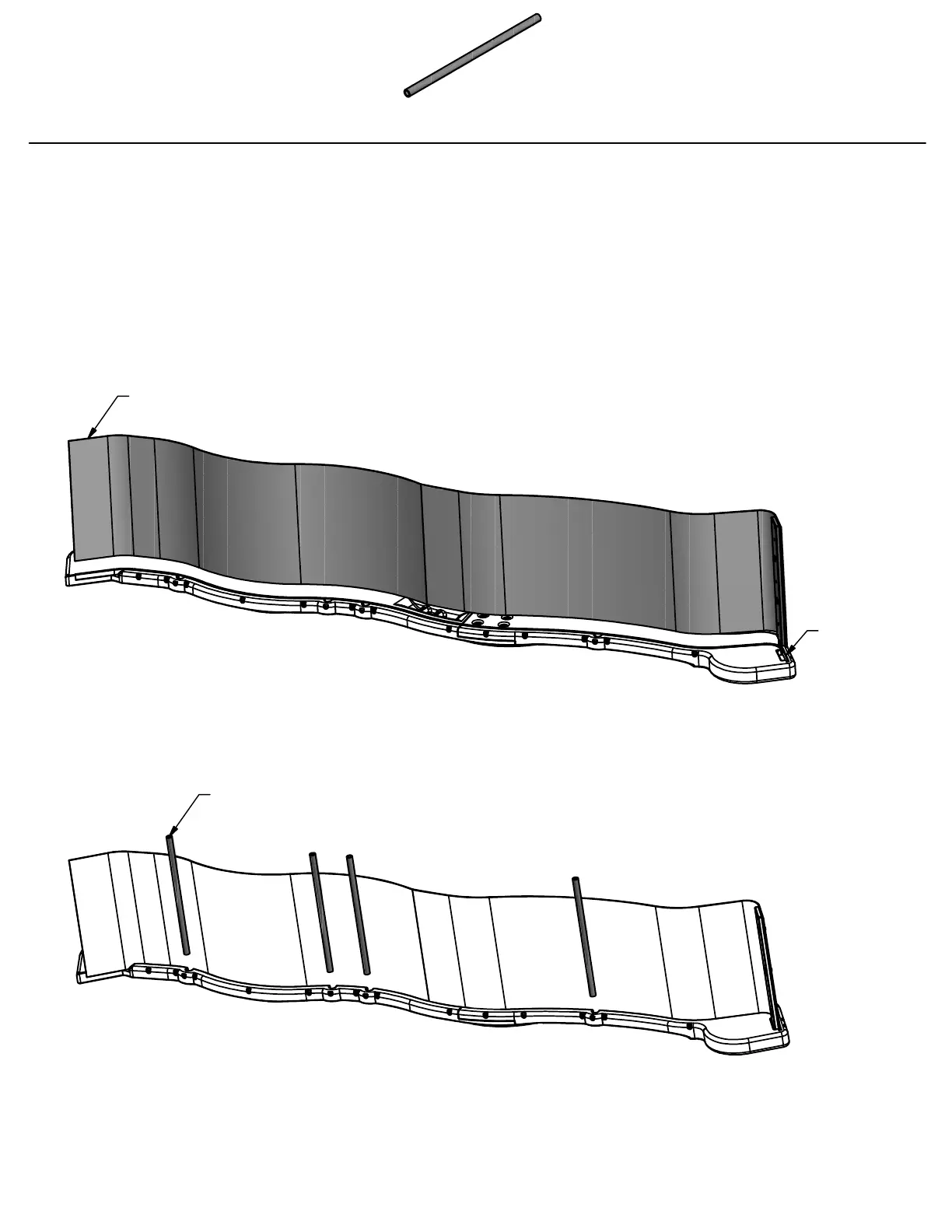

Ɣ PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). HAVE A
HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY. MAKE SURE SLIDE BED IS
COMPLETELY DOWN IN THE SLIDE CAVITY.
Ɣ INSTALL THE (4) SLIDE SUPPORT TUBES INTO THEIR RESPECTIVE PILOT LOCATIONS (FIG. 2).
SLIDE BED 10' YELLOW
SLIDE SUPPORT TUBE 21.34x505
3/&6
DW - SLIDE SUPPORT TUBE 21.34x505 - A100034
21.34 OD x 2.77 W x 505
),*
),*
67$57+(5(
47
