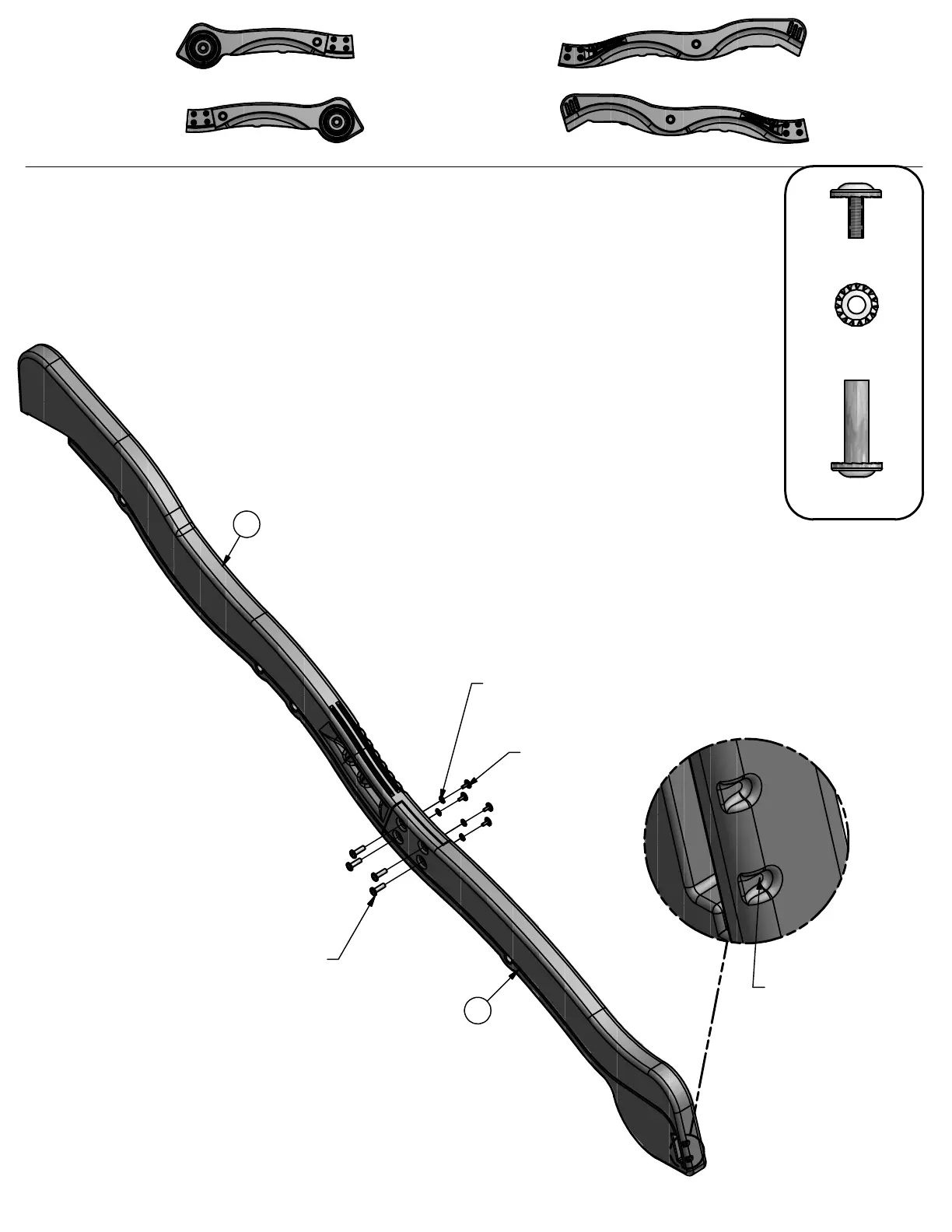

SLIDE ASSEMBLY
STEP 2
Ɣ REPEAT ON OTHER SIDE, MAKING A LEFT AND RIGHT ASSEMBLY.
BOLT WH 5/16x3/4
3/&6
WASHER LOCK EXT 8x19
3/&6
NUT BARREL WH 5/16x1 1/2
3/&6
Using an 1/8" drill bit,
Pilot drill all screw dimples
along the bottom and end
edge of the slide rails.
TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033

DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031

WASHER
LOCK EXT
8x19
(8)
NUT BARREL
WH 5/16x1 1/2
(8)
75
'6
BOLT WH
5/16x3/4
(8)
DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030

DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032

