Backyard Discovery MALIBU - Playhouse Frame and Deck Assembly; Base Structure and Floor Rails

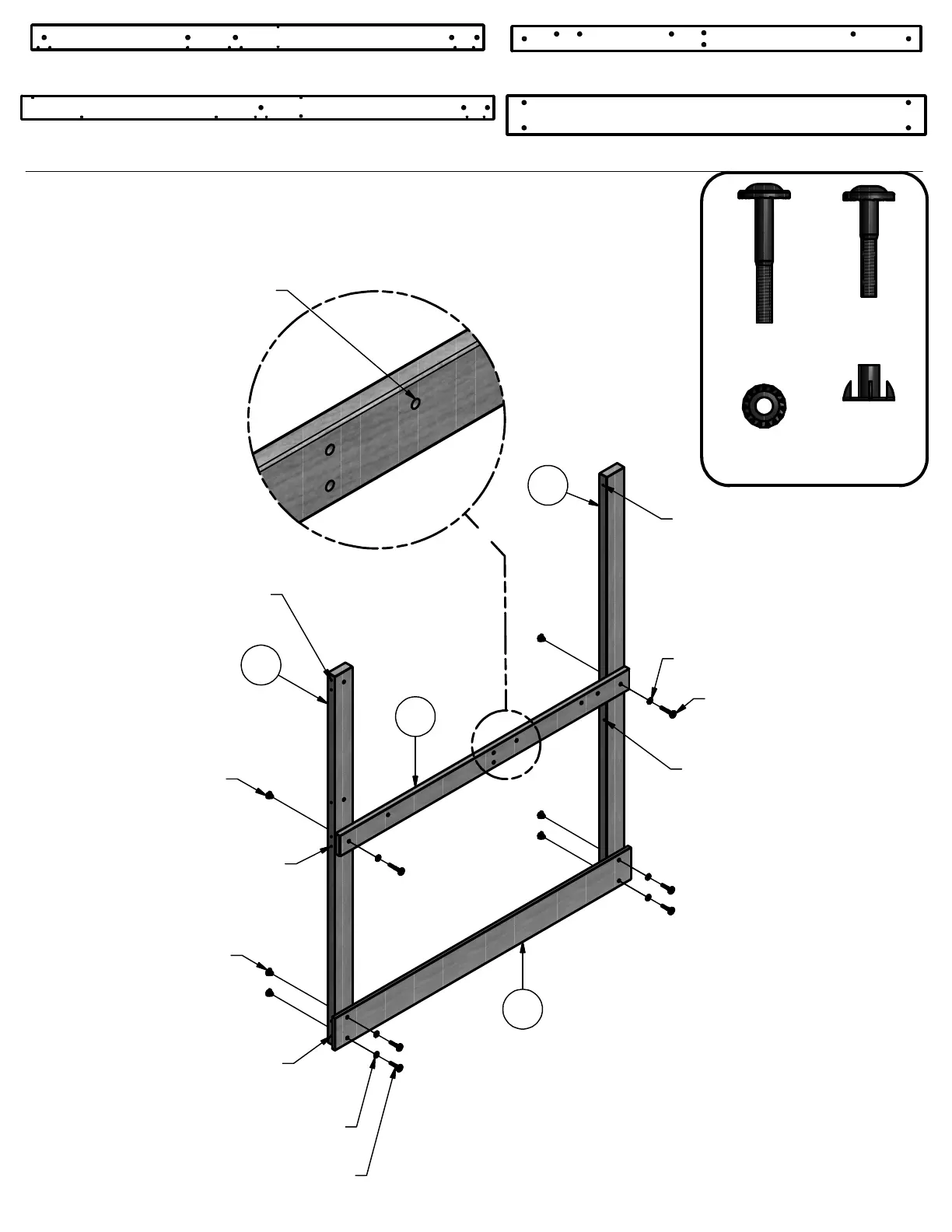

STEP 1
T-NUT 5/16 BLK
(2 PLCS)
T-NUT 5/16 BLK
(4 PLCS)
BOLT WH 5/16x1 3/4 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
E2
E3
H4
K2
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
E2 - RIGHT FRONT UPRIGHT - W4L06386
1 3/8"x3 3/8"x60 5/8" (36x86x1540)

E3 - RIGHT REAR UPRIGHT - W4L06387
1 3/8"x3 3/8"x67 1/2" (36x86x1715)

H4 - FLOOR RAIL - W4L06396
1"x3 3/8"x54 7/8" (24x86x1394)

K2 - GROUND BOARD - W4L06390
5/8"x5 1/4"x56 1/8" (16x134x1426)

NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
BOLT WH
5/16x2-1/4
BLK
(2)
BOLT WH
5/16x1 3/4
BLK
(4)
T-NUT 5/16
BLK
(6)
WASHER
LOCK EXT
8x19 BLK
(6)
NOTE: WE RECOMMEND THAT YOU INSTALL ALL "T-NUTS" FIRST, WHEN
A "T-NUT" IS REQUIRED, THROUGHOUT THE ASSEMBLY PROCESS.
49
