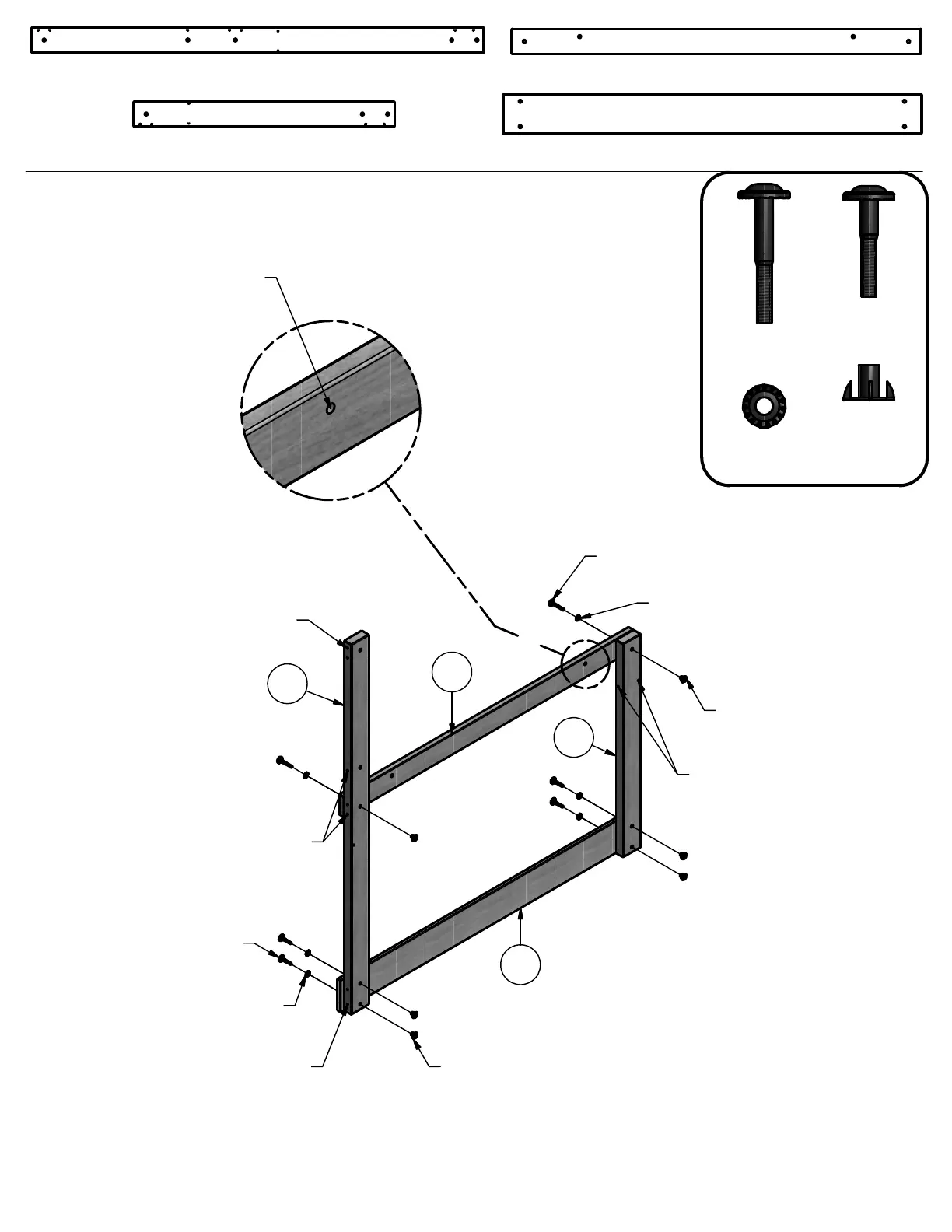

STEP 2
BOLT WH
5/16x2-1/4
BLK
(2)
BOLT WH
5/16x1 3/4
BLK
(4)
T-NUT 5/16
BLK
(6)
WASHER
LOCK EXT
8x19 BLK
(6)
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x1 3/4 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
T-NUT 5/16 BLK
(4 PLCS)
T-NUT 5/16 BLK
(2 PLCS)
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
H2
E1
E4
K2
E1 - LEFT FRONT UPRIGHT - W4L06385
1 3/8"x3 3/8"x60 5/8" (36x86x1540)

E4 - LEFT REAR UPRIGHT - W4L06388
1 3/8"x3 3/8"x35" (36x86x889)

H2 - FLOOR RAIL - W4L06392
1"x3 3/8"x54 7/8" (24x86x1394)

K2 - GROUND BOARD - W4L06390
5/8"x5 1/4"x56 1/8" (16x134x1426)

