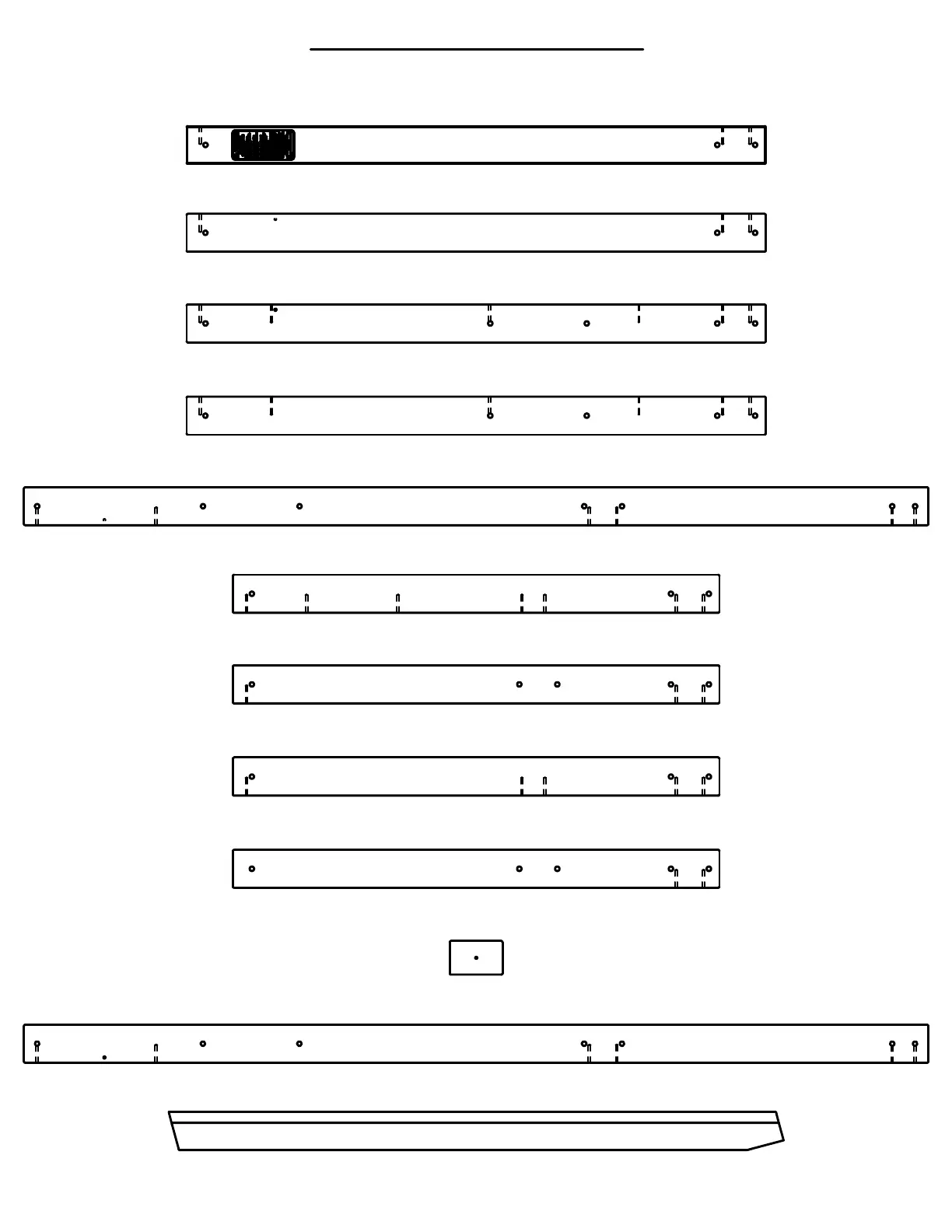

Parts Identification
Wood Components
(NOT TO SCALE)
E1 - RIGHT REAR UPRIGHT - W2A02080
1 3/8"x3 3/8"x51 3/4" (36x86x1314)
E2 - LEFT REAR UPRIGHT - W4L07493
1 3/8"x3 3/8"x51 3/4" (36x86x1314)
E3 - LEFT FRONT UPRIGHT - W4L07494
1 3/8"x3 3/8"x51 3/4" (36x86x1314)
E4 - RIGHT FRONT UPRIGHT - W4L07495
1 3/8"x3 3/8"x51 3/4" (36x86x1314)
E5 - RIGHT FRONT BALCONY UPRIGHT - W4L07502
1 3/8"x3 3/8"x80 3/4" (36x86x2052)
E6 - LEFT REAR UPRIGHT - W4L07509
1 3/8"x3 3/8"x43 1/2" (36x86x1104)
E7 - RIGHT REAR UPRIGHT - W4L07510
1 3/8"x3 3/8"x43 1/2" (36x86x1104)
E8 - LEFT FRONT UPRIGHT - W4L07511
1 3/8"x3 3/8"x43 1/2" (36x86x1104)
E9 - RIGHT FRONT UPRIGHT - W4L07512
1 3/8"x3 3/8"x43 1/2" (36x86x1104)
E10 - MOUNTING BLOCK - W4L07615
1 3/8"x3"x4 3/4" (36x76x120)
E72 - LEFT RAIL - W4L07622
1 3/8"x3 3/8"x54 7/8" (36x86x1395)
E11 - RIGHT FRONT BALCONY UPRIGHT - W4L07673
1 3/8"x3 3/8"x80 3/4" (36x86x2052)
13
