Backyard Discovery Mount Triumph - Page 15

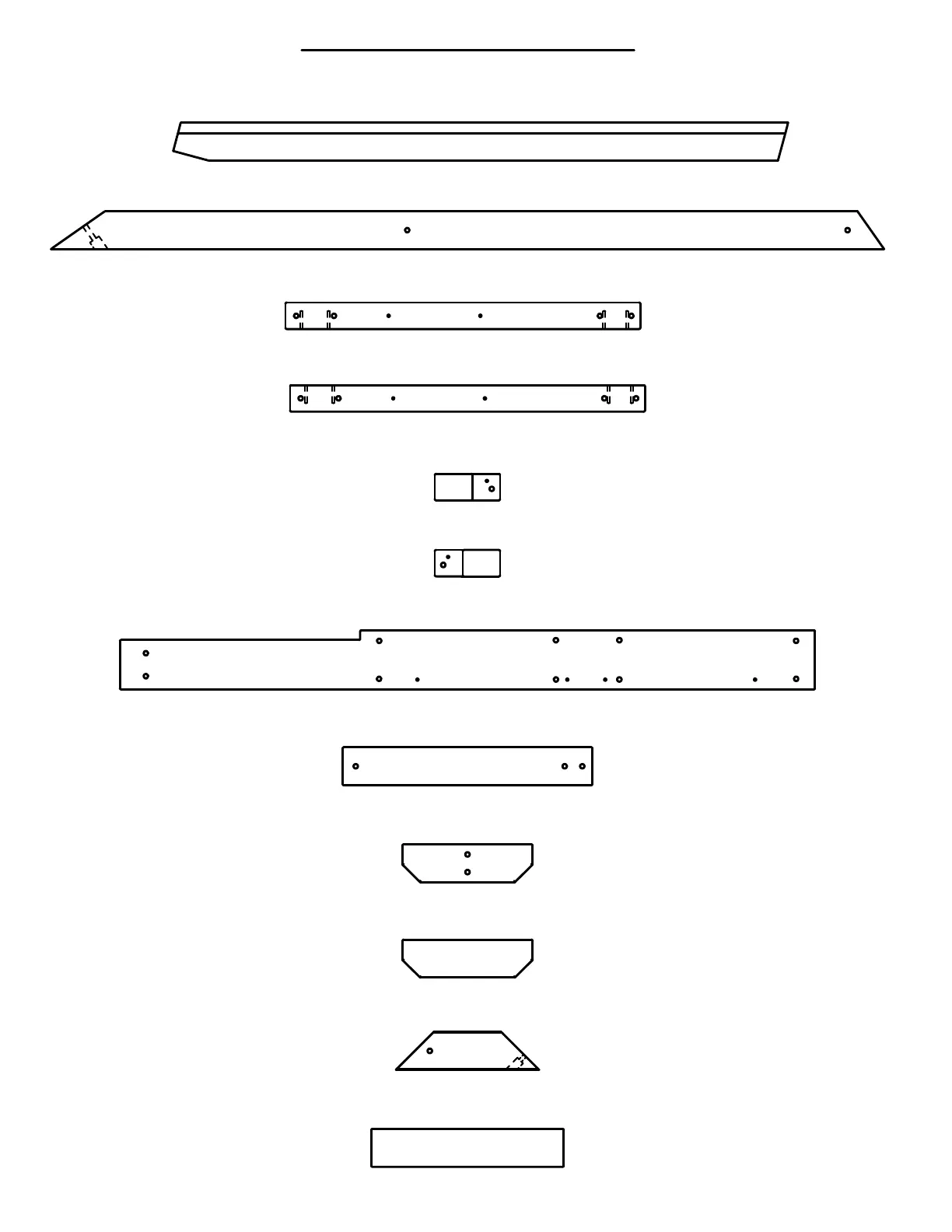

Parts Identification
Wood Components
(NOT TO SCALE)
E77 - ANGLE BRACE - W4L07631
1 3/8"x3 3/8"x74 3/8" (36x86x1890)

F1 - RIGHT BALCONY UPRIGHT - W4L07506
1 3/8"x2 3/8"x31 3/4" (36x60x805)

F2 - LEFT BALCONY UPRIGHT - W4L07507
1 3/8"x2 3/8"x31 3/4" (36x60x805)

F3 - SUPPORT BLOCK - W4L07604
1 3/8"x2 3/8"x5 7/8" (36x60x148)

F4 - SUPPORT BLOCK - W4L07614
1 3/8"x2 3/8"x5 7/8" (36x60x148)

G1 - SWING BEAM MOUNT - W4L07513
1"x5 1/4"x62 1/8" (24x134x1577)

H1 - TABLE SUPPORT - W4L07583
1"x3 3/8"x22 3/8" (24x86x567)

H2 - TABLE SUPPORT - W4L07584
1"x3 3/8"x11 5/8" (24x86x295)

H3 - TABLE SUPPORT - W4L07585
1"x3 3/8"x11 5/8" (24x86x295)

H4 - DECK BRACE - W4L07616
1"x3 3/8"x12 3/4" (24x86x325)

H76 - LADDER RUNG - W4L07620
1"x3 3/8"x17 1/4" (24x86x437)

E73 - RIGHT RAIL - W4L07623
1 3/8"x3 3/8"x54 7/8" (36x86x1395)

14
