Parts Identification

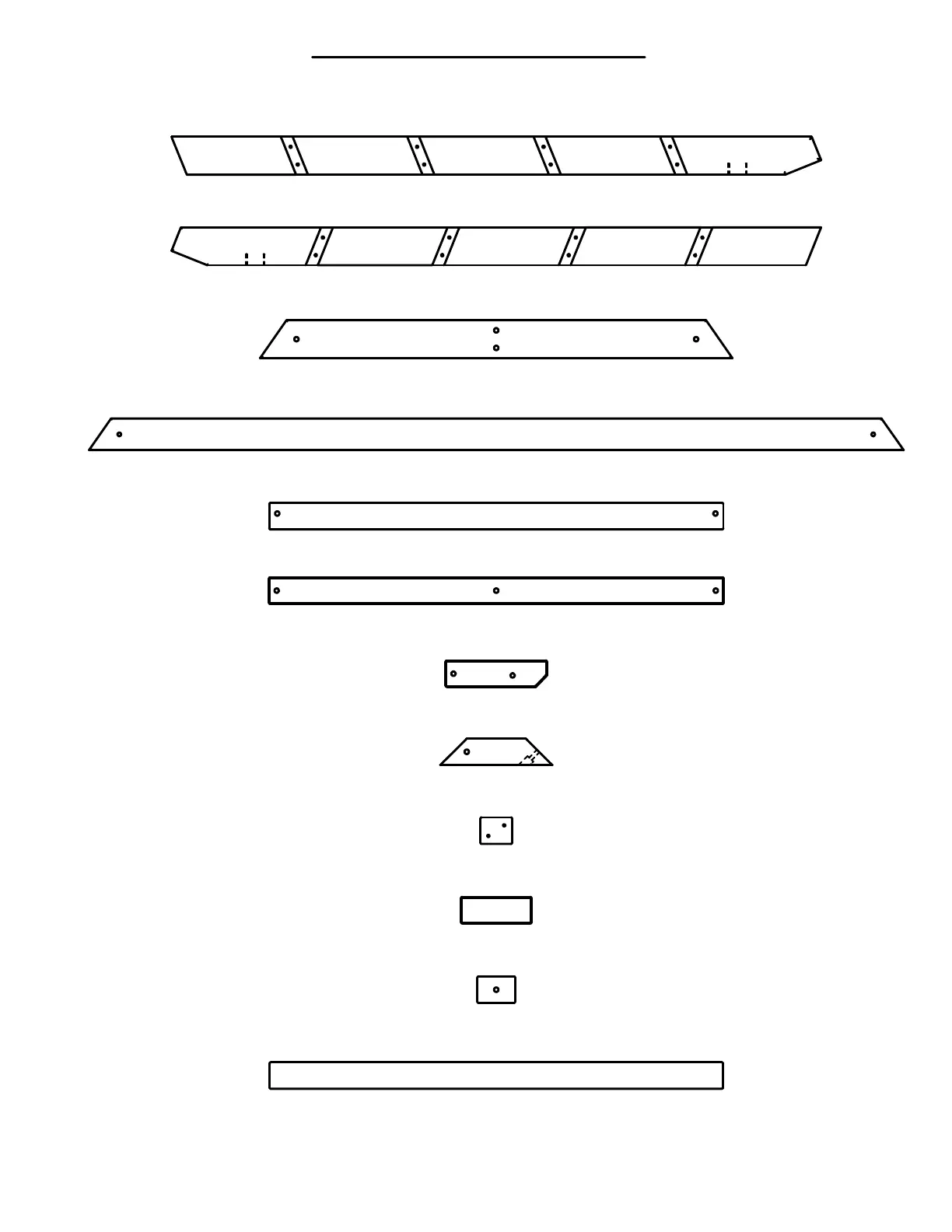

Wood Components
(NOT TO SCALE)
H77 - LEFT UPRIGHT - W4L07617
1"x3 3/8"x58" (24x86x1474)

H78 - RIGHT UPRIGHT - W4L07618
1"x3 3/8"x58" (24x86x1474)

H79 - END SUPPORT - W4L07632
1"x3 1/2"x42" (24x86x1072)

H80 - GROUND BOARD - W4L07630
1"x3 3/8"x87 3/8" (24x86x2218)

J1 - PORCH GROUND BOARD - W4L07504
1"x2 3/8"x40 1/2" (24x60x1030)

J2 - PORCH GROUND BOARD - W4L07505
1"x2 3/8"x40 5/8" (24x60x1032)

J3 - BENCH SUPPORT - W4L07586
1"x2 3/8"x9" (24x60x230)

J4 - ANGLE BRACE - W4L07587
1"x2 3/8"x10" (24x60x254)

J5 - SUPPORT BLOCK - W4L07588
1"x2 3/8"x2 7/8" (24x60x72)

J6 - SUPPORT BLOCK - W4L07589
1"x2 3/8"x6 1/4" (24x60x160)

J7 - SUPPORT BLOCK - W4L07595
1"x2 3/8"x3 3/8" (24x60x86)

J8 - FLOOR JOIST - W4L07602
1"x2 3/8"x40 1/2" (24x60x1029)

