Backyard Discovery Mount Triumph - Page 44


STEP 2
Ɣ REPEAT ON OTHER SIDE, MAKING A LEFT AND RIGHT ASSEMBLY.

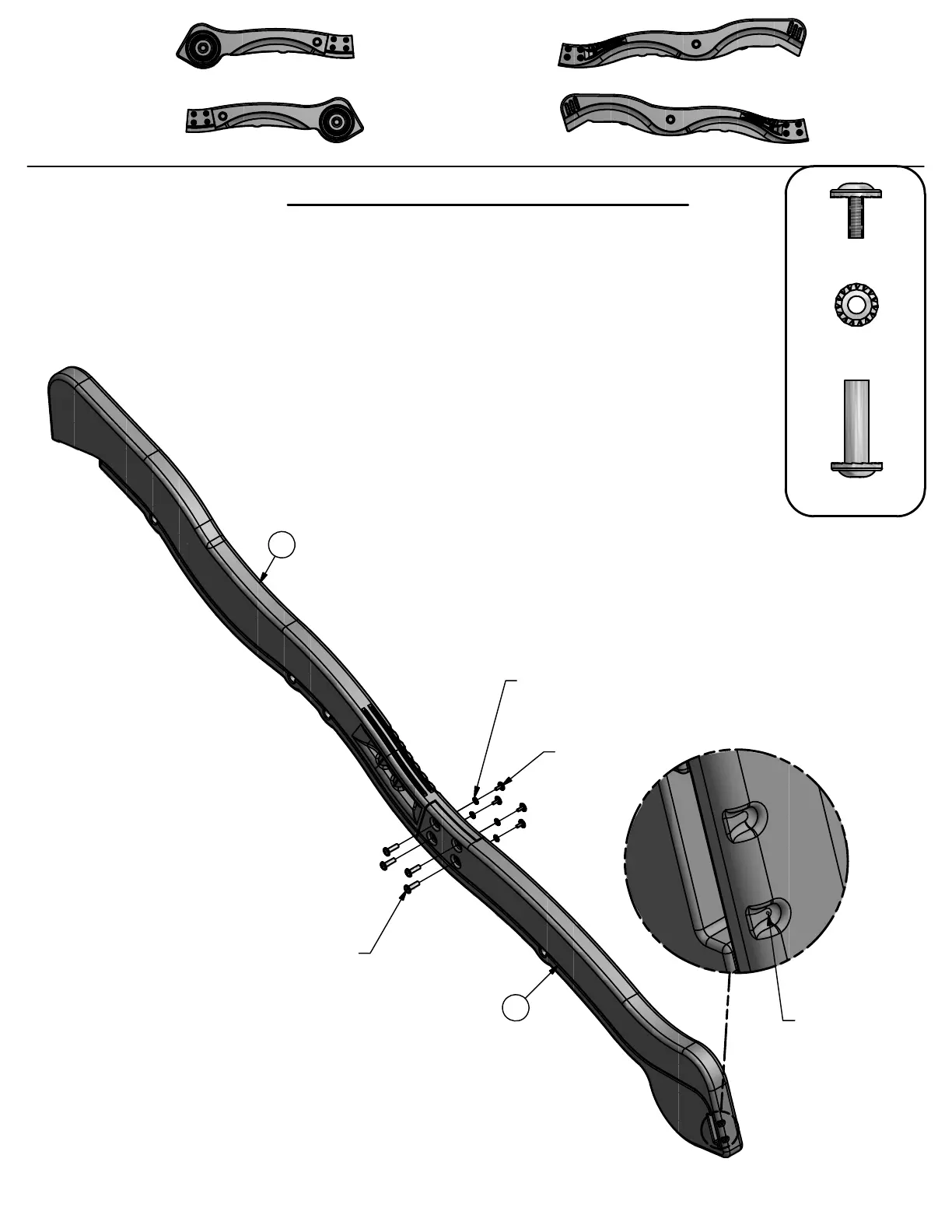

10 FOOT SLIDE ASSEMBLY
DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031

DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030

TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033

DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032

BOLT WH
5/16x3/4
(8)
WASHER
LOCK EXT
8x19
(8)
NUT BARREL
WH 5/16x1 1/2
(8)
Using an 1/8" drill bit,
Pilot drill all screw dimples
along the bottom and end
edge of the slide rails.
WASHER LOCK EXT 8x19
3/&6
BOLT WH 5/16x3/4
3/&6
NUT BARREL WH 5/16x1 1/2
3/&6
75
'6
43
