Backyard Discovery Mount Triumph - Slide Assembly; 10 Foot Slide Assembly Steps

TOP
BOTTOM
TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.
USE M70 SLIDE BED SUPPORT AS A
TEMPLATE FOR DRILLING BOTTOM
HOLE PATTERN IN SLIDE BED. BE SURE
TO PLACE SLIDE BRACE UP 1/2" FROM
BOTTOM EDGE OF SLIDE BED BEFORE
MARKING HOLE PATTERN. USE A 7/16"
DRILL BIT TO DRILL HOLE PATTERN.

M70 - SLIDE BED SUPPORT - W100935
5/8"x3 3/8"x19 7/8" (16x86x505)

BOLT WH
5/16x1/2
(3)

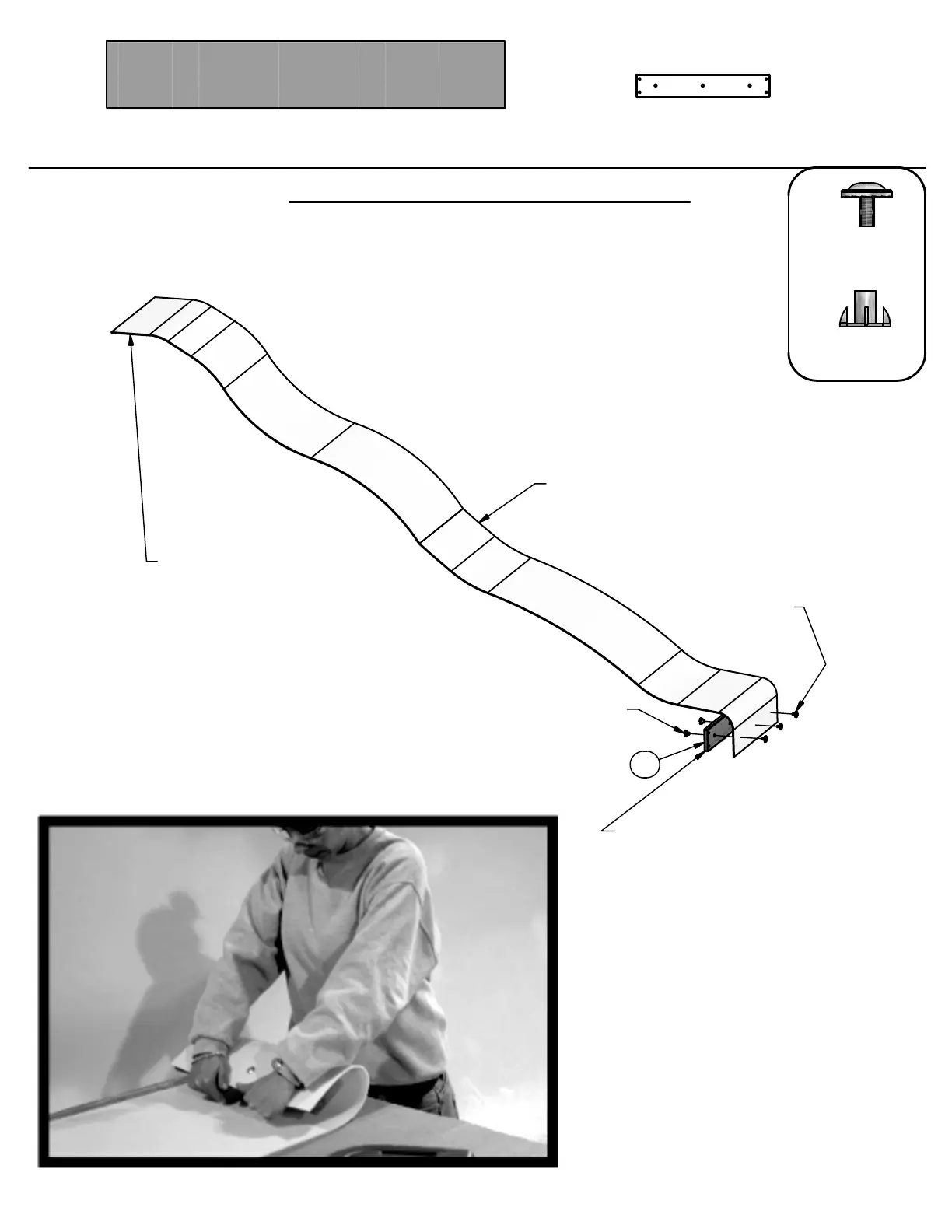

STEP 1
10 FOOT SLIDE ASSEMBLY
(SEE SLIDE ASSEMBLY
INSTALLATION STEP FOR
DECK MOUNTING HOLE
DRILLING LOCATIONS).
DX - SLIDE BED 10' LIGHT GREEN
0
DX - SLIDE BED 10' LIGHT GREEN - A100035

%2/7:+[
3/&6
7187
3/&6
T-NUT 5/16
(3)
42
