Backyard Discovery Mount Triumph - Main Fort Assembly; Constructing the Fort Frame

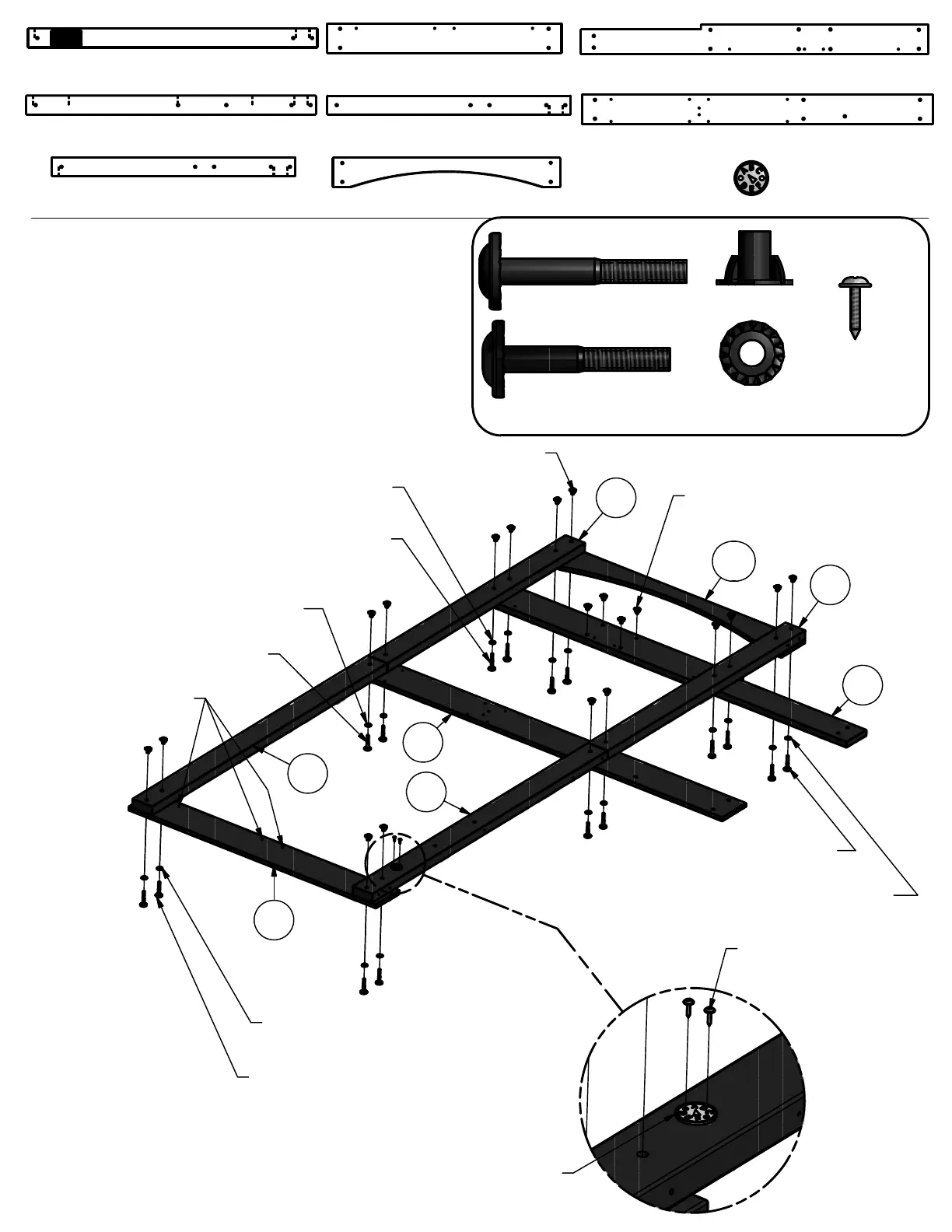

STEP 1
INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.
T-NUT 5/16 BLK
(16 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
BOLT WH 5/16x2-1/4 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
T-NUT 5/16 BLK
(4 PLCS)
SCREW PWH 8x5/8
(16 PLCS)
WASHER
LOCK EXT
8x19 BLK
(16)
T-NUT 5/16
BLK
(20)
SCREW PWH
8x5/8
(2)
BOLT WH
5/16x2 BLK
(12)
BOLT WH
5/16x2-1/4
BLK
(4)
K1
E1
E4
K5
E9
E7
G1
K12
E1 - RIGHT REAR UPRIGHT - W2A02080
1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E4 - RIGHT FRONT UPRIGHT - W4L07495
1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E7 - RIGHT REAR UPRIGHT - W4L07510
1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E9 - RIGHT FRONT UPRIGHT - W4L07512
1 3/8"x3 3/8"x43 1/2" (36x86x1104)

G1 - SWING BEAM MOUNT - W4L07513
1"x5 1/4"x62 1/8" (24x134x1577)

K1 - GROUND BOARD - W4L07489
5/8"x5 1/4"x41 7/8" (16x134x1064)

K5 - RIGHT CENTER WALL RAIL - W4L07496
5/8"x5 1/4"x62 3/4" (16x134x1593)

K12 - ARCHED WALL RAIL - W4L07579
5/8"x5 1/4"x40 5/8" (16x134x1032)

"A" REVISION TAG
SQ - "A" REVISION TAG - A100314
(1)
HOLES TOWARD THE
TOP OF FORT.
46
