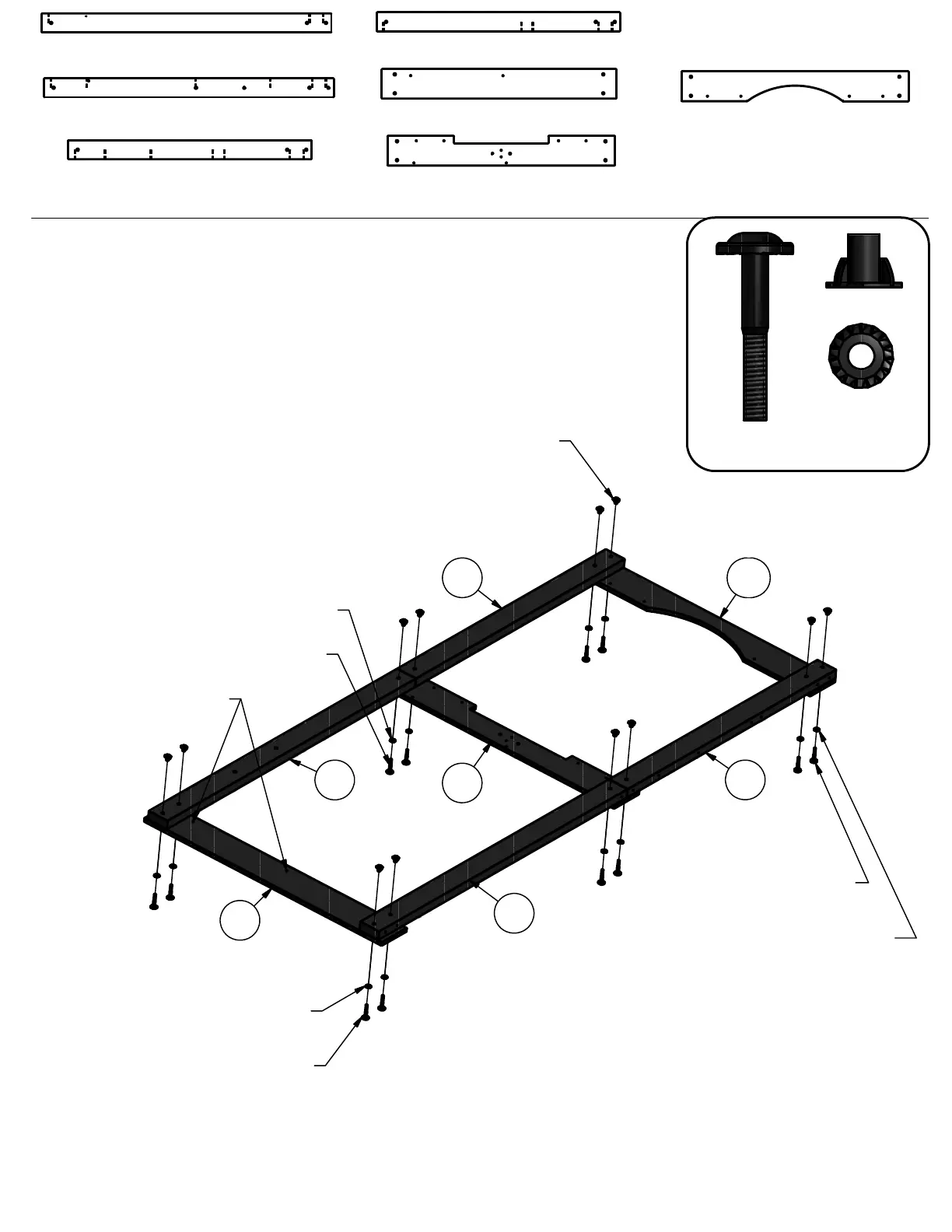

STEP 2
INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.
WASHER
LOCK EXT
8x19 BLK
(12)
T-NUT 5/16
BLK
(12)
BOLT WH
5/16x2 BLK
(12)
T-NUT 5/16 BLK
(12 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
E3
K2
E2
K8
E8
E6
K13
E2 - LEFT REAR UPRIGHT - W4L07493
1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E3 - LEFT FRONT UPRIGHT - W4L07494
1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E6 - LEFT REAR UPRIGHT - W4L07509
1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E8 - LEFT FRONT UPRIGHT - W4L07511
1 3/8"x3 3/8"x43 1/2" (36x86x1104)

K2 - GROUND BOARD - W4L07490
5/8"x5 1/4"x41 7/8" (16x134x1064)

K8 - LEFT CENTER WALL RAIL - W4L07499
5/8"x5 1/4"x40 5/8" (16x134x1032)

K13 - ARCHED WALL RAIL - W4L07580
5/8"x5 1/4"x40 5/8" (16x134x1032)

HOLES TOWARD THE
TOP OF FORT.
