Backyard Discovery Mount Triumph - Page 49

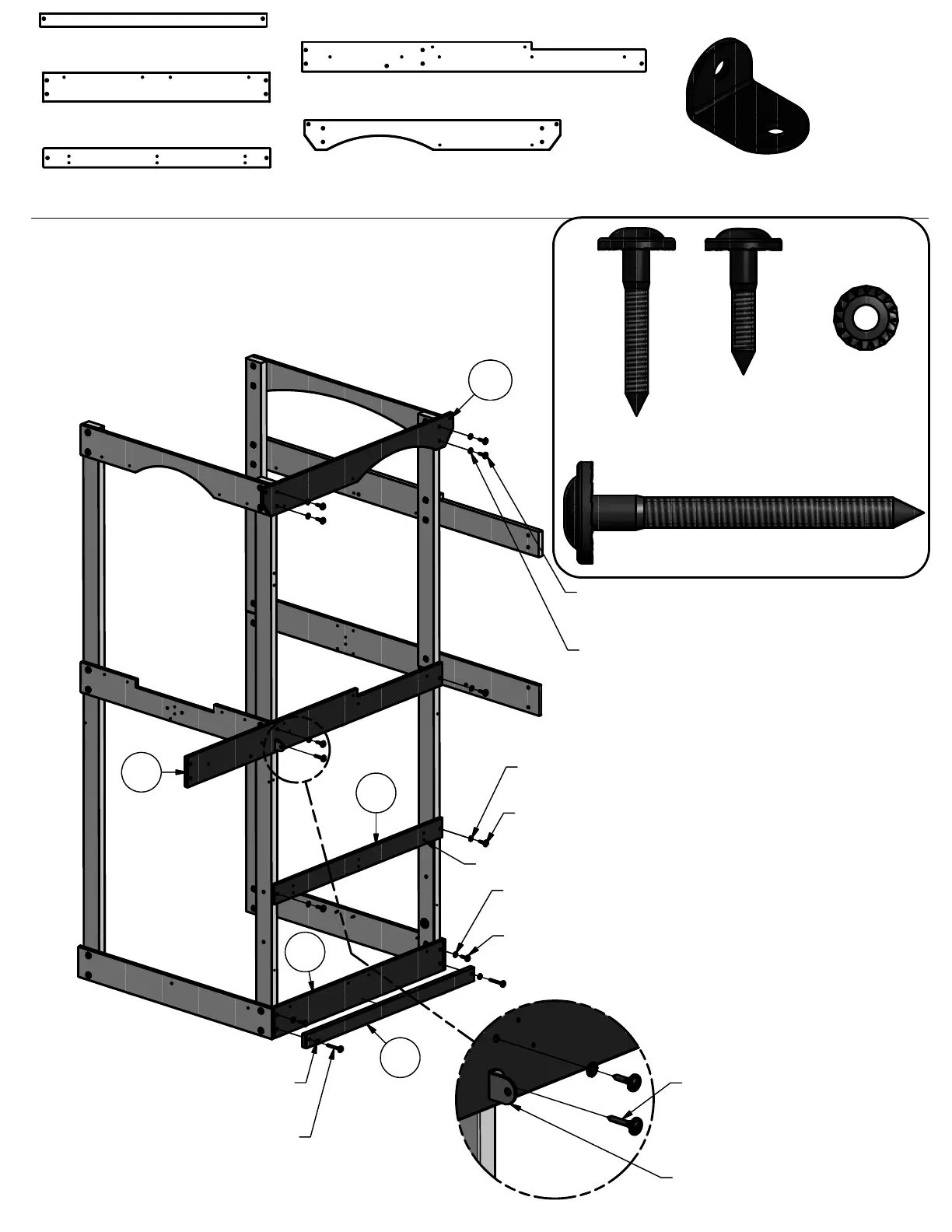

STEP 3
WASHER
LOCK EXT
8x19 BLK
(12)
LAG SCREW
WH 5/16x3
BLK
(2)
LAG SCREW
WH 5/16x2
BLK
(1)
LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
LAG SCREW WH 5/16x1 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
LAG SCREW WH 5/16x1 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
LAG SCREW WH 5/16x3 BLK
(2 PLCS)
L BRACKET BLACK 32x51
LAG SCREW WH 5/16x2 BLK
(1 PLC)
K15
K6
M1
J1
K4
LAG SCREW
WH 5/16x1 1/2
BLK
(10)
J1 - PORCH GROUND BOARD - W4L07504
1"x2 3/8"x40 1/2" (24x60x1030)

K4 - GROUND BOARD - W4L07492
5/8"x5 1/4"x40 1/2" (16x134x1030)

K6 - FRONT CENTER WALL RAIL - W4L07497
5/8"x5 1/4"x61 3/8" (16x134x1560)

K15 - ANGLED WALL RAIL - W4L07582
5/8"x5 1/4"x45 3/4" (16x134x1162)

M1 - WALL RAIL - W4L07590
5/8"x3 3/8"x40 1/2" (16x86x1030)

- L BRACKET BLACK 32x51 - A4M00710
(1)
HOLES LOCATED TOWARD BOTTOM OF BOARD.
48
