STEP 25
INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.
SCREW PFH
8x1 1/2
(12)
M3 - TABLE BOARD - W4L07593
5/8"x3 3/8"x23" (16x86x583)

M3
K16
M3 H2
H3
SCREW PFH 8x1 1/2
(12 PLCS)

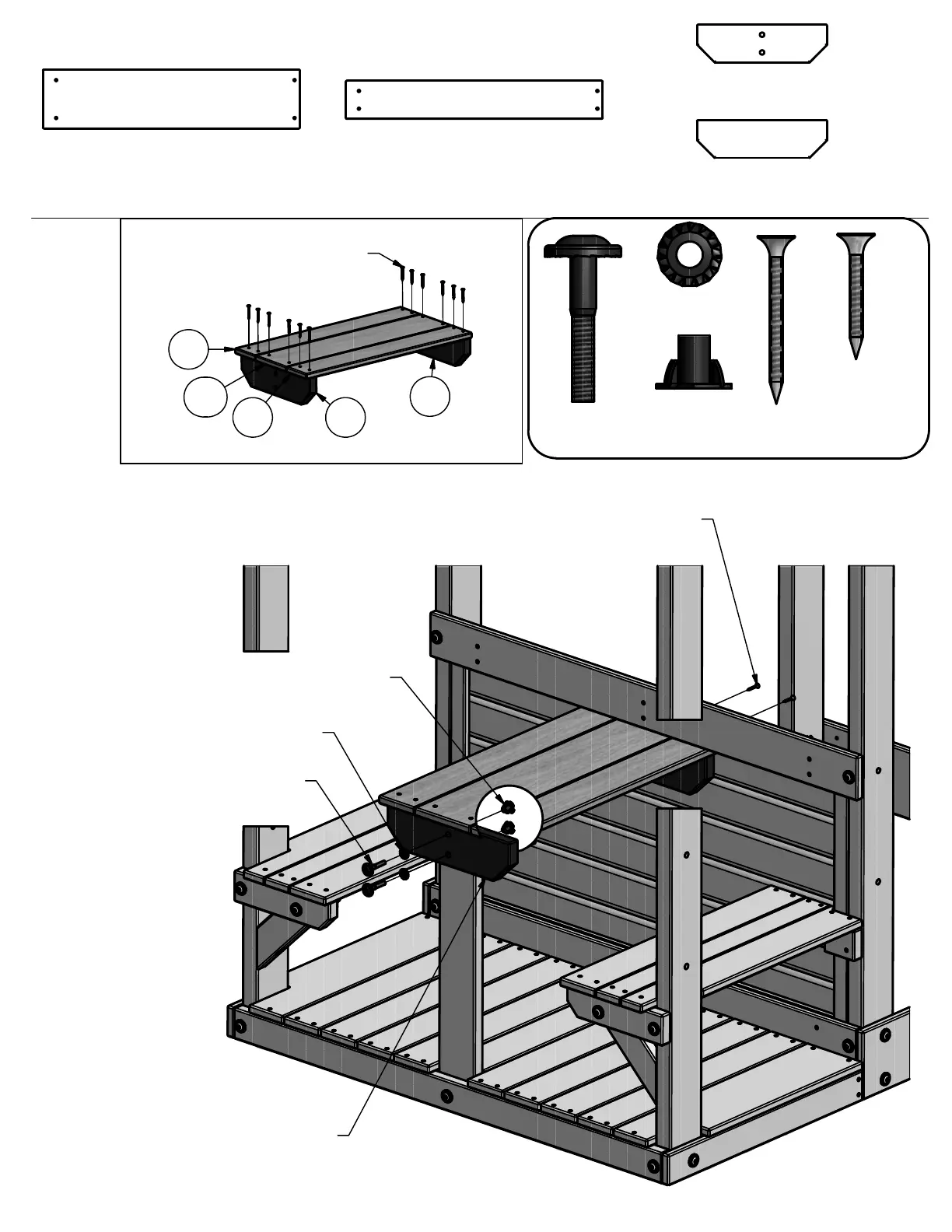

ASSEMBLE TABLE TOP ASSEMBLY AS SHOWN.
K16 - TABLE BOARD - W4L07594
5/8"x5 1/4"x23" (16x134x583)

H2 - TABLE SUPPORT - W4L07584
1"x3 3/8"x11 5/8" (24x86x295)

H3 - TABLE SUPPORT - W4L07585
1"x3 3/8"x11 5/8" (24x86x295)

SCREW PFH 8x1 1/8
(2 PLCS)
T-NUT 5/16 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x1 3/4 BLK
(2 PLCS)
SCREW PFH
8x1 1/8
(2)
BOLT WH
5/16x1 3/4
BLK
(2)
T-NUT 5/16
BLK
(2)
WASHER
LOCK EXT
8x19 BLK
(2)
TABLE TOP ASSEMBLY
