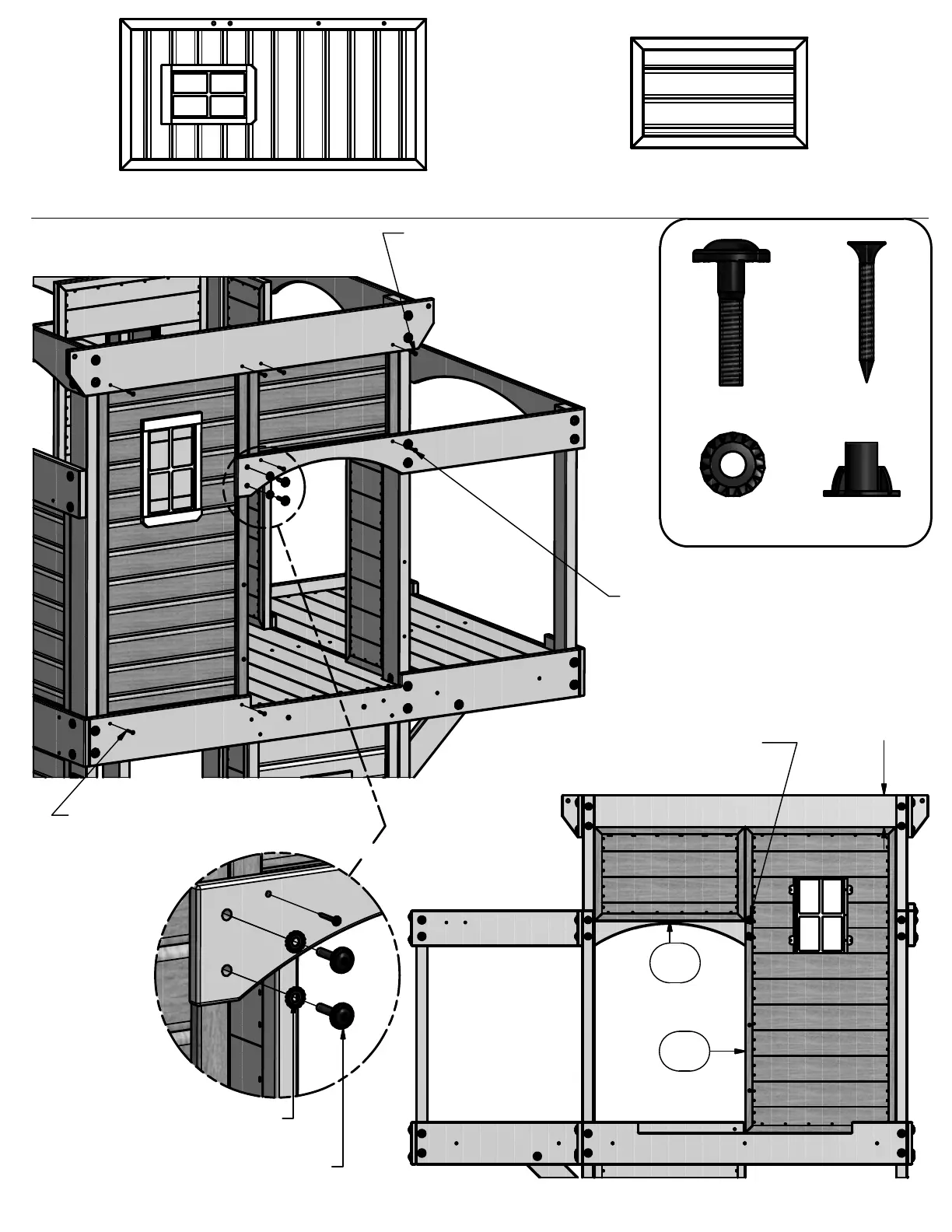

STEP 39
1
0
0
m
m
[
3
7
/
8
i
n
]
WP6
WP5
T-NUT 5/16 BLK
(2 PLCS)
SCREW PFH 8x1 1/4 BLK
(4 PLCS)
SCREW PFH 8x1 1/4 BLK
(2 PLCS)
SCREW PFH 8x1 1/4 BLK
(2 PLCS)
BOLT WH 5/16x1 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
SCREW PFH
8x1 1/4 BLK
(8)
T-NUT 5/16
BLK
(2)
BOLT WH
5/16x1 1/2
BLK
(2)
WASHER
LOCK EXT
8x19 BLK
(2)
(1) WP5 - TOP LEFT REAR WALL PANEL - W2A02086
1"x16 7/8"x46 1/2" (24x430x971)
(1) WP6 - TOP REAR WALL PANEL - W2A02087
1"x18 7/8"x11 3/4" (24x479x300)
