Backyard Discovery Mount Triumph - Page 86

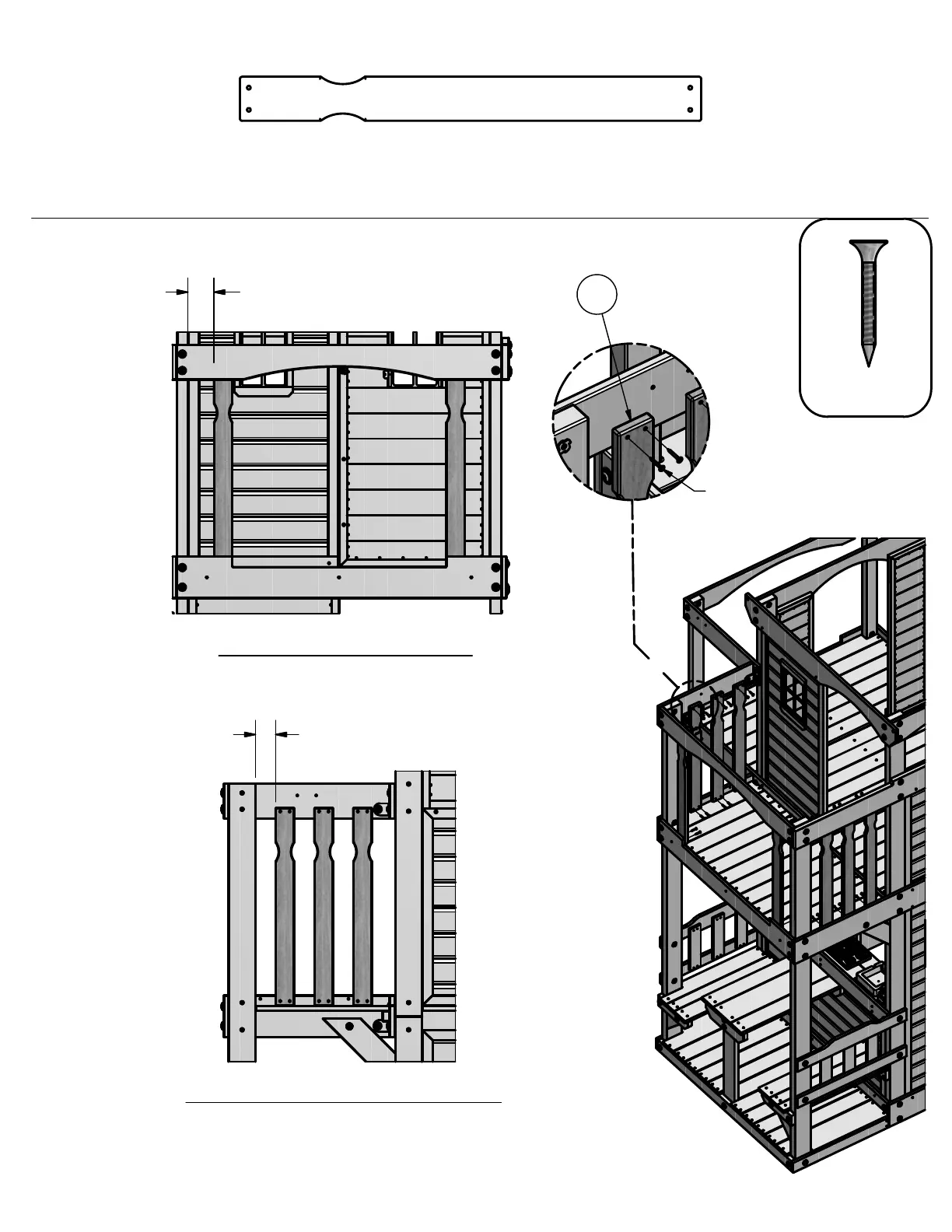

STEP 40
FRONT PICKET PLACEMENT
82 mm [3 1/4 in]
TYP
63 mm [2 1/2 in]
(3 SPCS)
LEFT & RIGHT PICKET PLACEMENT
SCREW PFH 8x1 1/8
(32 PLCS)
SCREW PFH
8x1 1/8
(32)
N2
N2 - PICKET - W4L07612
5/8"x2 3/8"x24 3/4" (16x60x628)

85
