Backyard Products GABLE - Page 35

3/4"
(1.9 cm)
1"
(2,5 cm)
3/4"
(1,9 cm)
6"
(15,2 cm)
6"
(15,2 cm)
For squareness, maintain 3/4"
measurements along panel edges.
3/4"
(1,9 cm)
3/4"
(1,9 cm)
97-1/2"
(247,7 cm)
33
2" (5 cm)
3/4" GAUGE
BLOCK
FRONT WALL PANELS
1
BEGIN

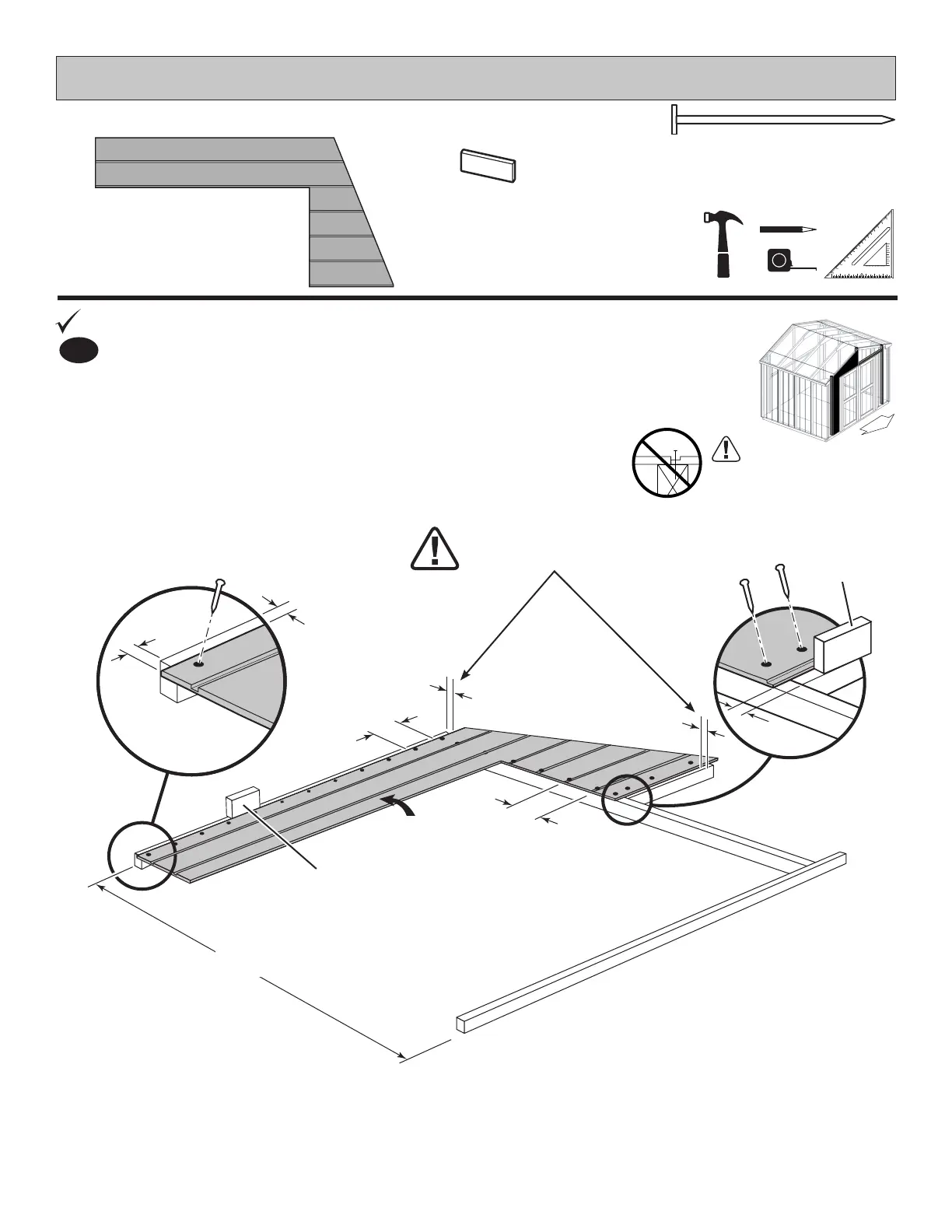

Place LEFT panel on front frame as shown with primed side up.
Use a 3/4" gauge block on edges of panel.
Secure panel to frame with 2" nails spaced 6" apart.
Do not nail
in groove.
PARTS REQUIRED:
x1
x22
DOOR
Primed Side
UP
3/4" GAUGE
BLOCK
3/4" GAUGE
BLOCK
