Backyard Products GABLE - Page 34

PB
PB
LT
LT
PR
47-1/4"
(120 cm)
47-1/4"
(120 cm)
70-1/4"
(178 cm)
70-1/4"
(178 cm)
2-1/2"
(6,4 cm)
2-1/2"
(6,4 cm)
22-1/8
(56 cm)
PB
PR
2-1/2"
(6,4 cm)
2-1/2"
(6,4 cm)
70-1/4"
(178 cm)
94-1/2"
(240 cm)
32

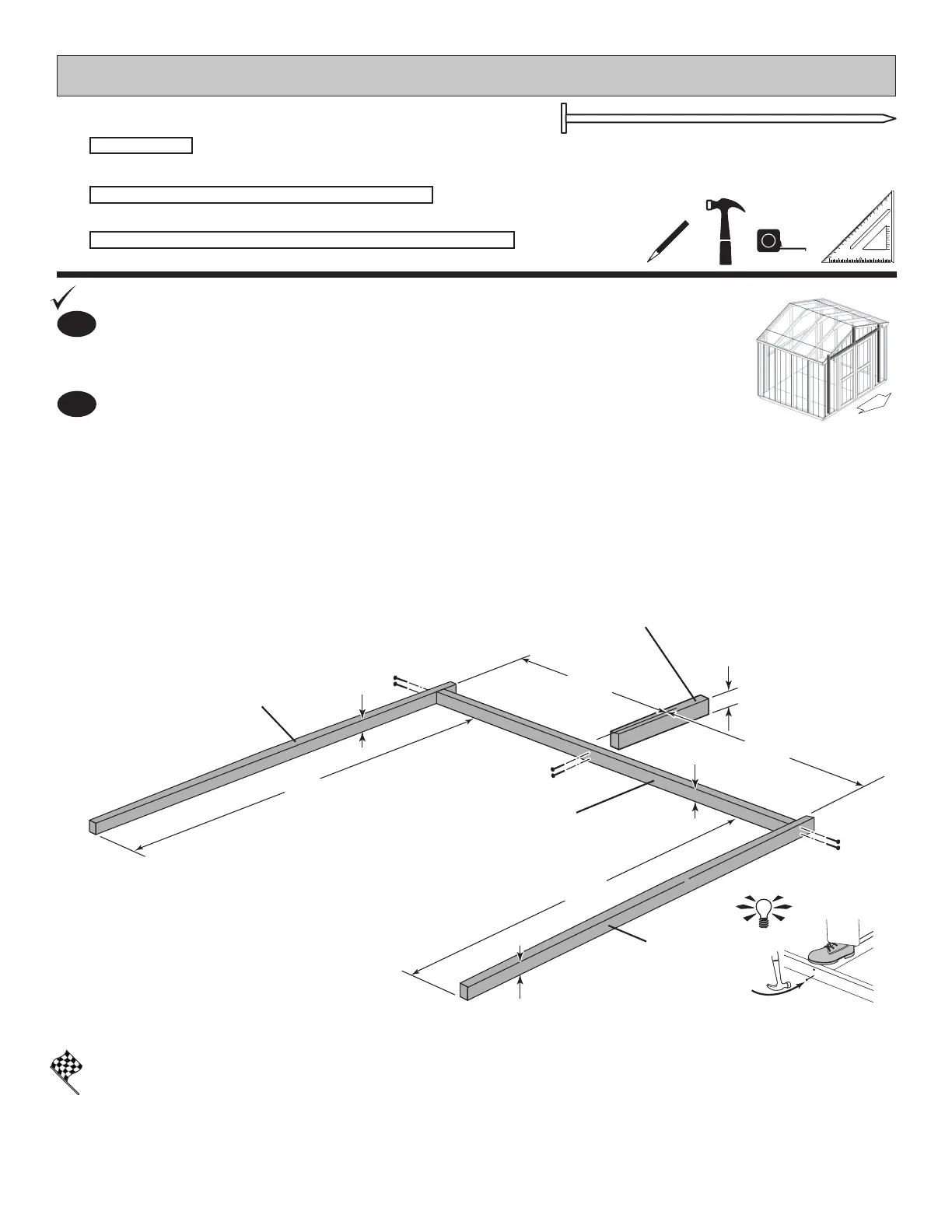

Secure (2) PB to PR with (2) 3" nails at each end.
Arrange (2) PB, (1) PR and (1) LT on edge on oor.
Ensure LT is centered with PR and nail in place with (2) 3" nails.
2
You have nished building your front wall frame.
FINISH
BEGIN
1
FRONT WALL FRAME
3" (7,6 cm)
PARTS REQUIRED:
x2
2 x 3 x 22-1/8" (5 x 7,6 x 56 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
x1
x1
x6
LT
2 x 3 x 77" (5 x 7,6 x 196 cm)
PB
PR
DOOR
HINT:
