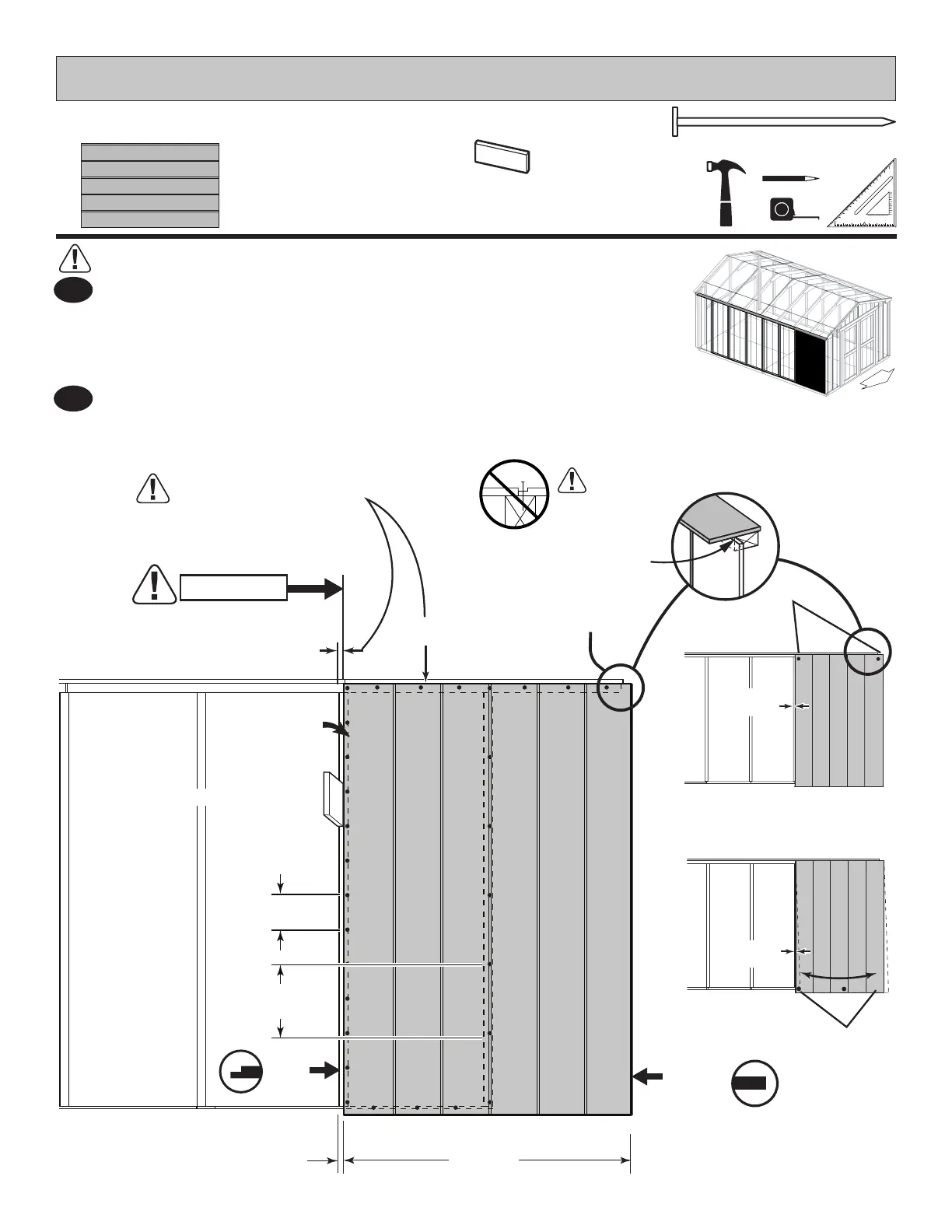

Backyard Products GABLE - 10 x 16 SIDE WALL PANELS INSTALLATION; PARTS REQUIRED FOR 10 x16 SIDE WALL PANELS; INSTALLING 10 x16 SIDE WALL PANELS

46
2" (5 cm)
PARTS REQUIRED:
3/8 x 48 x 72"
(1 x 122 x 183 cm)
x2
x58
3/4"
GAUGE BLOCK
10' x 16' SIDE WALL PANELS
48"
(122 cm)
3/4"
(19 mm)
3/4"
(19 mm)
BEGIN HERE
6" (15 cm)
12" (30 cm)
For squareness maintain 3/4" and

DOOR
Use the gauge block to mark the 3/4" measurement on the wall stud.
Locate the panel ush under the soft panel.
Secure panel with (2) 2" nails in the corners (Fig. A).
5
4
Ensure your wall frame is square by installing (1) panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever move the panel side-to-
side until you have a 3/4" measurement on the wall stud. Secure corner with (2) 2" nails.
3/4" Gauge Block
Fig. A
Fig. B
3/4"
(19 mm)
3/4"
(19 mm)
2 Nails
2 Nails
Secure the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Place the 48 x 72" panel onto wall frame with primed side up.
Note the lip and square edges.
LIP
EDGE
SQUARE
EDGE
Flush
Flush
Do not nail
in groove.
There will be an
overhang at top.
Primed Side
UP
