Backyard Products GABLE - 10 x 16 SIDE WALL FRAME- SOFFIT; PARTS REQUIRED FOR SOFFIT FRAME; INSTALLING SOFFIT FRAME PANELS

PARTS REQUIRED:
x2
x4
x38
3/8 x 5 x 93-1/4" (0,9 x 12,7 x 236,9 cm)
3/8 x 5 x 48" (0,9 x 12,7 x 122 cm)
2
3

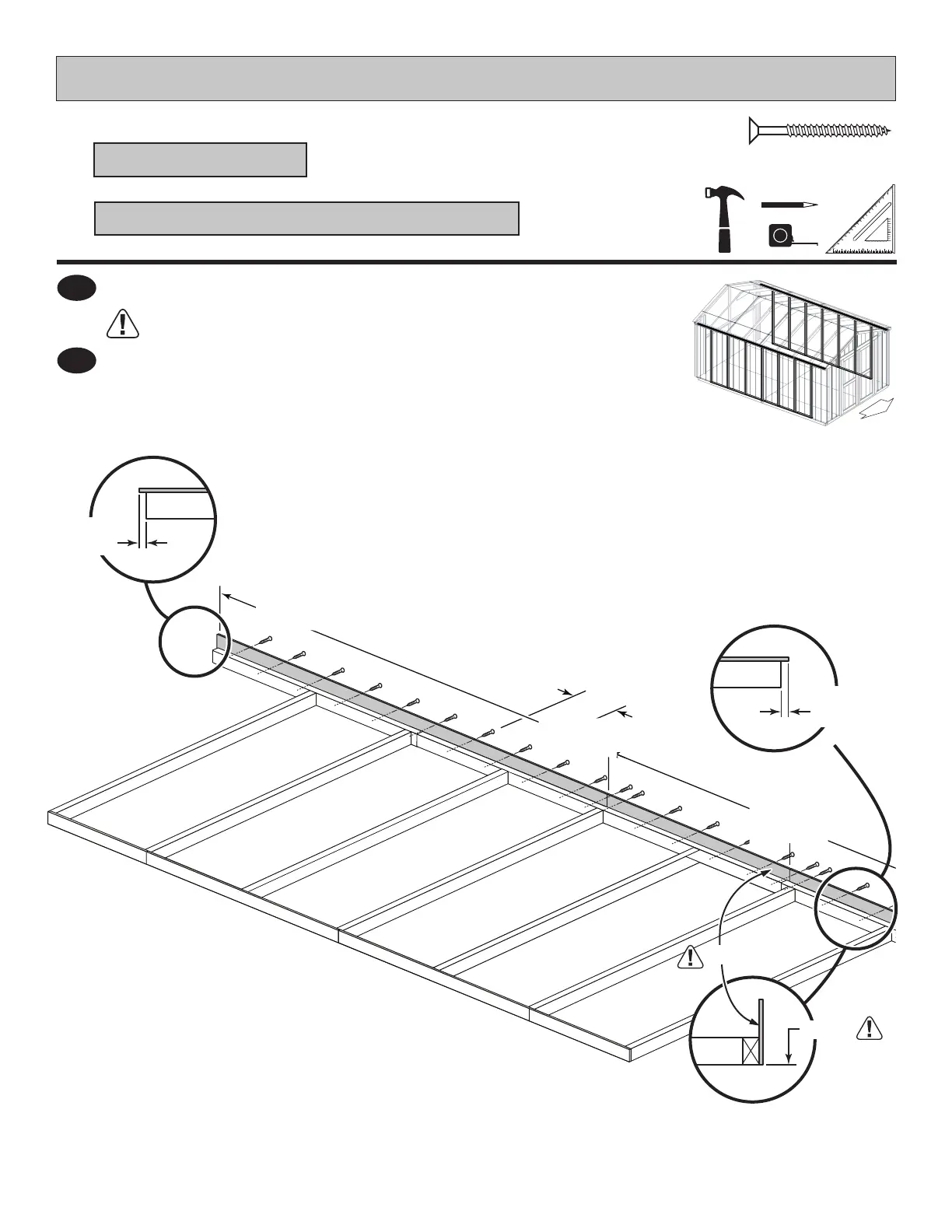

Place panels onto 2 x 3 with primed side against 2 x 3 as shown (Fig A)

Install soft panels ush to 2 x 3 (Fig A) and with 3/8" offset at
ends (Fig. B, C).
Secure with (19) 1-1/4" screws.
1-1/4" (3,2 cm)
DOOR
45
10' x 16' SIDE WALL FRAME- SOFFIT
Fig. A
Fig. C
Fig. B
Flush
3/8"
(10 mm)
3/8"
(10 mm)
93-1/4"
(236,9 cm)
48"
(122 cm)
48"
(122 cm)
9-1/2"
(24 cm)
PRIMED SIDE
