Backyard Products GABLE - BACK WALL INSTALLATION; REQUIRED PARTS FOR BACK WALL INSTALLATION; SECURING THE BACK WALL

48
2" (5 cm)
PARTS REQUIRED (TEMPORARY):
1-1/4 x 2-1/2 x 69" (3,2 x 7,6 x 175,3 cm)
x1
x8
x24

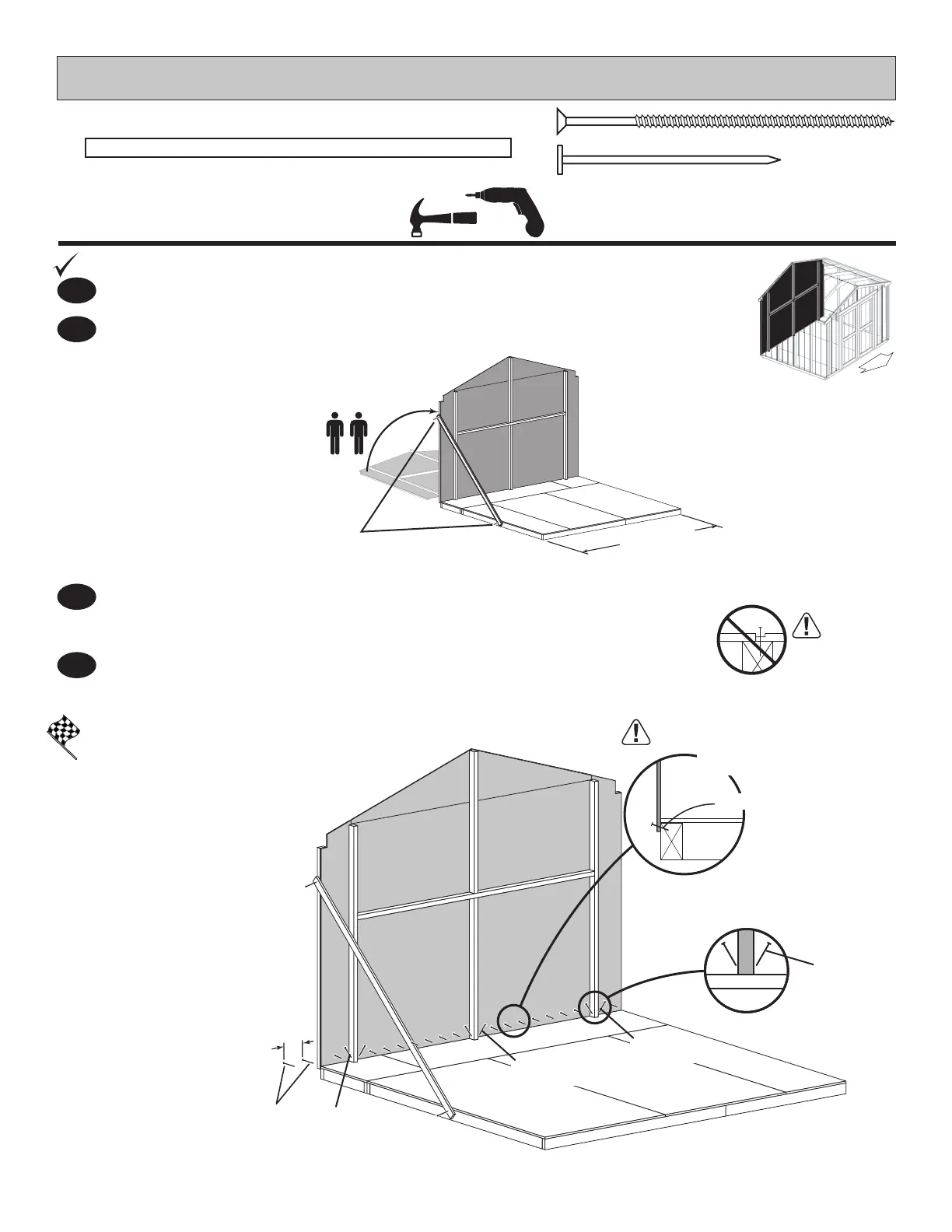

BACK WALL INSTALLATION
3" (7,6 cm)
OO
DOOR
2"
(5 cm)
Do not nail
in groove.
Use OO as a temporary brace. Secure with (2) 3" screws.
Center back wall assembly on the 120" (305 cm) oor dimension.
2
BEGIN
1
Secure lower edge of panel to oor frame with 2" nails spaced 6" apart.
Angle nail to hit oor frame (Fig. A).
3
Secure back wall uprights to oor with (2) 3" screws (Fig. B).
4
Your back wall is now standing.
FINISH
120" (305 cm)
3" (7,6 cm)
Screws

Angle to nail into

2" (5 cm) Nail
Fig. A
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
Fig. B
