Backyard Products GABLE - SIDE WALLS INSTALLATION; ORDER OF SIDE WALL INSTALLATION; SECURING SIDE WALLS TO FRAME

49
Center side wall on oor front to back.
Nail the lower side wall corner to the
back wall trim with (1) 2" nail (Fig. A).
At the top of the side wall the soft
panel will overlap the back wall panel
3/8" (Fig. B).
3
Secure the bottom plate with 3" nails, as shown.
Screw through the back wall trim into the top and
bottom plates using 3" screws (Fig. E).
Repeat process to secure the left side wall.
1
2
BEGIN
2" (5 cm)
3" (7,6 cm)
3" (7,6 cm)

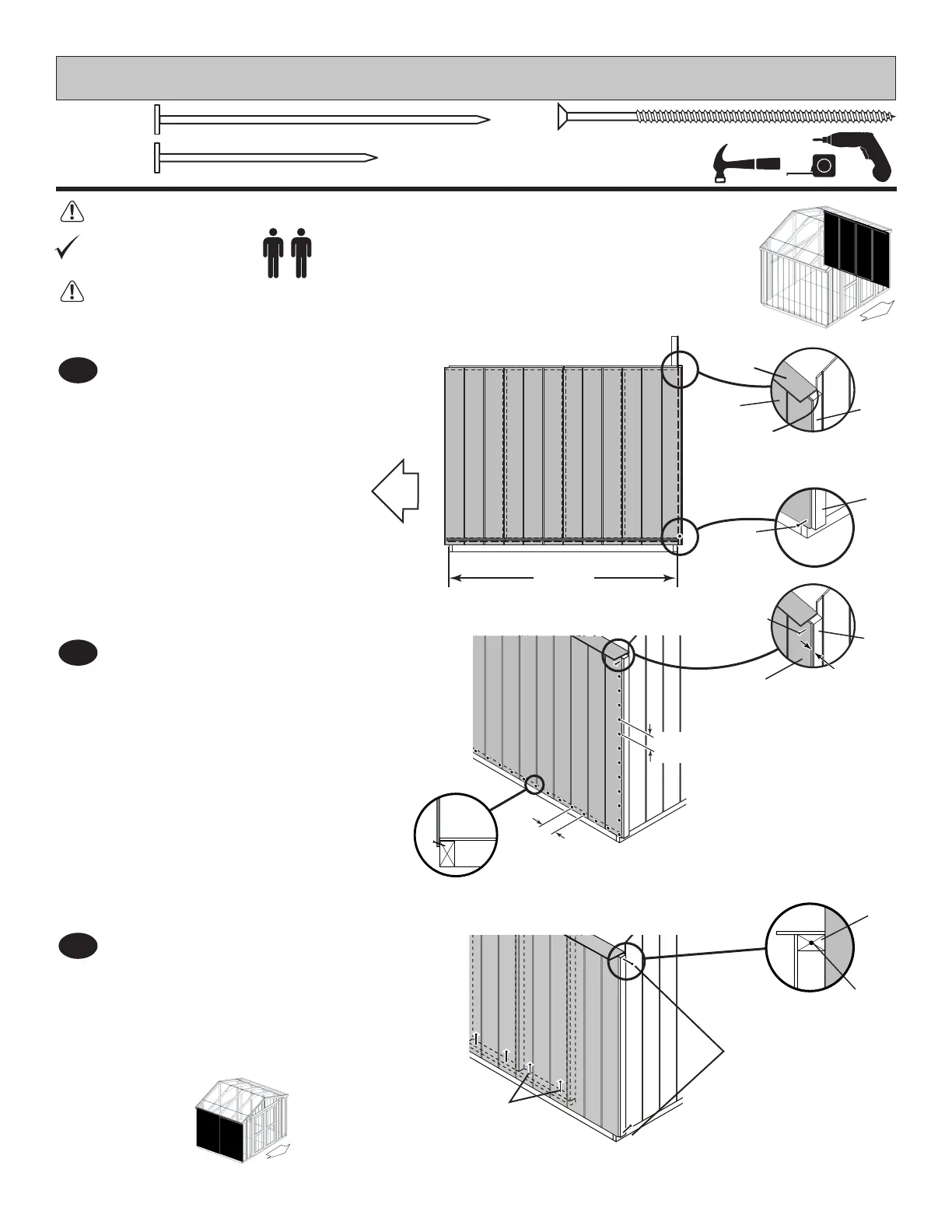

SIDE WALLS INSTALLATION
Ensure the measurement between the
panel edge and the trim is the same
along the entire length.
Secure with (1) 2" nail in the upper
corner (Fig. C).
Secure the panel edge to the trim with
2" nails spaced 6" apart.
Secure bottom of panel with 2" nails
spaced 6" apart.
Angle nail to hit oor frame (Fig. D).
Stand right side wall on oor.
It is important to secure the side wall in the following order:
Additional fasteners needed for 10' x 12' kit or 10' x 16' kit. Same instructions apply.
DOOR
DOOR
x4/8/12 x2
x30/39/48
6"
(15 cm)
6"
(15 cm)
CENTER
2" (5 cm)
Nail
Fig. A
Trim
Fig. D
Fig. E
3" (7,6 cm)
Screw
2x3"
3" (7,6 cm)
Nail
Panel
Same
Measurement
Fig. C
Trim
2" (5 cm)
Nail
DOOR
3" (7,6 cm)
Screw
3/8" (0,9 cm)
OVERLAP
Fig. B
Trim
Panel

Panel
