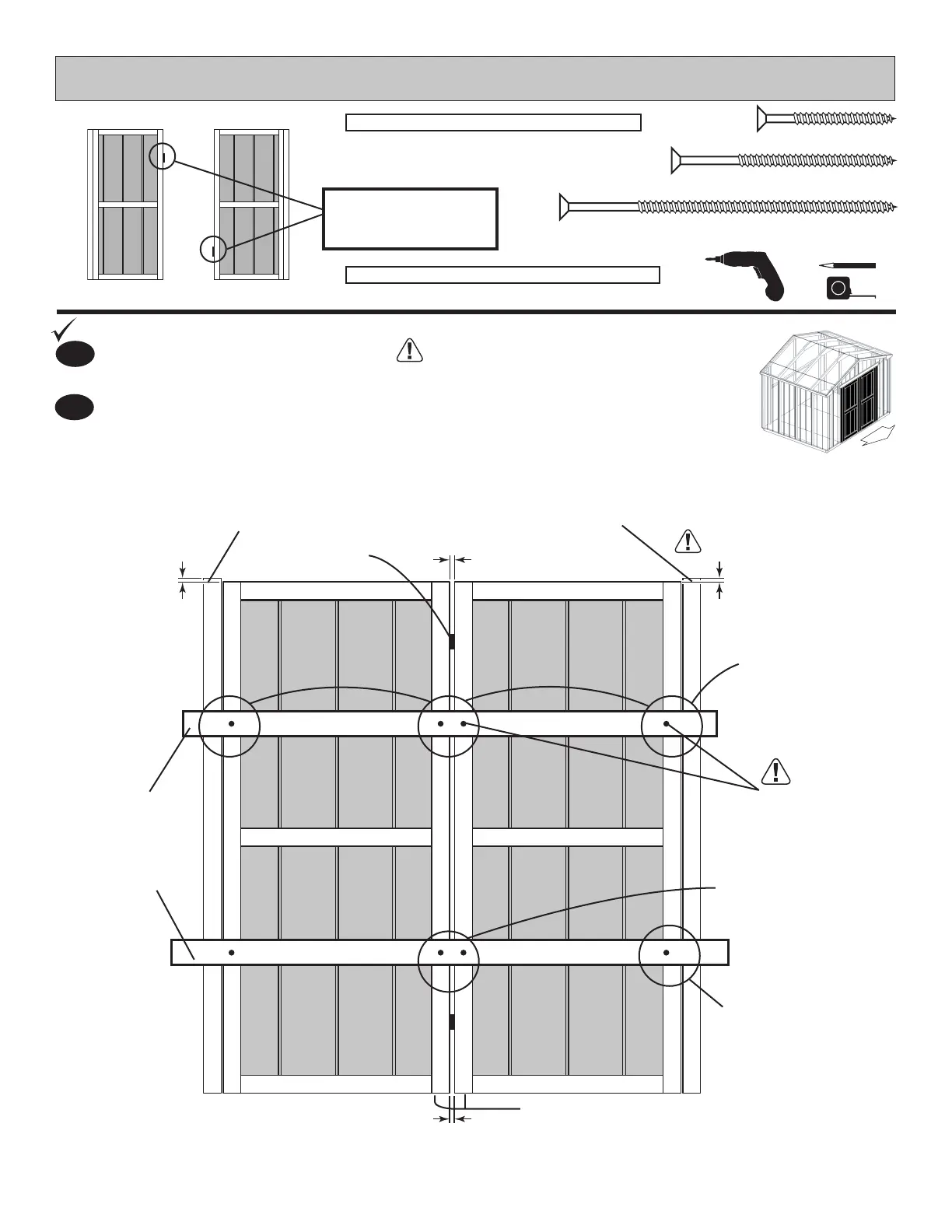

Orient parts as shown on at surface. 3/8" offset is to top. Look for red
(right) and green (left) on hinge board.
PARTS REQUIRED:
x1x1
Left Door Right Door
1
DOORS
1-1/4" (3 cm)
2" (5 cm)
2
Fasten temporary support OO with 3" screws in middle and at ends. Tighten
securely.
Fasten temporary support ZJ at bottom with 1-1/4" screws in middle and 2"
screws at ends. Tighten securely.
DOOR
HINT:
Look for 3/8" SPACER
attached to doors.
ZJ
OO
Make sure spacer
is attached.
Tighten screws
securely.
OFFSET
(4) 3" (7,6 cm)
Screws
Screws in middle
1-1/4" (3 cm)
Screw at ends
2" (5 cm)
3/8"
(1 cm)
3/8"
(1 cm)
3/8"
(1 cm)
3/8"
(1 cm)
OFFSET
GREEN
RED
3" (7,6 cm)
OO
x1
x2
x2
x4
ZJ
x1
5/8 x 3 x 72" (1,6 x 7,6 x 183 cm)
1-1/4 x 2-1/2 x 69" (3,2 x 7,6 x 175,3 cm)
To Next Page
