Backyard Products GABLE - DOOR TRIM AND HARDWARE INSTALLATION; PARTS REQUIRED FOR DOOR TRIM AND HARDWARE; INSTALLING DOOR TRIM AND SECURING DOORS

DOOR
60
DOOR
CENTER CENTER
CENTER
CENTER
Center
Install 3/4" screws
from inside.
x6
2" Nails x8
Fig. B
14" (35,5 cm)
Approximately
Nail into
framing.
(2) Screws
Door
Trim
Hinge
Board
Fig. A
Door
Panel
ZJ
Center metal threshold between doors and secure using eleven 3/4" special
coating screws into oor as shown (Fig, C).
4
You have nished securing your door and trim.
FINISH
BEGIN
1

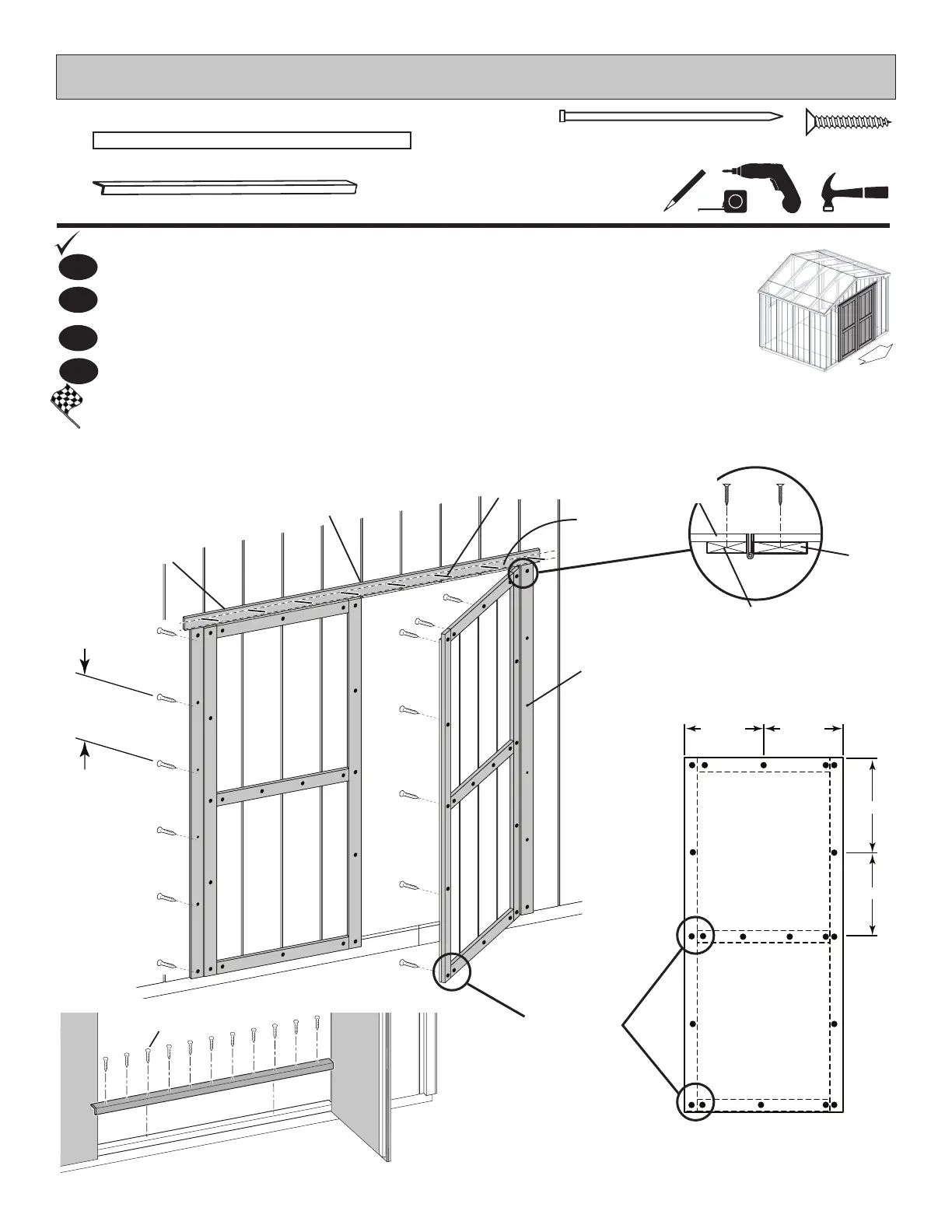

Secure hinge boards from inside using 3/4" screws as shown (Fig. A).
3
Center trim ZJ over doors and secure using (8) 2" nish nails into framing as shown.
2
Reinforce the door trim using 3/4" screws through door panel into trim (Fig. A).
Locate screws as shown in Fig. B. Secure with (2) screws at seams.
(11) Special
coating screws
Fig. C
PARTS REQUIRED:
2" (5 cm) x8
3/4" (1,9 cm) x52
64" Metal Threshold
x1
5/8 x 3 x 72" (1,6 x 7,6 x 183 cm)
x1
ZJ
