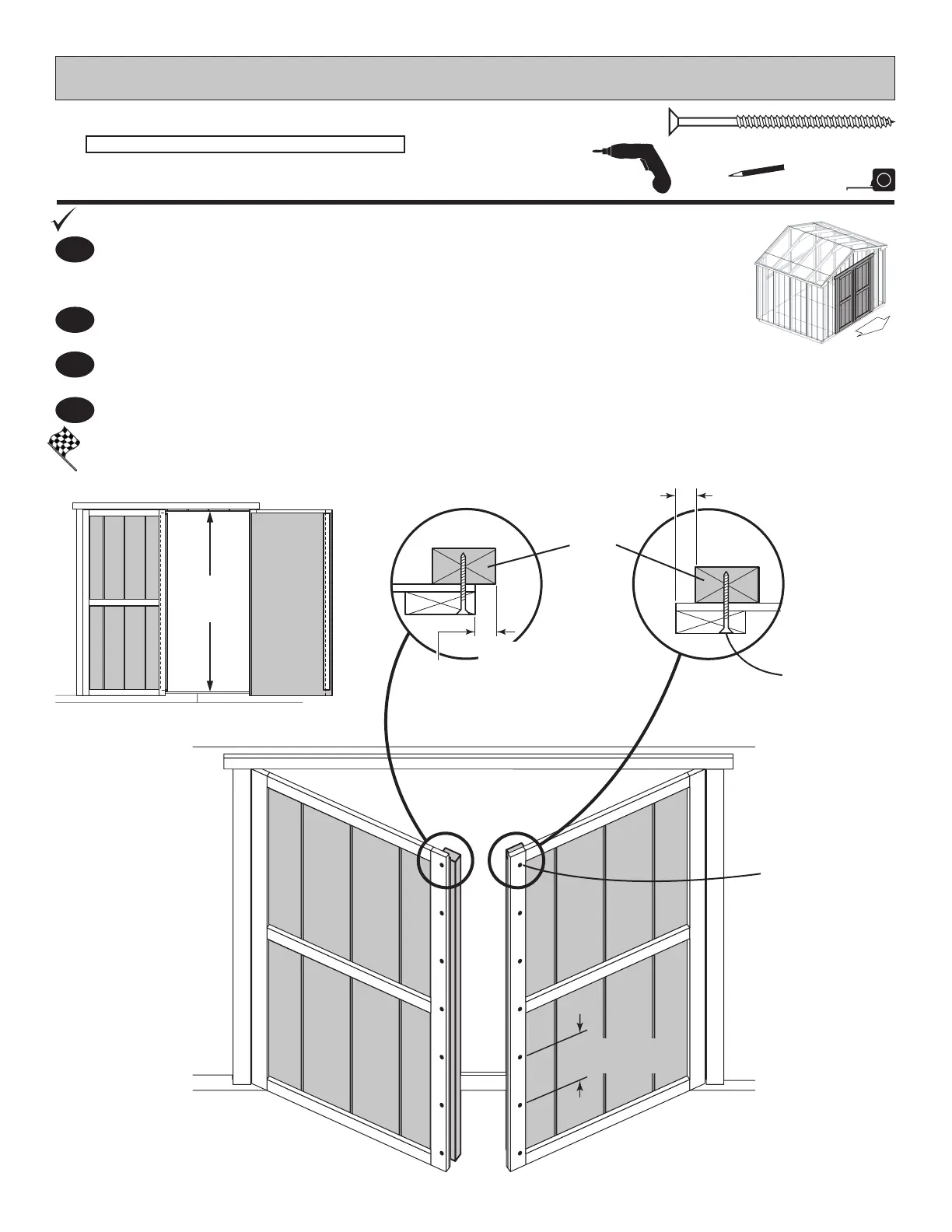

Backyard Products GABLE - DOOR WEATHERSTRIP INSTALLATION; PARTS REQUIRED FOR WEATHERSTRIP; INSTALLING DOOR WEATHERSTRIPS

61
You have nished installing your door weatherstrips.
BEGIN
With left door closed, center a weatherstrip OO vertically on the left door in
the door opening (Fig. A). OO will offset the left door 1" OUT past the door
trim 1" (Fig. B).
1
PARTS REQUIRED:
x2
x14
2" (5 cm)
DOOR WEATHERSTRIP
OO
FINISH
On right door center OO vertically in door opening (Fig. A). OO will offset the
right door 1" IN from the door trim (Fig. C).
3
Secure OO with (7) 3" screws through outside trim into OO (Fig. C).
4
DOOR
OO
Screws
2"
(5 cm)
x14
1"
(2,5 cm)
OFFSET
1"
(2,5 cm)
OFFSET
Secure OO with (7) 3" screws through outside trim into OO (Fig. B)
2
Fig. A
Fig. B
Center OO
in door
opening.
11" (28 cm)
Approximately
1-1/4 x 2-1/2 x 69" (3,2 x 7,6 x 175,3 cm)
