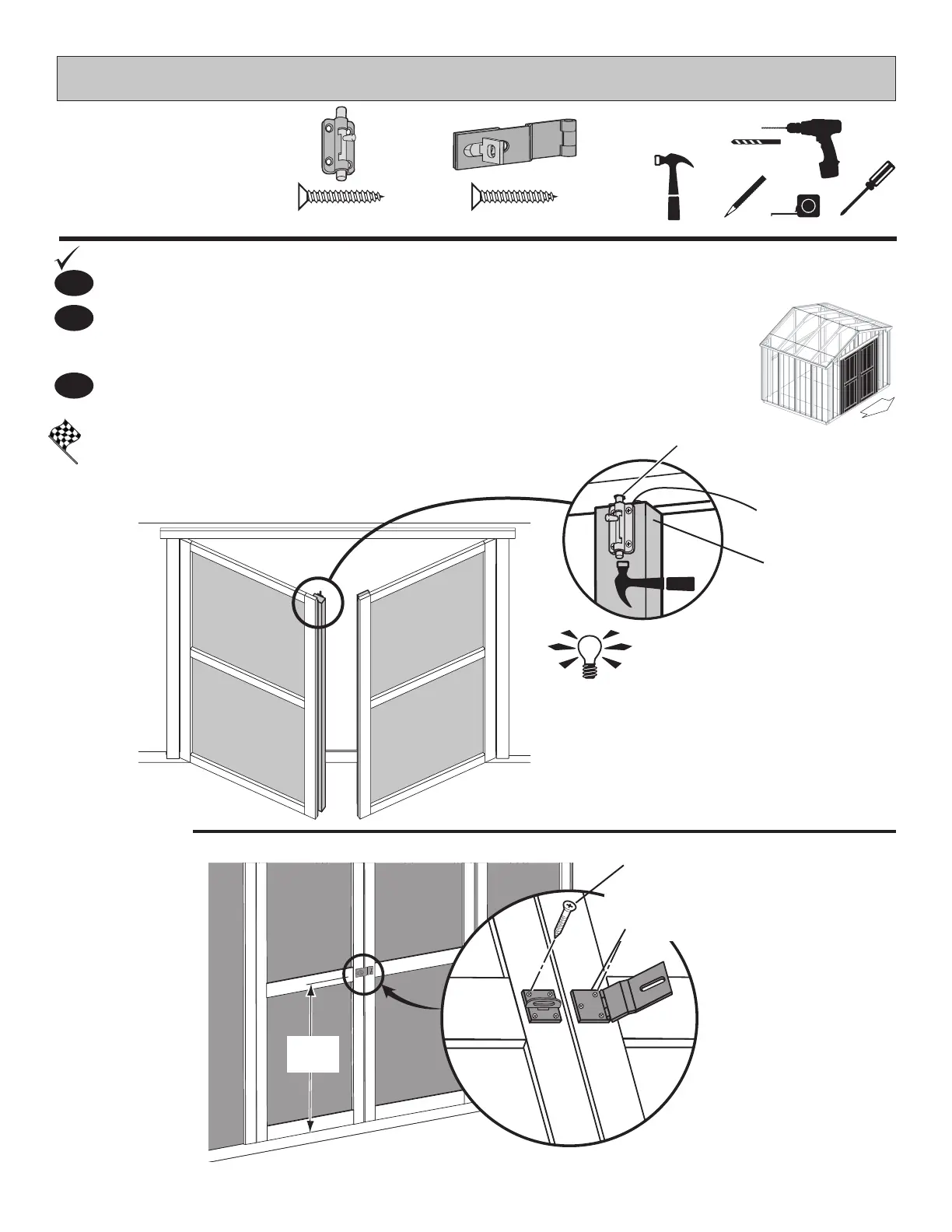

Backyard Products GABLE - DOOR HARDWARE INSTALLATION; PARTS REQUIRED FOR DOOR HARDWARE; INSTALLING BARREL BOLT AND HASP

62
35-1/2"
(90 cm)
BEGIN
PARTS REQUIRED:
Your door hardware is now installed.
FINISH
Install hasp on right door and latch on left door. Bottom edge of hasp is
35-1/2" (90 cm) up from bottom edge of door trim. Measure and mark locations and
install with 3/4" screws as shown (Fig B).
DOOR HARDWARE
3
With door closed mark hole location for bolt to extend into.
HINT: Extend bolt to leave a mark in wood. Tap bolt with hammer.
Drill 3/8" hole deep enough for bolt to slide into.
2
Install barrel bolt ush at top of OO on left door. Secure with 3/4" screws as shown (Fig A).
1
x1
x4 x7
3/4" (1,9 cm)
HINT: With door closed extend bolt and
tap with hammer to leave a mark in wood
for drilling.
DOOR
x1
3/4" (1,9 cm)
Drill 3/8" hole
in-line with bolt.
OO
Fig. A
Fig. B
Flush on OO.
3/4" (1,9 cm) Screw x7
3/8" (9 mm) Drill Bit
