Backyard Canyon Creek User Manual

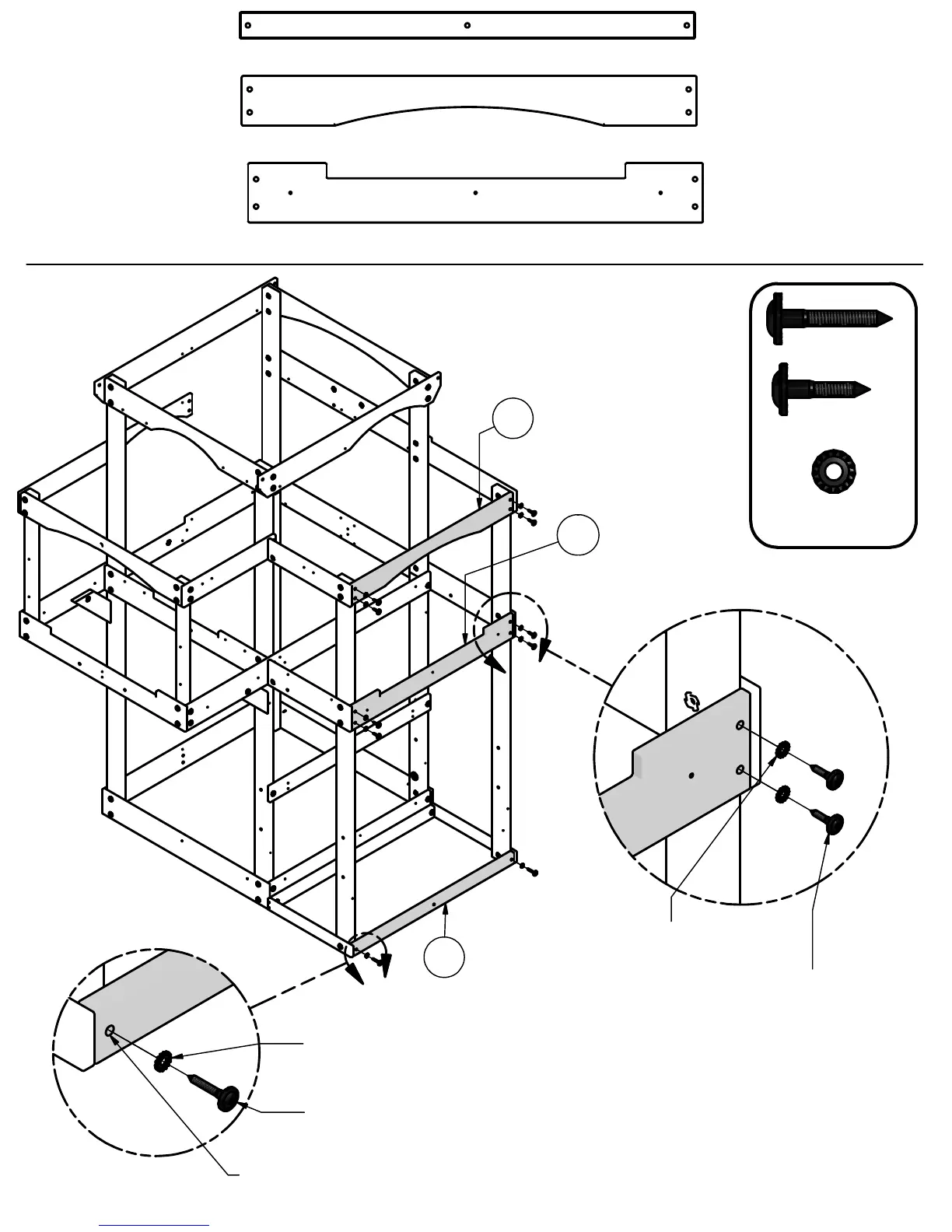

STEP 12
WASHER
LOCK EXT
8x19 BLK
(10)
LAG SCREW WH 5/16x1 1/2 BLK
(8 PLCS)
LAG SCREW WH 5/16x2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
L1
K10
LAG SCREW
WH 5/16x1 1/2
BLK
(8)
LAG SCREW
WH 5/16x2
BLK
(2)
J2
J2 - PORCH GROUND BOARD - W4L11129
1"x
2 3/8"x40 5/8" (24x60x1032)
(1)
K10 - FRONT BALCONY WALL RAIL - W4L11125
5/8"x5 1/4"x40 5/8" (16x134x1032)
(1)
L1 - ARCHED WALL RAIL - W4L11138
5/8"x4 3/8"x40 5/8" (16x112x1032)
(1)
NOTE PILOT HOLES
52
