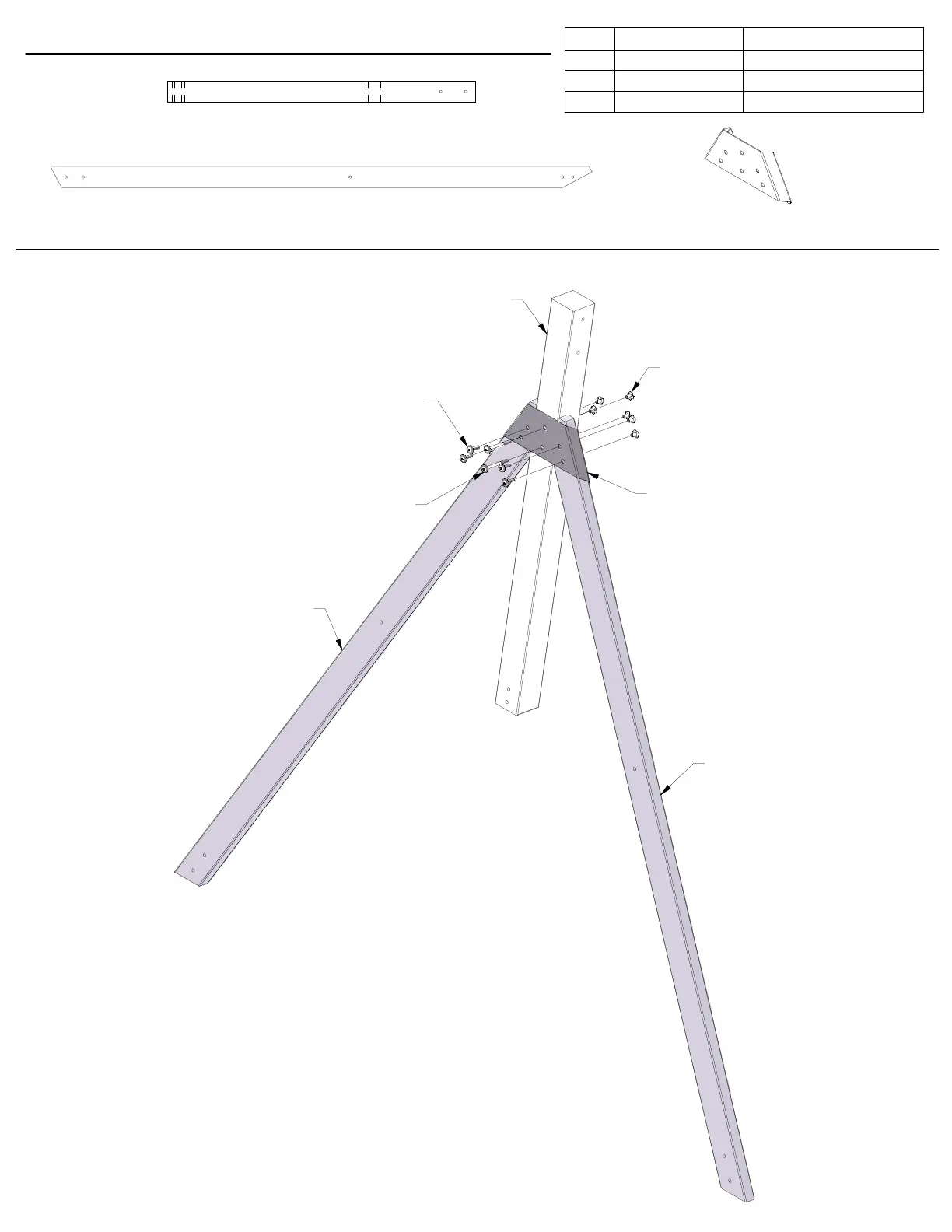

STEP 4 - SWING BEAM ASSEMBLY
SWING BEAM SUPPORT - W4L16168
3 3/8"x3 3/8"x49 1/2" (86x86x1256)
SP71
(x1)
QTY
PART NUMBER DESCRIPTION
4 H100009 BOLT WH 5/16x1 1/4
2
H100018
BOLT WH 5/16x3 1/2
6 H100074 T-NUT 5/16
A-FRAME
BRACKET
(x1)
A4M01169
TIP:
INST
ALL T-NUTS IN WOOD FIRST
E80 (x1)
SP71 (x1)
E80 (x1)
074 (x6)
T-NUT - 5/16"
009 (x4)
BOLT - 1 1/4"
018 (x2)
BOLT - 3 1/2"
169 (x1)
A-FRAME BRACKET
ANGLE BRACE - W4L16169
1 3/8"x3 3/8"x87 1/8" (36x86x2212)
E80
(x2)
