Backyard LIGHTNING RIDGE 2200159 User Manual

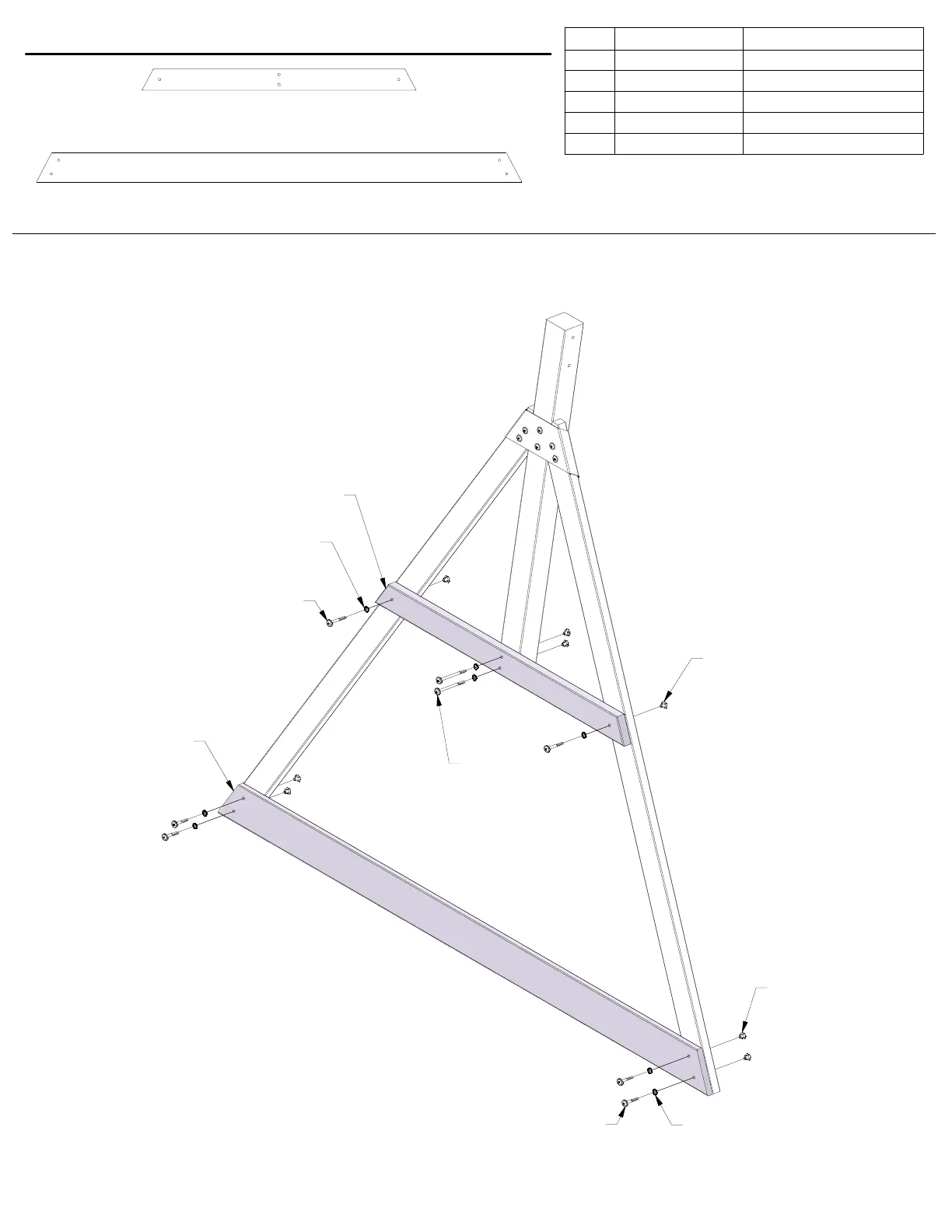

STEP 5 - SWING BEAM ASSEMBLY
END SUPPORT - W4L16170
1 1/2"x3 1/2"x44" (36x86x1120)
E79
(x1)
GROUND BOARD - W4L16171
1"x5 1/4"x86 11/16" (24x134x2202)
G50
(x1)
TIP:
INSTALL T-NUTS IN WOOD FIRST
QTY
PART NUMBER DESCRIPTION
4 H100013 BOLT WH 5/16x2 1/4
2
H100015
BOLT WH 5/16x2 3/4
8 H100030 WASHER LOCK EXT 8x19
8 H100074
T-NUT 5/16
2 H100505 BOLT WH 5/16x4 3/4
E79 (x1)
G50 (x1)
074 (x4)
T-NUT - 5/16"
074 (x4)
T-NUT - 5/16"
030 (x4)
WASHER - 8x19
013 (x4)
BOLT - 2 1/4"
030 (x4)
WASHER - 8x19
015 (x2)
BOLT - 5/16x2 3/4"
505 (x2)
BOLT - 5/16x4 3/4"
