Backyard LIGHTNING RIDGE 2200159 User Manual

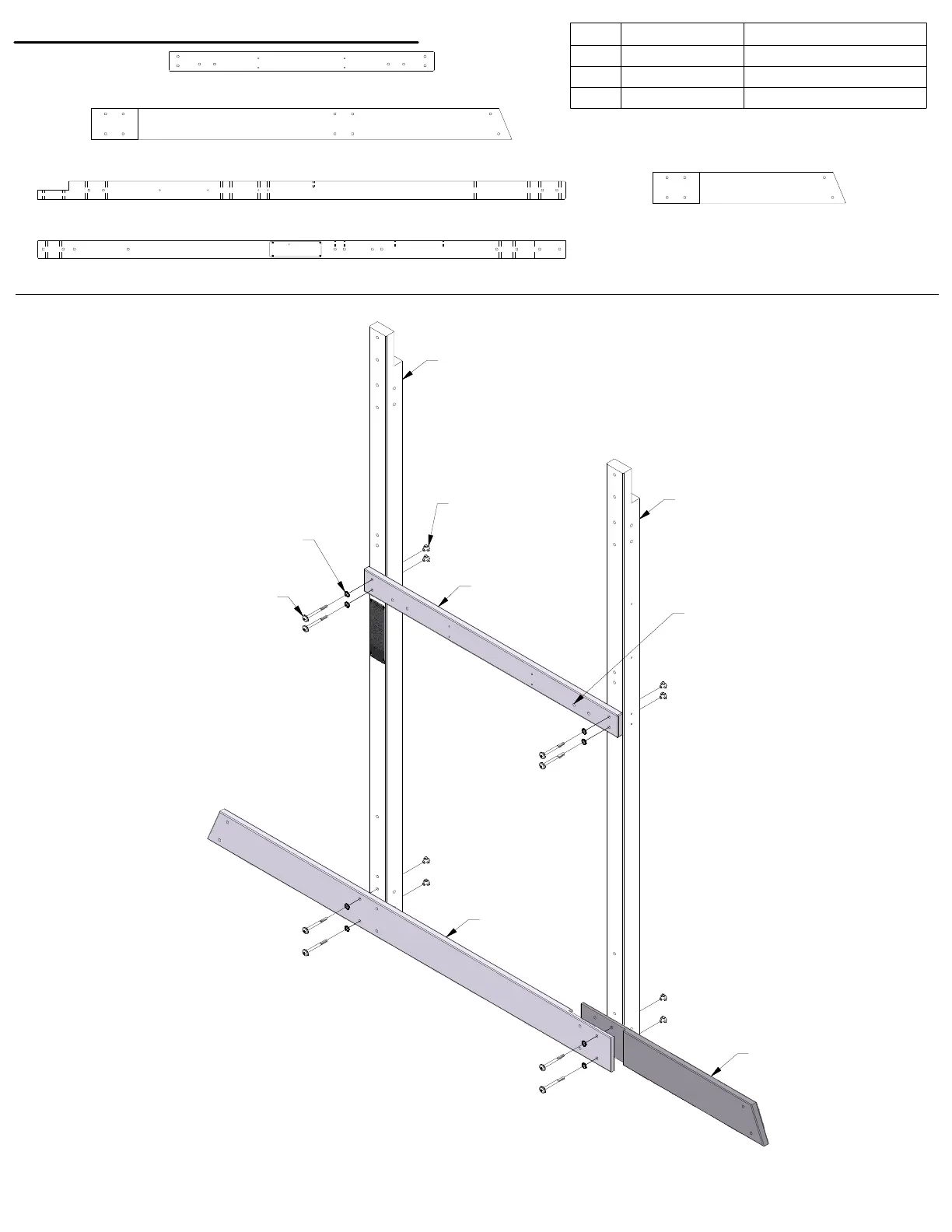

STEP 3 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
8 H100019 BOLT WH 5/16x3 3/4
8 H100030
WASHER LOCK EXT 8x19
8 H100074 T-NUT 5/16
TIP:
INSTALL T-NUTS IN WOOD FIRST
B02 (x1)
B04 (x1)
H02 (x1)
G03 (x1)
G07 (x1)
074 (x8)
T-NUT - 5/16"
019 (x8)
BOLT - 3 3/4"
030 (x8)
WASHER - 8x19
UPRIGHT - W4L16122
3"x3"x89 1/2" (76x76x2274)
B02
(x1)
B04
(x1)
UPRIGHT - W2A03406
3"x3"x89 1/2" (76x76x2274)
FLOOR RAIL - W4L16125
1"x3 3/8"x44 7/8" (24x86x1141)
H02
(x1)
GROUND RAIL - W4L16132
1"x5 1/4"x71 3/8" (24x134x1814)
G03
(x1)
GROUND RAIL - W4L16165
1"x5 1/4"x32 3/4" (24x134x832)
G07
(x1)
NOTE HOLE LOCATIONS
31
