Backyard LIGHTNING RIDGE 2200159 User Manual

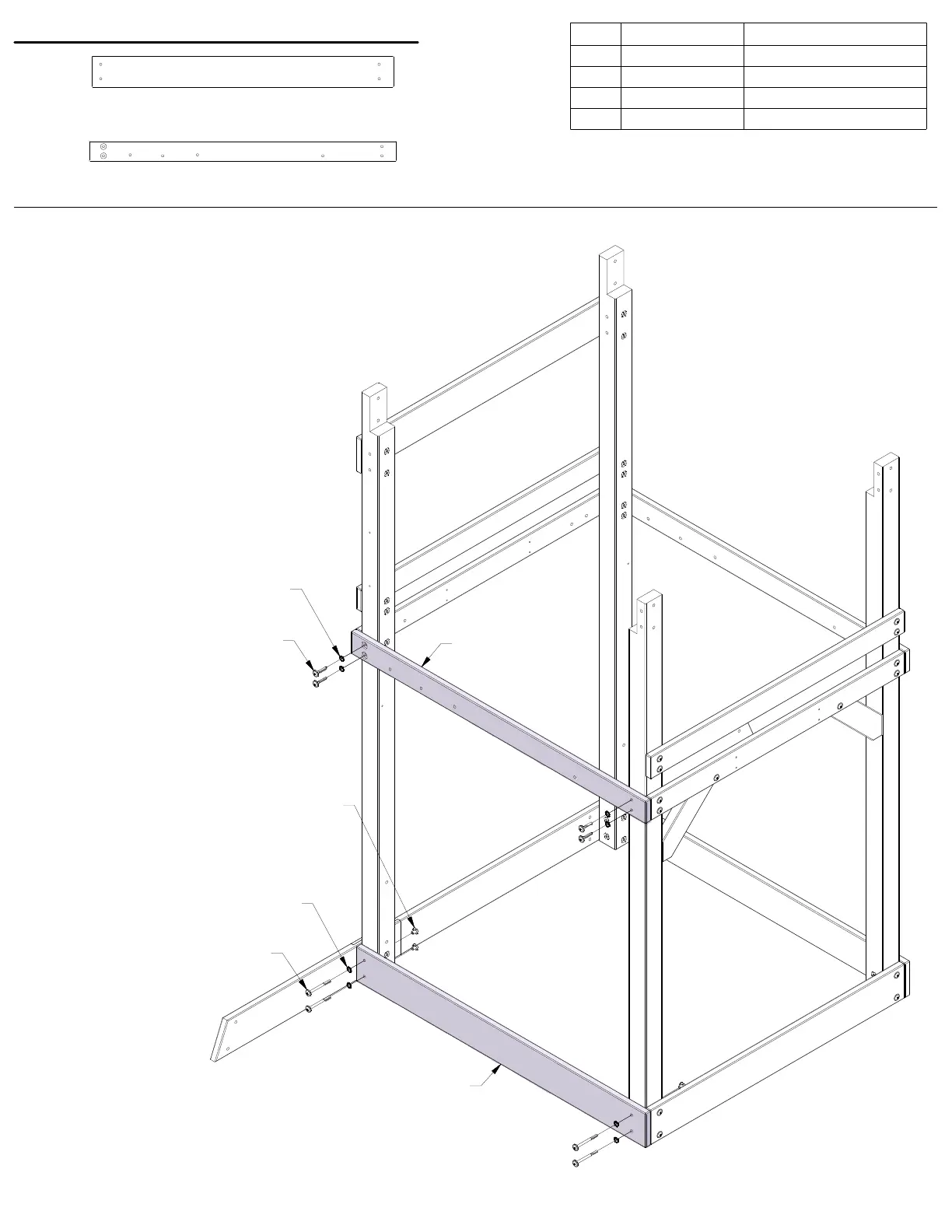

STEP 6 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
QTY
PART NUMBER DESCRIPTION
4 H100019 BOLT WH 5/16x3 3/4
4
H100027
LAG SCREW WH 5/16x2
8 H100030 WASHER LOCK EXT 8x19
4
H100074
T-NUT 5/16
G02 (x1)
H04 (x1)
074 (x4)
T-NUT - 5/16"
030 (x4)
WASHER - 8x19
019 (x4)
BOLT - 3 3/4"
030 (x4)
WASHER - 8x19
027 (x4)
LAG SCREW - 2"
FLOOR RAIL - W4L16135
1"x3 3/8"x52 1/8" (24x86x1324)
H04
(x1)
GROUND RAIL - W4L16129
1"x5 1/4"x51 1/8" (24x134x1300)
G02
(x1)
34
