Backyard LIGHTNING RIDGE 2200159 User Manual

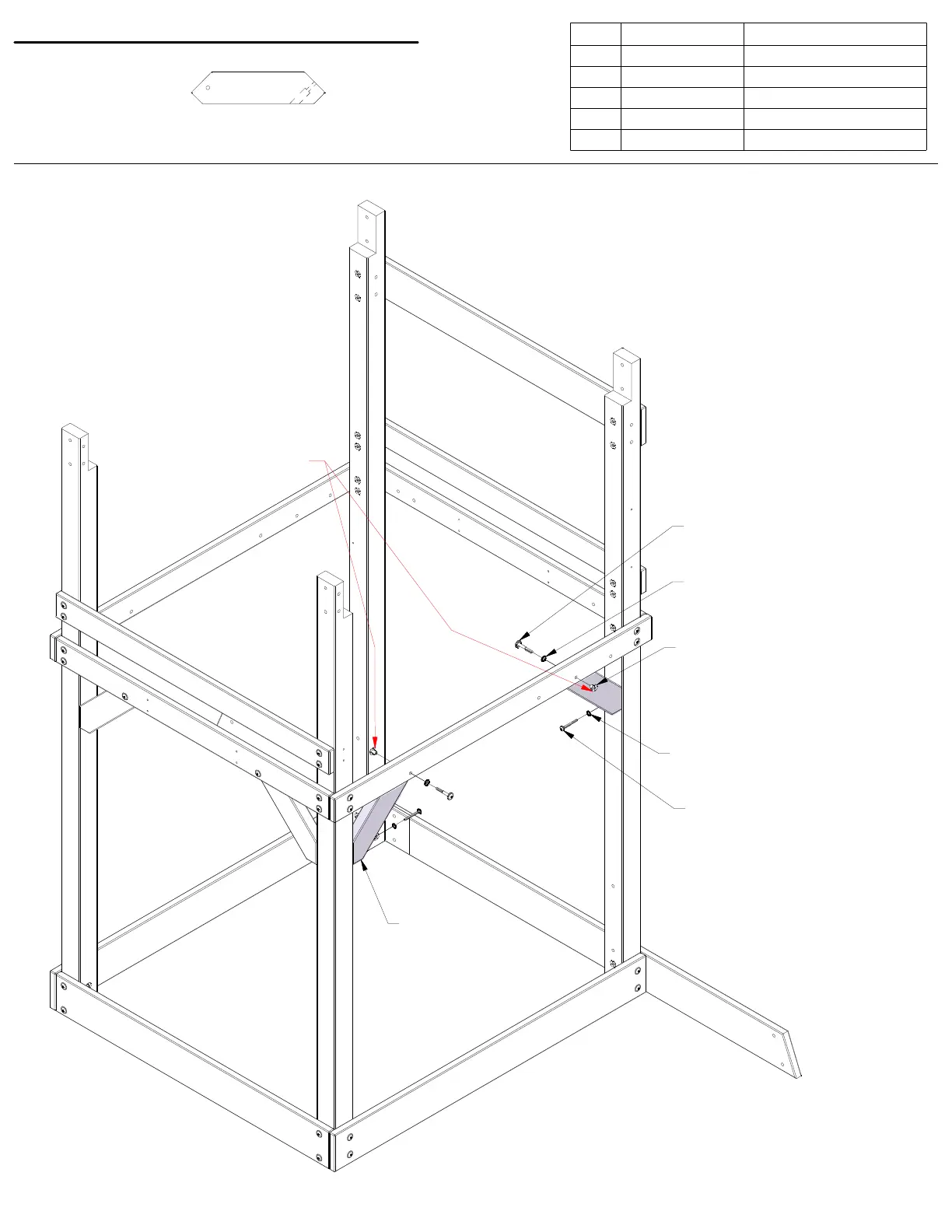

STEP 7 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
ANGLE BRACE - W4L16134
1 3/8"x3 3/8"x14 3/8" (36x86x365)
E02
(x2)
QTY
PART NUMBER DESCRIPTION
2
H100013 BOLT WH 5/16x2 1/4
2
H100030
WASHER LOCK EXT 8x19
2 H100074 T-NUT 5/16
2
H100138
WASHER LOCK EXT 6x15
2 H100649 LAG SCREW WH 1/4x2-1/2
138 (x2)
WASHER - 6x15
649 (x2)
LAG SCREW - 2 1/2"
074 (x2)
T-NUT - 5/16"
030 (x2)
WASHER - 8x19
013 (x2)
BOLT - 2 1/4"
E02 (x2)
NOTE T-NUT LOCATIONS
35
