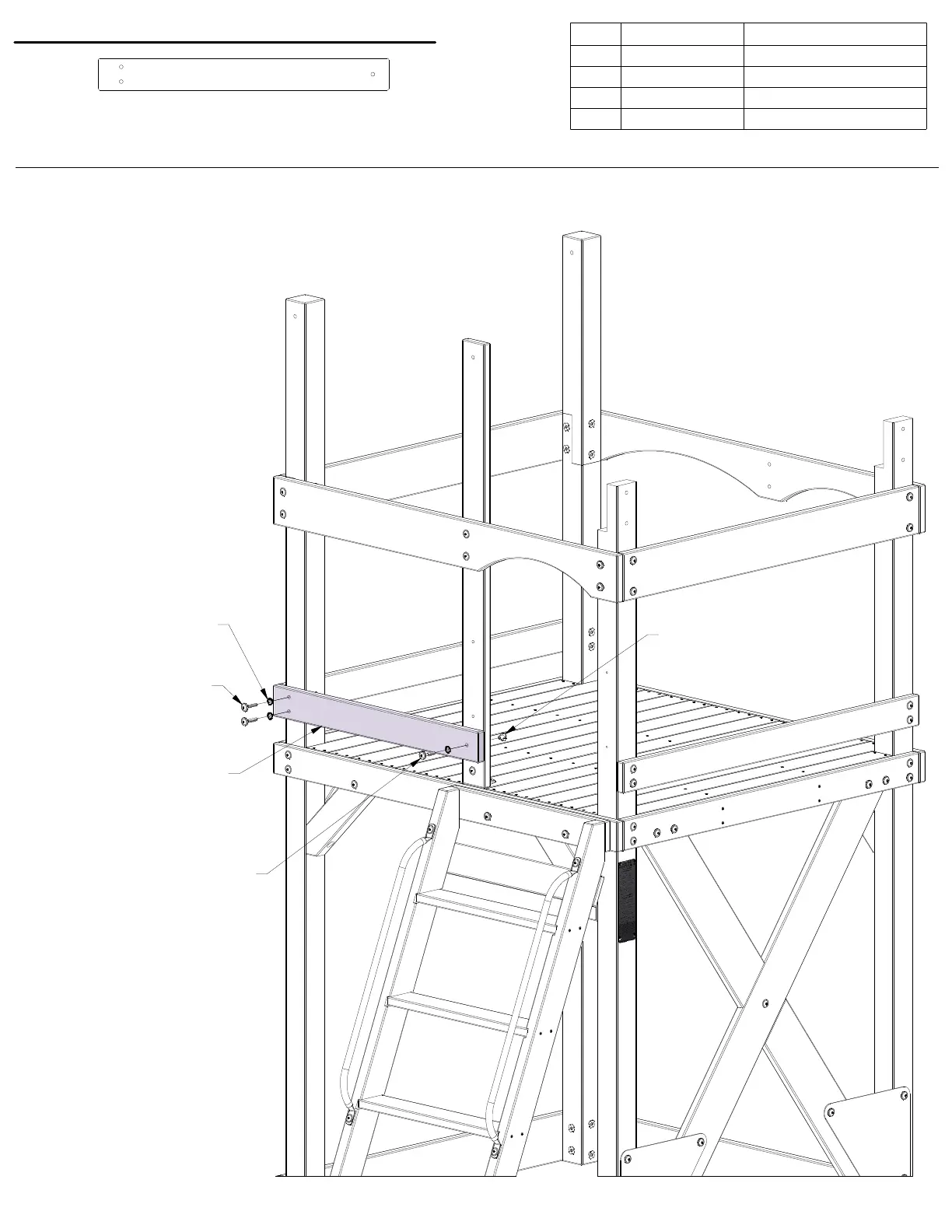

STEP 19 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
030 (x3)
WASHER - 8x19
027 (x2)
LAG SCREW - 2"
011 (x1)
BOLT - 1 3/4"
074 (x1)
T-NUT - 5/16"
H06 (x1)
QTY
PART NUMBER DESCRIPTION
1
H100011 BOLT WH 5/16x1 3/4
2
H100027
LAG SCREW WH 5/16x2
3 H100030 WASHER LOCK EXT 8x19
1
H100074
T-NUT 5/16
WALL RAIL - W4L16141
1"x3 3/8"x31 1/8" (24x86x790)
H06
(x1)
47
