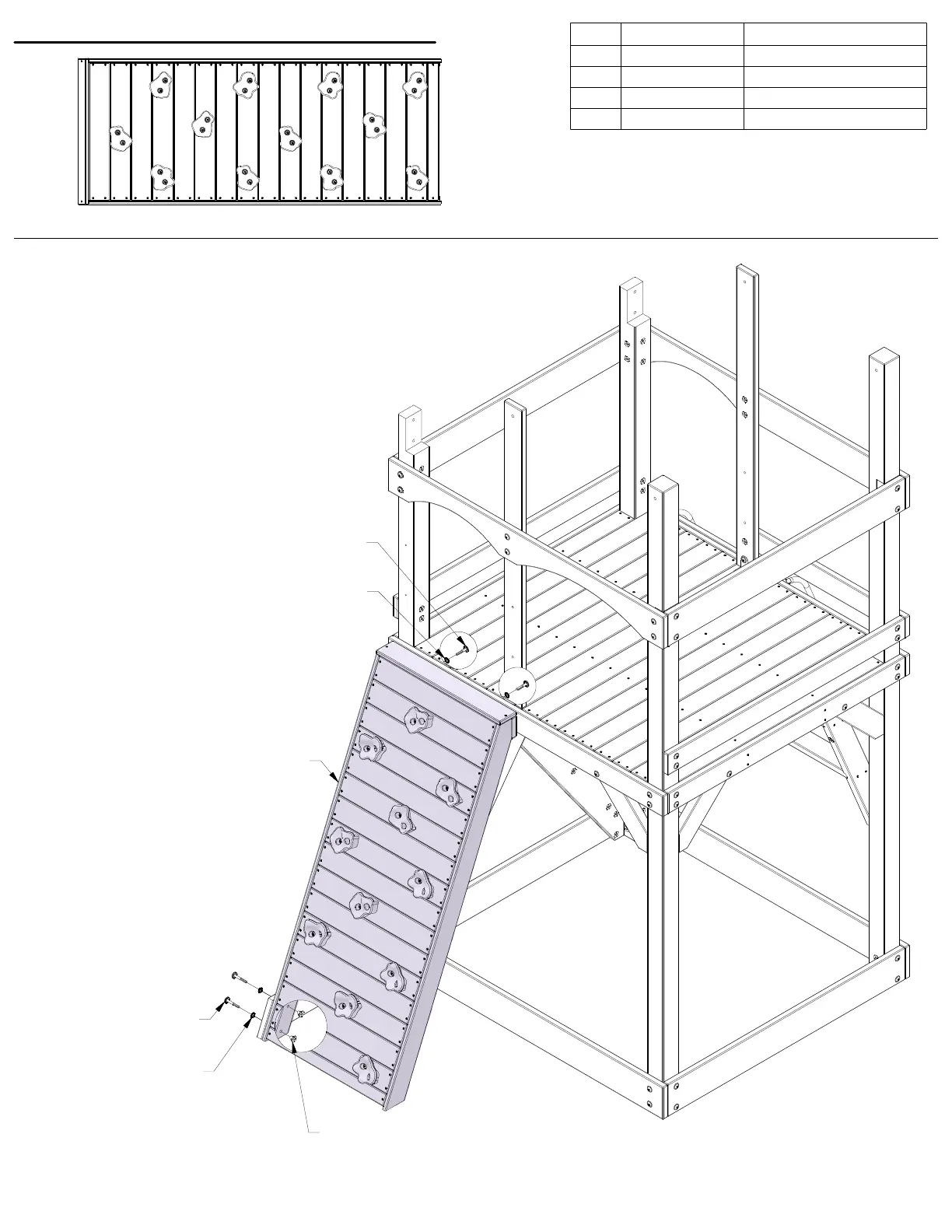

STEP 21 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
011 (x2)
BOLT - 1 3/4"
030 (x2)
WASHER - 8x19
074 (x2)
T-NUT - 5/16"
030 (x2)
WASHER - 8x19
013 (x2)
BOLT - 2 1/4"
ROCKW
ALL ASSEMBLY
QTY
PART NUMBER DESCRIPTION
2
H100011 BOLT WH 5/16x1 3/4
2
H100013
BOLT WH 5/16x2 1/4
4 H100030 WASHER LOCK EXT 8x19
2
H100074
T-NUT 5/16
ROCKWALL ASSEMBLY
