Backyard LIGHTNING RIDGE 2200159 - Page 50

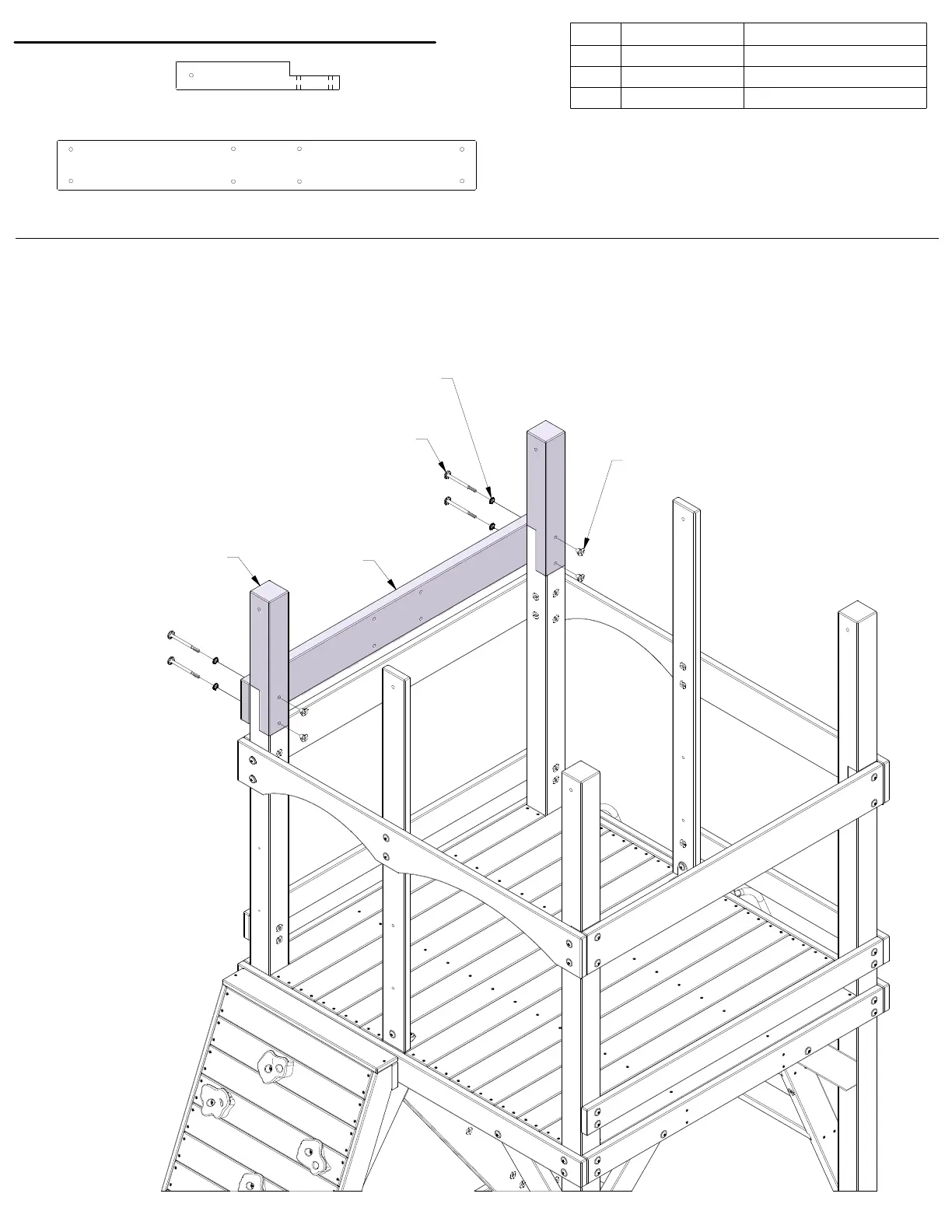

STEP 22 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100030 WASHER LOCK EXT 8x19
4
H100074
T-NUT 5/16
4 H100166 BOLT WH 5/16x4-1/4
TIP:
INSTALL T-NUTS IN WOOD FIRST
074 (x4)
T-NUT - 5/16"
D01 (x1)
B06 (x2)
030 (x4)
WASHER - 8x19
166 (x4)
BOLT - 4-1/4"
UPRIGHT - W4L16140
3"x3"x17 1/2" (76x76x445)
B06
(x2)
WALL RAIL - W4L16166
1 3/8"x5 1/4"x44 7/8" (36x134x1141)
D01
(x1)
50
