Backyard LIGHTNING RIDGE 2200159 User Manual

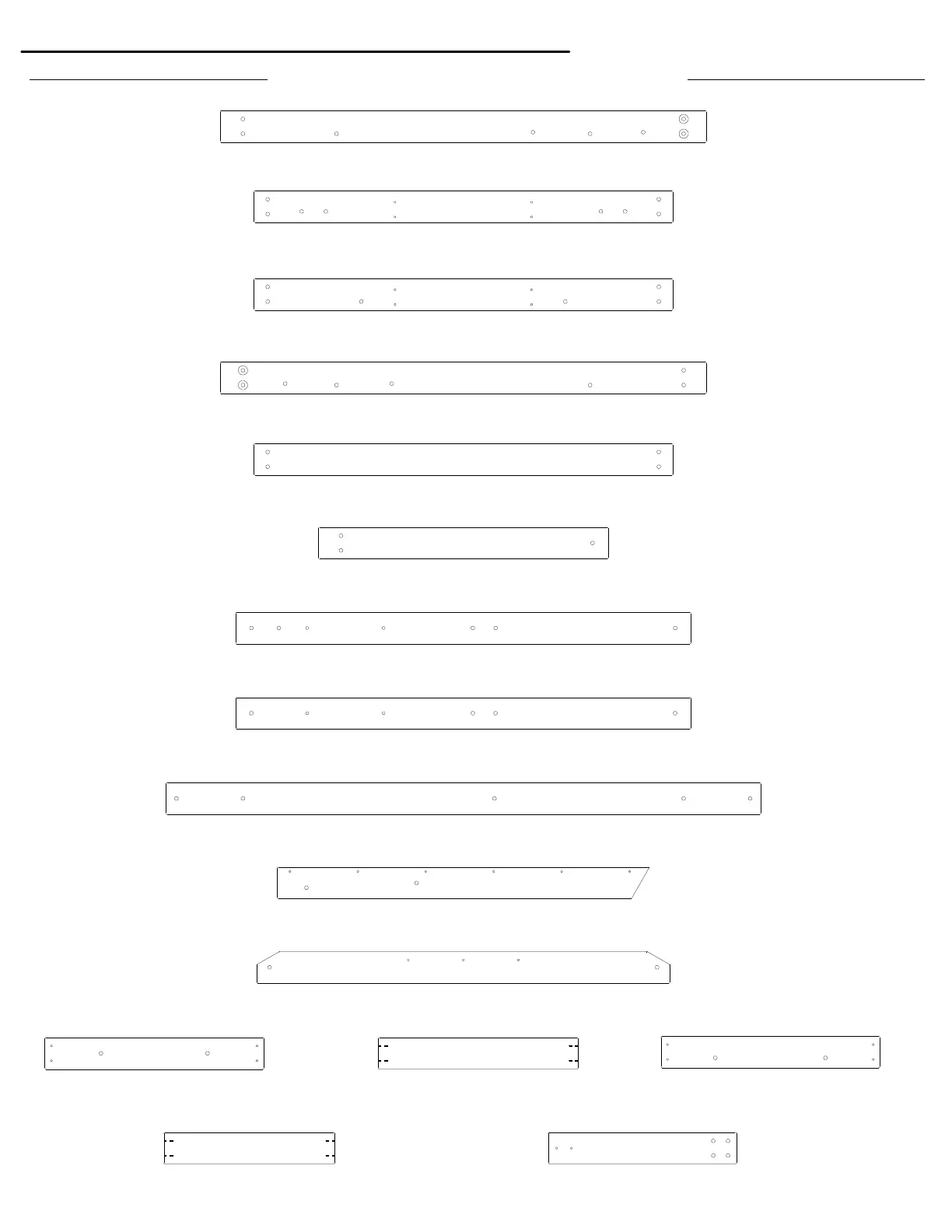

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
FLOOR RAIL - W4L16124
1"x3 3/8"x52 1/8" (24x86x1324)
H01
(x1)
FLOOR RAIL - W4L16125
1"x3 3/8"x44 7/8" (24x86x1141)
H02
(x1)
FLOOR RAIL - W4L16127
1"x3 3/8"x44 7/8" (24x86x1141)
H03
(x1)
FLOOR RAIL - W4L16135
1"x3 3/8"x52 1/8" (24x86x1324)
H04
(x1)
WALL UPRIGHT - W4L16138
1"x3 3/8"x48 7/8" (24x86x1240)
H07
(x1)
WALL UPRIGHT - W4L16142
1"x3 3/8"x48 7/8" (24x86x1240)
H08
(x1)
ROOF RAIL - W4L16147
1"x3 3/8"x39 7/8" (24x86x1014)
H10
(x4)
ATTACHMENT BOARD - W4L16159
1"x3 3/8"x23 1/2" (24x86x596)
H75
(x1)
LADDER RUNG - W4L16154
1"x3 3/8"x21 3/8" (24x86x544)
H76
(x4)
ATTACHMENT BOARD - W4L16155
1"x3 3/8"x23 1/2" (24x86x596)
H77
(x1)
WALL RAIL - W4L16141
1"x3 3/8"x31 1/8" (24x86x790)
H06
(x1)
WALL RAIL - W4L16137
1"x3 3/8"x44 7/8" (24x86x1141)
H05
(x2)
ROOF RAIL - W4L16145
1"x3 3/8"x63 3/4" (24x86x1620)
H09
(x2)
GABLE BOARD - W4L16148
1"x3 3/8"x44 1/4" (24x86x1125)
H11
(x2)
SLIDE BRACE WIDE - W4L15715
1"x3 3/8"x18 3/8" (24x86x466)
H80
(x1)
SLIDE BRACE - W4L13333
1"x3 3/8"x20 1/8" (24x86x512)
H83
(x2)
5
